Nauticam NZ2875-Z Zoom Gear Instruction Manual

For nikkor z 28-75mm f/2.8

Current as of 09/26/2022

INSTRUCTION MANUAL

For NZ2875-Z Zoom Gear for

Nikkor Z 28-75mm f/2.8

PN# 19162

FORWORD

Thank you for your purchase of a NAUTICAM

product.

At NAUTICAM, we pride ourselves in the ability to

recognize the requirements of professional as well

as amateur underwater photographers and fulfill

them through the innovative designs of our

products. We strive to achieve a high level of user-

friendliness by allowing stress-free installation and

easy operation of all important functions of the

camera.

Each product is individually inspected and water

pressure tested to ensure optimum quality.

Please read this manual carefully before using the

product, this will maximize its performance as well

as its lifetime.

Table of Contents

Do you have a question about the NZ2875-Z Zoom Gear and is the answer not in the manual?

Page 1 PN# 19162 FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
Page 2 NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.

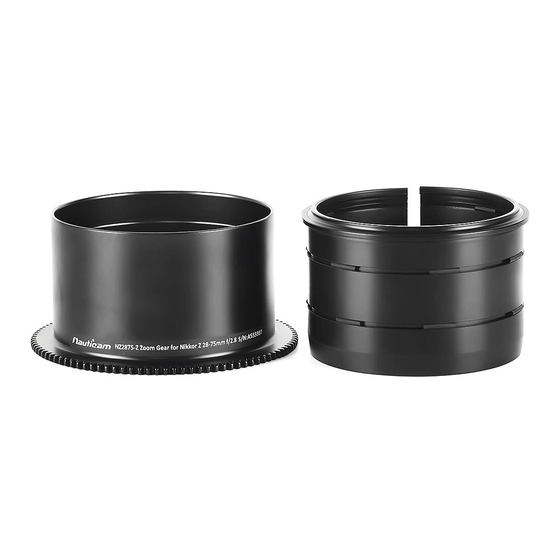

Page 3 IDENTIFICATION OF PARTS Plastic C-ring NZ2875-Z Zoom Gear Spare Rubber grips...
Page 4 MOUNT THE GEAR ON A LENS 1. Insert the plastic C-ring as shown and place it over the lens. 2 Insert the NZ2875-Z Zoom Gear on the plastic C-ring until it reaches the flange of the plastic C-ring. 3. To remove the NZ2875-Z Zoom Gear, reverse the above steps.
Page 5 CONTROL THE GEAR 1. The NZ2875-Z Zoom Gear can be controlled by zoom/focus knob of the housing. After mount the camera and lens (with gear installed) on the housing, confirm that the zoom/focus knob operates correctly.
Page 6 SPECIFICATIONS #19162 NZ2875-Z Zoom Gear for Nikkor Z 28- 75mm f/2.8 Dimensions: DIA101.9mm × 51.2mm Type: Zoom gear Compatible lens: Nikkor Z 28-75mm f/2.8 Remark: Nauticam supports only e-manuals. Please download corresponding product manuals on google drive https://bit.ly/Nauticammanual, or contact us for e-...
