- Page 1 184 · USB Transport data logger Instruction manual...
-
Page 3: Table Of Contents
1 Contents Contents Contents ....................3 Safety and the environment ..............4 2.1. About this document ................ 4 2.2. Ensure safety................... 4 2.3. Protecting the environment .............. 4 Specifications ..................5 3.1. Use ....................5 3.2. Technical data ................. 5 Product description ................ -
Page 4: Safety And The Environment
> At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. WEEE Reg. Nr. DE 75334352... -
Page 5: Specifications
3 Specifications Specifications 3.1. The testo 184 USB transport data loggers are used to save and read out individual readings and measurement series. They have been specifically designed for monitoring the transportation of products subject to cold chain requirements. Temperature and humidity readings are saved throughout the entire duration of the measurement program. - Page 6 35 x 9 x 75 mm Weight 25 g Directives, 2014/30/EU, EN 12830, HACCP-certified, standards, temperature calibration certificate traceable certificates according to ISO 17025 testo 184 T2 Feature Values Display Probe type internal NTC temperature sensor Measuremen 1 internal t channels Measuremen Temperature [°C, °F]...
- Page 7 40 x 12.5 x 96.5 mm Weight 45 g Directives, 2014/30/EU, EN 12830, HACCP-certified, standards, temperature calibration certificate traceable certificates according to ISO 17025 testo 184 T3 Feature Values Display Probe type internal NTC temperature sensor Measuremen 1 internal t channels Measuremen Temperature [°C, °F]...
- Page 8 40 x 12.5 x 96.5 mm Weight 45 g Directives, 2014/30/EU, EN 12830, HACCP-certified, standards, temperature calibration certificate traceable certificates according to ISO 17025 testo 184 T4 Feature Values Display Probe type Internal PT1000 temperature sensor Measuremen 1 internal t channels Measuremen Temperature [°C, °F]...
- Page 9 40 x 12.5 x 96.5 mm Weight 45 g Directives, 2014/30/EU, EN 12830, HACCP-certified, standards, temperature calibration certificate traceable certificates according to ISO 17025 testo 184 H1 Feature Values Display Probe type internal digital humidity/temperature sensor Measuremen 2 internal t channels Measuremen temperature [°C, °F], relative humidity [%]...
- Page 10 Dimensions 40 x 12.5 x 96.5 mm Weight 45 g Directives, 2014/30/EU, HACCP-certified standards, certificates Feature Values Display testo 184 G1 Feature Values Display Probe type internal digital humidity/temperature sensor & internal 3-axis accelerometer Measuremen 5 internal t channels Measuremen temperature [°C, °F], relative humidity [%],...
- Page 11 3 Specifications Feature Values Accuracy ±0.5 K (0.0 to 70 °C), ±0.8 K (-20 to -0.1 °C) ±1,8 % RH, +3 % of the reading (at 25 °C, 5 % to 80 % RH) ±0,03 % RH (at 0 to 60 °C) ±1 %RH hysteresis ±1 %RH/year drift ±1,1,1 m/s²...
- Page 12 +25 °C +/- 5 °C and a relative humidity of 50 % +/- 10 %. EU conformity The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. EU countries: Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia...
-
Page 13: Product Description
4 Product description Product description 4.1. Status LEDs To increase the battery life, the status LEDs are not permanently illuminated. They flash once every 5 seconds. In hibernation mode, the status LEDs are disabled. Alarm Feature LED colour No alarm green Alarm Battery... -

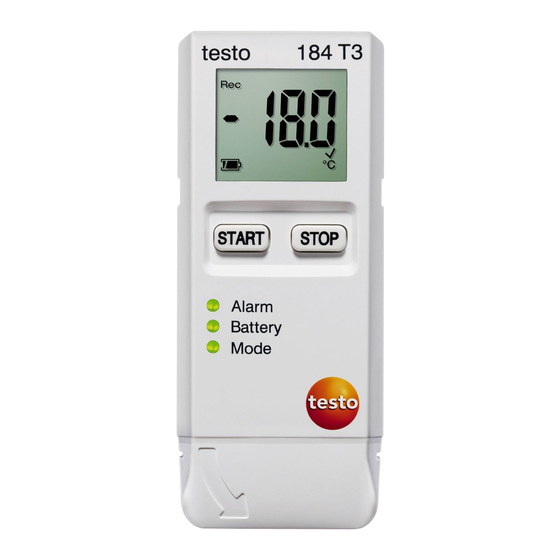

Page 14: Display (Lcd)
4 Product description 4.2. Display (LCD) Not available for all product versions. 1 Measurement program running 2 Measurement program finished 3 Wait for start of measurement program 4 Highest saved reading 5 Lowest saved reading 6 Reading 7 Status information: start criterion Date/time programmed/time mark, measurement axes for acceleration measurement,... -
Page 15: Key Functions
4 Product description charged batteries in order to avoid a reset of the instrument at low temperatures. 4.3. Key functions Commissioning The data loggers are delivered in hibernation mode to prolong the battery life. In this mode, the status LEDs and the display are disabled. -
Page 16: Important Information And Glossary Of Terms
4 Product description Display T2 T3 H1 G1 Maximum acceleration reading , X axis (Max, x, g) Maximum acceleration reading, Y axis (Max, y, g) Maximum acceleration reading, Z axis (Max, z, g) Time mark ( ) Battery life in days ( STOP key ✓... - Page 17 4 Product description Time mark: time marks can be set for documentation by • START pressing the key for 3 seconds during the measurement, e.g. when responsibility is switched to another institution. A maximum of 10 time marks can be set. Setting a time mark resets the values Min, Max, MKT and alarms.
- Page 18 4 Product description Cumulative alarm (only for temperature and humidity • measurement): an alarm is not triggered when the set limit value is first exceeded, but only once the overall duration, during which limit values are exceeded, exceeds the set waiting period (allowed time).
-
Page 19: Using The Product
A window opens for exporting form data. 6. Select the data logger as the storage location (Drive TESTO 184) and export the configuration data by clicking on the Save button. The configuration is stored on the data logger as an XML file. - Page 20 Configuring several data loggers with the same settings > Configure your measurement protocol using the configuration PDF or import an existing XML file. > Connect the testo 184 USB transport data logger to a USB connection. > Click to save the configuration on the connected testo 184 USB transport data logger.
-
Page 21: Measuring
In order to ensure conformity of the testo Comfort Software 21 CFR Part 11 and the testo Saveris CFR Software, configuration via the PDF file is no longer possible once the testo 184 USB transport data logger has been configured using the above- mentioned software. - Page 22 Saveris CFR Software including transport add-ons is required (accessory). Please consult the relevant software instruction manual for this. The shock values of the testo 184 G1 data logger are not available as separately readable data. The shock values are only shown in the graphic.
-
Page 23: Maintaining The Product
The saved measurement data and generated PDF reports, however, remain permanently stored. An interruption of the power supply leads to the testo 184 USB transport data logger's time settings being reset. In order to reinstate the correct time setting, configuration must be carried out via the PDF file, the Comfort Software or the testo Saveris 184 config tool. -
Page 24: Cleaning The Instrument
7. Reconfigure the data logger, see the section Configuring the data logger. For verification of battery performance, we only used batteries from EVE and Panasonic. This is why we recommend using batteries from these manufacturers in our testo 184 product. 6.2. Cleaning the instrument CAUTION Damage to the sensor! >... -
Page 25: Tips And Assistance
21 CFR Part 11 for the configuration, configuration via the PDF file is disabled. The size of the PDF Copy the PDF file of another testo 184 configuration file is 0 kB or USB transport data logger or the file is damaged. - Page 26 > Please check whether the correct data logger mode is selected. > Please check whether the testo 184 USB transport data logger was configured via the Comfort Software 21 CFR Part 11. This prevents configuration via the PDF file.
- Page 27 The humidity sensor is regenerated within 48 hours via storage at 50 %RH ±10 % and 20 °C ±5 °C. easurement protocol - Connect the testo 184 data logger to cannot be opened or the PC. shows 0 KB. - Open the Explorer - Right-click on the logger and then on "Format".
- Page 28 7 Tips and assistance If you have any questions please contact your local dealer or the Testo Customer Service. Contact details can be found on the internet: www.testo.com/service-contact...
- Page 30 Testo SE & Co. KGaA Celsiusstraße 2 79822 Titisee-Neustadt Germany Telefon: +49 7653 681-0 E-Mail: info@testo.de Internet: www.testo.com 0970 1842 en 0813 – 11.2022...
