Summary of Contents for TESTO 160 Series

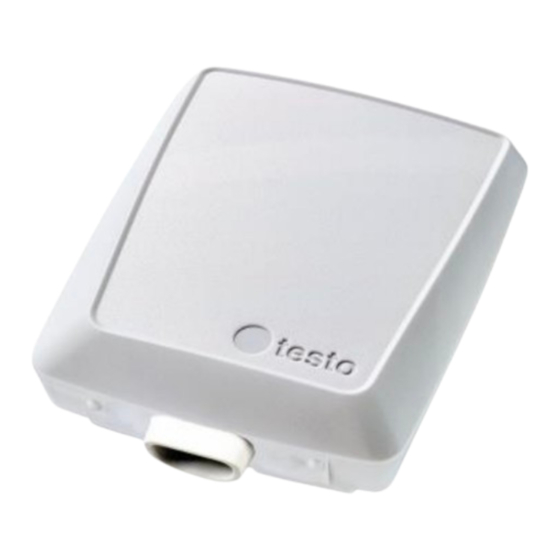

- Page 1 160 Online data loggers 0572 2019 – testo 160 T 0572 2021 – testo 160 TH 0572 2022 – testo 160 E User manual...
-
Page 2: Table Of Contents
Integrating data loggers into testo Account .......... 15 5.3.1 Commissioning via testo Smart App ............. 15 5.3.2 Commissioning via testo Saveris Cloud (via USB cable) ..... 15 5.3.3 Offline configuration via PDF (via USB-cable) ........16 License ....................17 Configuration and operation of online-data loggers ......17 Using the product ................ - Page 3 Contents External probes ..................23 Deco-covers..................24 Tips and assistance ................25 Questions and answers ............... 25 Status LED signals ................27...
-
Page 4: About This Document
Do not store the product together with solvents. • Do not use any desiccants. • Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. - Page 5 2 Safety and disposal Batteries • Improper use of batteries may cause the batteries to be destroyed, or lead to injury due to current surges, fire or escaping chemicals. • Only use the batteries supplied in accordance with the instructions in the instruction manual.
-
Page 6: Disposal
The testo 160 online data loggers record measurement values (temperature and humidity, lux and UV) and send them directly to the testo Saveris Cloud via a WLAN connection. The humidity sensor testo 160 TH may not be used in dust environment... -
Page 7: Product Description
UV can also be measured. The testo 160 online data logger system consists of the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart App. The testo Saveris Cloud is the central data platform. Measurement values can be viewed and analyzed there. -
Page 8: Testo Account
Each data logger operated there requires a testo Data Monitoring license. Online data loggers 4.3.1 testo 160 T You can use the testo 160 T online data logger to carry out temperature measurements. Element Element 1 Status LED... -
Page 9: Testo 160 Th
4 Product description 4.3.2 testo 160 TH You can use the testo 160 TH data logger to carry out temperature and humidity measurements. Element Element 1 Status LED 2 Button 3 Internal sensors for temperature 4 Micro USB port and relative humidity... -
Page 10: Testo 160 E
4 Product description 4.3.3 testo 160 E The external probes S-TH, S-LuxUV and S-Lux can be connected to the testo 160 E testo 160 E online data logger. Element Element 1 Status LED 2 Button 3 Connector socket for external sensor... -
Page 11: External Probes
S-TH The external probe S-TH can be connected to the online data logger testo 160 E. You can use the S-TH probe to carry out temperature and humidity measurements. To make it easy to install, the probe can be pushed out of the wall bushing. -
Page 12: S-Luxuv
4 Product description 4.4.2 S-LuxUV The external probe S-LuxUV can be connected to the online data logger testo 160 E. You can use the S-LuxUV probe to carry out illuminance and UV measurements. Element Element 1 Lux sensor 2 UV sensor... -
Page 13: S-Lux
Since these are digital probes, multiple extension cables can also be combined. The maximum total length is approx. 10 m. Deco-covers The optional cover 0554 2006 is intended for the testo 160 TH and testo 160 E online data loggers. -
Page 14: First Steps
Bluetooth® 4.2.2. Putting the data logger into operation The external probes must be connected to the testo 160 E online data logger before logging on to the cloud for the first time. If an additional probe is to be connected later, the online data logger must first be logged out of the cloud. - Page 15 Connect the sensor to the intended location. Optional mains operation The testo 160 online data loggers can also be powered via the USB port instead of being run on batteries. However, the online data loggers do not have a charging function, i.e. no rechargeable batteries in the online data logger can be charged up via the USB port.
-
Page 16: Integrating Data Loggers Into Testo Account
• Commissioning via testo Smart App (via WLAN hotspot) • Commissioning via desktop computer and testo Saveris Cloud (via USB cable) • Offline commissioning via PDF (via USB cable) In networks with WPA2 Enterprise encryption, commissioning via the testo Smart App is not possible. -
Page 17: Offline Configuration Via Pdf (Via Usb-Cable)
You will find the Account ID in the testo Account Information. The testo 160 online data loggers can be configured for up to three WLAN networks. Network name (SSID), password and security settings can be stored for each profile. -
Page 18: License
Configuration and operation of online- data loggers The testo 160, testo 162 and testo 164 online data loggers can only be used and operated in conjunction with the testo Saveris Cloud. Information on operating the data loggers (configuration, limit values, alarms,... -
Page 19: Using The Product
6 Using the product 6 Using the product Inserting into/removing from the wall bracket Insert the unlocking tool into the unlocking opening. Push back the locking pin using the unlocking tool. Pull the data logger up and out of the wall bracket. -
Page 20: Deco-Cover Installation
Wall bracket installation The wall bracket supplied, which comes with an adhesive pad, is only intended for testo 160 loggers and ensures that the loggers stay securely in place. Any other use is not deemed appropriate and may result in the wall bracket being damaged. -
Page 21: Maintaining The Product
For testo 160 T: Loosen the battery cover by slightly loosening the screws on the back of the housing. For testo 160 TH and testo 160 E: Open the battery compartment cover. Change batteries. Pay attention to polarity. -
Page 22: Technical Data
3% RH. After 48 hours at 50% RH ± 10 % and +20 °C ± 5 °C, the sensor regenerates by itself. Online data testo 160 T testo 160 TH testo 160 E loggers... - Page 23 The online data loggers come with a factory calibration protocol as standard. For many application areas it is recommend to do a re-calibration every 12 months. General data Online data testo 160 T testo 160 TH testo 160 E loggers...
-
Page 24: External Probes
8 Technical data Ports The testo 160 online data loggers use the MQTT protocol, which communicates via port TCP 1883 and 8883. These UDP port approvals are also required: • Port 53 (DNS name resolution) • Port 123 (NTP time synchronisation) All ports only have to be able to communicate externally to the Cloud. -
Page 25: Deco-Covers
28 x 56 x 15 mm 28 x 56 x 15 mm Weight 13 g 15 g 13 g Deco-covers General data Cover Order number 0554 2006 testo 160 TH / testo 160 E Dimensions 82 x 69 x 23 mm Weight 22 g... -
Page 26: Tips And Assistance
• Can the online data logger also be used in networks with WPA2 Enterprise encryption? testo 160 data loggers can be used in networks with the following WPA2 Enterprise encryption methods. WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP- TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK,... - Page 27 The CO sensor is a precision optical measuring device. Vibrations and shocks may have changed the factory calibration. Recalibration can be carried out by Testo Industrial Services (TIS) or other certified service providers. • The calibration of the humidity sensor has failed. What can I do? When calibrating humidity sensors, ensure sufficiently long adjustment times and sufficient air circulation.
-
Page 28: Status Led Signals
9 Tips and assistance Status LED signals The following table provides an overview of the meaning of the various status LED signals of the testo 160 WiFi data logger. Signal Description LED does not flash Sleep mode LED flashes green at one-second... - Page 29 Testo SE & Co. KGaA Celsiusstraße 2 79822 Titisee-Neustadt Germany Telefon: +49 7653 681-0 E-Mail: info@testo.de Internet: www.testo.com 0970 1602 en 01 – 01.2025...
