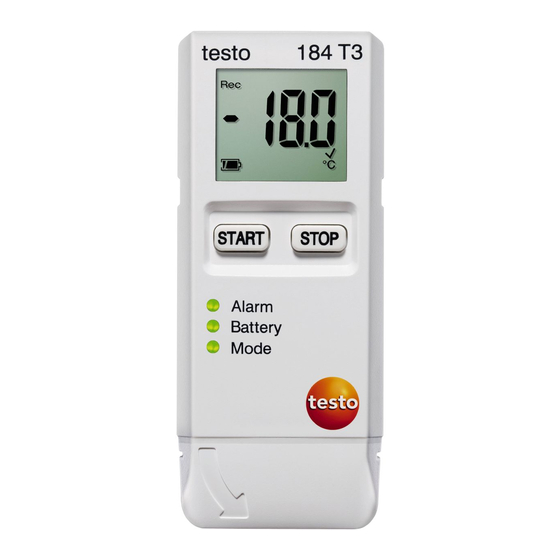

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com testo 184 · Data logger Instruction manual...
-
Page 2: Ensure Safety
> Dispose of faulty rechargeable batteries/spent batteries in accordance with the valid legal specifications. > At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. -
Page 3: Specifications
2 Specifications Specifications 2.1. The testo 184 data loggers are used to save and read out individual readings and measurement series. They have been specifically designed for monitoring the transportation of products subject to cold chain requirements. Temperature and humidity readings are saved throughout the entire duration of the measurement program. - Page 4 ISO 17025 Warranty/guar T1, T2: 12-month warranty from the production antee date, production date: see circled date code (MMDD) on the identification plate. T3, T4: 24-month warranty, warranty terms: see website www.testo.com/warranty testo 184 H1, G1 Feature Values Display...
- Page 5 2 Specifications Feature Values Probe type H1: internal digital humidity sensor G1: internal 3-axis accelerometer Measurement H1: 2 internal channels G1: 5 internal Measurement H1: temperature [°C, °F], relative humidity [%] parameters G1: temperature [°C, °F], relative humidity [%], [unit] acceleration [g, m/s²] Measuring -20 to 70 °C...
-
Page 6: Product Description
Directives, 2004/108/EC, HACCP-certified standards, certificates Warranty 24 months, warranty conditions: see website www.testo.com/warranty Product description 3.1. Status LEDs To increase the battery life, the status LEDs are not permanently illuminated. They flash once every 5 seconds. In hibernation mode, the status LEDs are disabled. -
Page 7: Display (Lcd)
3 Product description Mode Feature LED colour WAIT mode (wait for program start) green and red mode (measurement program running) green mode (measurement program finished) 3.2. Display (LCD) Not available for all product versions. 1 Measurement program running 2 Measurement program finished 3 Wait for start of measurement program 4 Highest saved reading 5 Lowest saved reading... -
Page 8: Key Functions
3 Product description For technical reasons, the display speed of liquid crystal displays becomes slower at temperatures below 0 °C (approx. 2 seconds at -10 °C, approx. 6 seconds at -20 °C). This has no influence on the measuring accuracy. 3.3. - Page 9 3 Product description Display T2 T3 H1 G1 Maximum acceleration reading , X axis (Max, x, g) Maximum acceleration reading, Y axis (Max, y, g) Maximum acceleration reading, Z axis (Max, z, g) Time mark ( ) Battery life in days ( STOP key ✓...
- Page 10 3 Product description • Time mark: time marks can be set for the documentation, e.g. when responsibility is transferred to another institution. A maximum of 10 time marks can be set. Setting a time mark resets the statistical values Min, and MKT.
-
Page 11: Using The Product
The XML file can be used as a template for other data loggers (via copy/paste in the file explorer). 7. Close file. A message Do you want to save the changes to “testo 184 configuration.pdf” before closing? may appear. Answer this question with No. - Page 12 Alternatively, the data logger can also be configured using testo Comfort Software Professional (version 4.3 service pack 2 or later) or testo Comfort Software CFR (version 4.3 service pack 2 or later). Please consult the relevant software instruction manual. 4.2.
-
Page 13: Reading Out Data
To carry out detailed analysis or to further process readings, the software testo Comfort Software Professional (version 4.3 service pack 2 or later) or testo Comfort Software CFR (version 4.3 service pack 2 of later) is required (accessory). Please consult the relevant software instruction manual. -
Page 14: Maintaining The Product
5 Maintaining the product • You do not need any additional software to transfer data to a compatible Testo report printer. • To transfer data, the data logger must be placed on the NFC transmitter of the target device. •... -
Page 15: Tips And Assistance
6 Tips and assistance 5.2. Cleaning the instrument CAUTION Damage to the sensor! > Ensure that no liquid enters the inside of the housing. > If the housing of the instrument is dirty, clean it with a damp cloth. Do not use any aggressive cleaning agents or solvents! Weak household cleaning agents or soap suds can be used.
