- Page 1 191 data logger Instruction manual...
-
Page 3: Table Of Contents
1.6 Disposal ....................8 2 Description of the instrument ............... 9 2.1 Use ......................9 2.2 testo 191 data logger variants .............. 10 2.3 testo 191 data logger overview ............10 2.4 Power supply ..................11 2.5 Programming and readout unit ............11 2.6 testo 191 Professional software ............ - Page 4 Contents 6.4 testo 191 T4 ..................27 6.5 testo 191 P1 ..................28 6.6 Large battery ..................29 6.7 Small battery..................29 6.8 Accessories and spare parts ............... 30...
-
Page 5: Safety And Disposal
1 Safety and disposal 1 Safety and disposal 1.1 About this document • The instruction manual is an integral part of the instrument. • Keep this documentation to hand so that you can refer to it when necessary. • Always use the complete original instruction manual. •... - Page 6 1 Safety and disposal • Use only original spare parts from Testo. Batteries • Improper use of batteries may cause destruction of the batteries, injuries due to current surges, fire or the escape of chemicals. • Only use the battery supplied in accordance with the instructions in the instruction manual.
-
Page 7: Warning Notices
1 Safety and disposal Appropriate measures against short circuits are for instance inserting the batteries into the original packaging or a plastic bag, masking the poles or embedding them in dry sand. • Lithium batteries must be transported and shipped in accordance with the local and country-specific regulations. -
Page 8: Symbols
Elements of the program interface [OK] Buttons of the program interface 1.5 Transport • Always transport and store the data loggers and accessories in the Testo cases. 1.6 Disposal • Dispose of faulty and/or spent batteries in accordance with the valid legal specifications. -
Page 9: Description Of The Instrument
Application examples The testo 191 T1, testo 191 T2, testo 191 T3, testo 191 T4 and testo 191 P1 data loggers are ideal for measuring temperature and pressure in order to validate pasteurization and sterilization processes in autoclaves, containers and freeze-drying systems. -
Page 10: Testo 191 Data Logger Variants

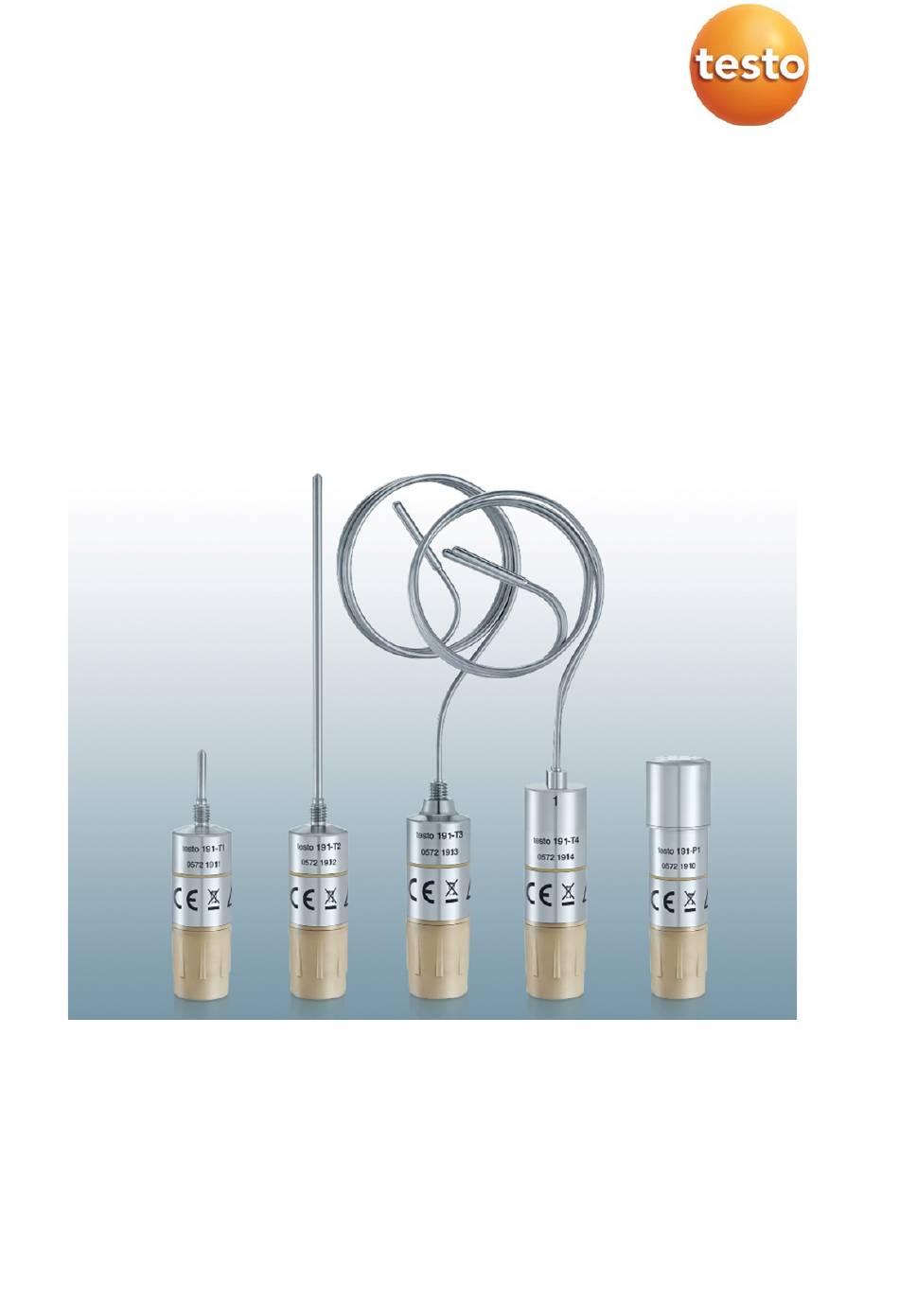

2 Description of the instrument 2.2 testo 191 data logger variants 1 testo 191 T1 2 testo 191 T2 3 testo 191 T3 4 testo 191 T4 5 testo 191 P1 2.3 testo 191 data logger overview 1 Probe shaft tip... -
Page 11: Power Supply
2 Description of the instrument The testo 191 T4 and testo 191 P1 data loggers have no thread. For the probe shaft dimensions of the testo 191 data loggers, please refer to the technical data in Section 6, Technical data. -
Page 12: Testo 191 Professional Software
2.6 testo 191 Professional software The testo 191 Professional software can be used to program the testo 191 data loggers via the programming and readout unit (e.g. measuring cycle, measurement start, measurement stop, etc.) and read them. It also offers calculation and analysis options for the measurement data acquired. -
Page 13: Commissioning
3 Commissioning 3 Commissioning 3.1 Installing the battery The testo 191 data loggers are supplied with a large battery as standard. The data logger can therefore be used in the temperature range from -50 °C to +140 °C. The small battery, which can be used in the temperature range from - 20 °C to +140 °C, can be purchased as an accessory. -
Page 14: Positioning The Distance Adapter In The Programming And Readout Unit
The data loggers are supplied with the appropriate distance adapters. The testo 191 P1 data logger does not have a distance adapter and can be placed in the programming and readout unit without using one. Insert the distance adapter into the socket first. -
Page 15: Positioning The Data Logger In The Programming And Readout Unit
3.3 Positioning the data logger in the programming and readout unit The testo 191 data loggers are supplied with the appropriate distance adapter for the programming and readout unit. A battery must be connected to the data logger for positioning in the station Battery is connected ... -
Page 16: Connecting The Programming And Readout Unit To The Pc Via Usb
PC via USB Please ensure that the case is securely positioned so that the case lid cannot fall onto the cable. The computer is started up and the testo 191 Professional software is enabled. The battery is connected to the data logger and is functional. -
Page 17: Operation
4 Operation 4.1 Bending flexible probe shafts The testo 191 T3 and testo 191 T4 data loggers have flexible probe shafts. The testo 191 T1 and testo 191 T2 data loggers are equipped with rigid probe shafts, which must not be bent. -
Page 18: Changing The Battery
Stored data is retained when the battery is replaced or if the battery fails. Connect new battery, see Section 3.1, Installing the battery. The battery replacement must be confirmed in the testo 191 Professional software. This can be done under the menu item Programming of loggers. -
Page 19: Aligning The Can Stand
4.4 Aligning the can stand The can stand enables the testo 191 T1 data logger to be positioned in cans in a way that is stable and safe. Depending on the size of the can, the can stand... -
Page 20: Installing The Can And Bottle Attachment
191 T1 data logger more stable. 4.5 Installing the can and bottle attachment Used in conjunction with the testo 191 T2 data logger, the can and bottle attachment enables the core temperature of food in cans and bottles to be... - Page 21 4 Operation No additional tools are required to install the can and bottle attachment on cans or bottles. Lightly press the can and bottle attachment onto the insertion position on the can or bottle. The retaining thread penetrates through the top of the can or bottle via a light tap on the can and bottle attachment head.
-
Page 22: Mounting The Retaining Clamp
4.6 Mounting the retaining clamp The testo 191 T1, testo 191 T2 and testo 191 T3 data loggers have a thread on the probe shaft, which is intended for attaching the retaining clamp. The data logger can therefore be attached in systems or loading baskets without the use... - Page 23 4 Operation With the thread in front, push the retaining clamp over the probe shaft. Screw the retaining clamp clockwise onto the thread on the data logger. A fixing material (cable tie, wire, etc.) can be fed through the opening of the retaining clamp.
-
Page 24: Maintenance
5.2 Calibration The testo 191 data loggers feature a high level of accuracy. In order to maintain this accuracy of the measurement results, Testo recommends calibrating the instrument once a year. This service can be carried out by Testo Industrial Services GmbH. -
Page 25: Technical Data
Stainless steel 316L/WNR. 1.4404/SUS 316L Measuring cycle 1 s to 24 h Measurement data memory 60,000 readings Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads. -
Page 26: Testo 191 T2
60,000 readings Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of You can find the EU declaration of conformity conformity on the Testo website www.testo.com under the product-specific downloads. 6.3 testo 191 T3 Feature Value Order no. 0572 1913 Measurement parameter Temperature (°C / °F / K) -
Page 27: Testo 191 T4
Measurement data memory 60,000 readings Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads. 6.4 testo 191 T4 Feature Value Order no. 0572 1914 Measurement parameter Temperature (°C / °F / K) -
Page 28: Testo 191 P1
Measurement data memory 30,000 readings per channel Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads. 6.5 testo 191 P1 Feature Value Order no. -
Page 29: Large Battery
Measurement data memory 60,000 readings Guideline 2014/30/EU (EMC) 2011/65/EU (RoHS) EU declaration of conformity You can find the EU declaration of conformity on the Testo website www.testo.com under the product-specific downloads. 6.6 Large battery Feature Value Order no. 0515 1901... -
Page 30: Accessories And Spare Parts
121 °C 6.8 Accessories and spare parts Description Order no. testo 191 T1, HACCP temperature data logger including 0572 1911 large battery, long distance adapter for programming and readout unit and calibration protocol testo 191 T2, HACCP temperature data logger including... - Page 31 6 Technical data Description Order no. ISO calibration certificate (pressure) 0520 0025 DAkkS calibration certificate (pressure) 0520 0215 For further accessories and spare parts, please refer to the product catalogues and brochures or look up at www.testo.com.
