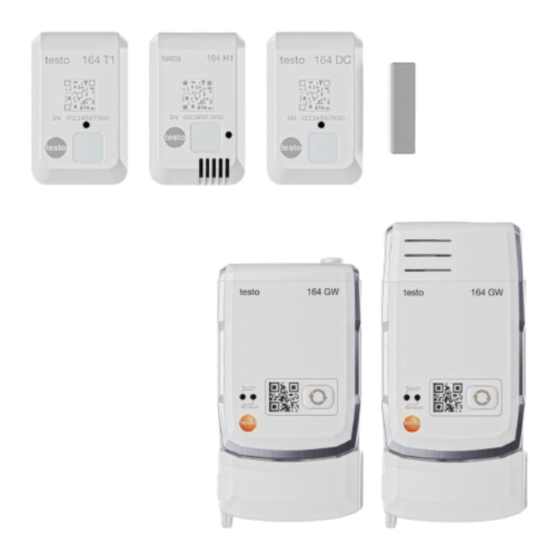

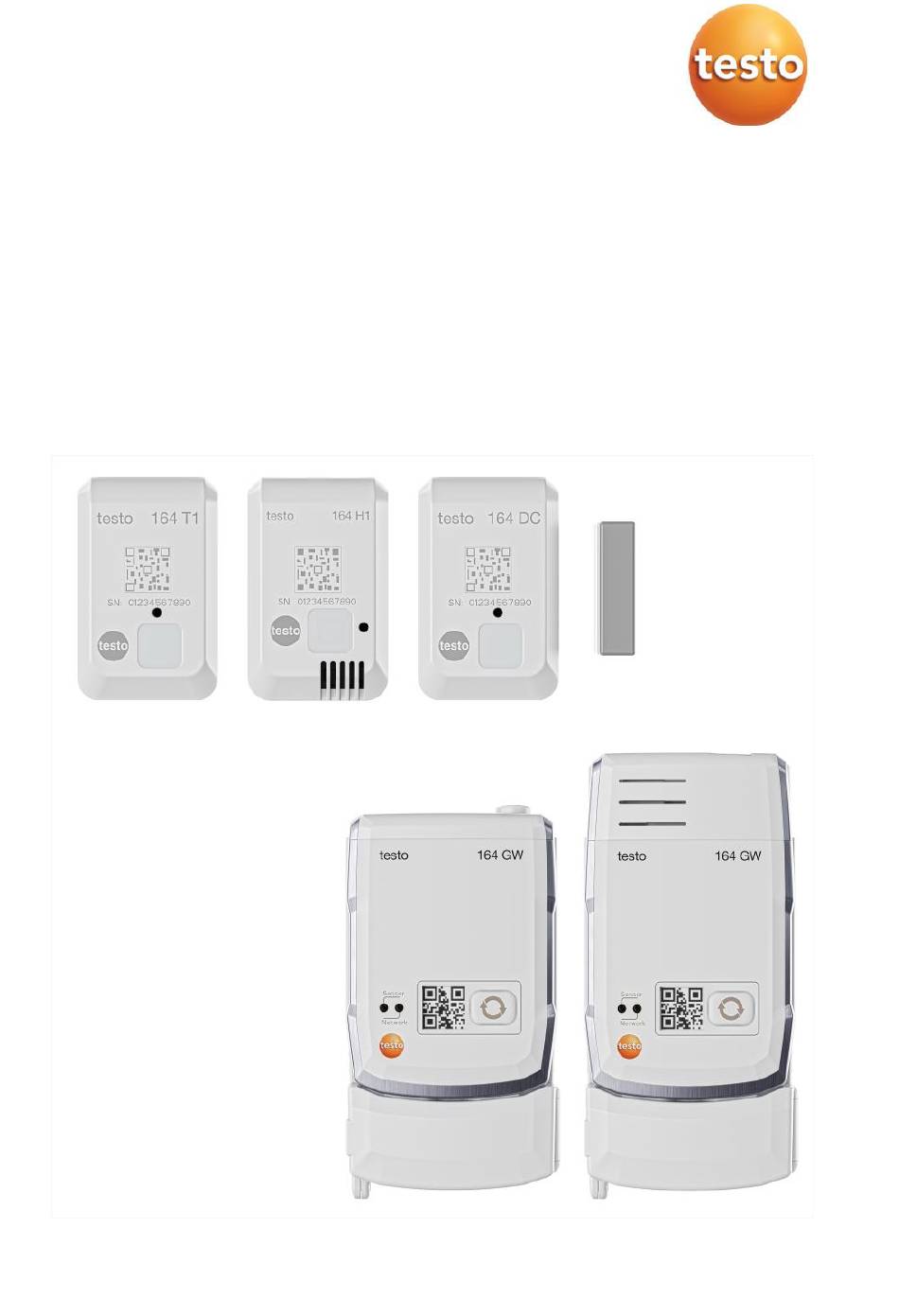

- Page 1 Online data loggers 0572 1641 xx – testo 164 T1 0572 1644 xx – testo 164 H1 0572 1646 xx – testo 164 DC 0572 1648 xx – testo 164 GW (WLAN) 0572 1649 xx – testo 164 GW (LAN/PoE) User manual...
-
Page 2: Table Of Contents
Configuring the testo 164 Gateway ............14 5.4.1 Commissioning via testo Smart App ............. 14 5.4.2 Commissioning via testo Saveris Cloud (via USB cable) ..... 15 5.4.3 Configuring the Gateway offline via PDF (via USB cable) ....15 5.4.4 Required ports ..................16 Connecting online data loggers with the Gateway ....... - Page 3 Contents Changing batteries ................21 Removing the batteries of the online data loggers for disposal ... 23 Troubleshooting ................25 Questions and answers ............... 25 Technical data ..................29 Online date loggers ................29 testo 164 GW (Gateway) ..............31...
-
Page 4: About This Document
Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. Batteries and rechargeable batteries • Improper use of batteries may cause destruction of the batteries, injuries due to current surges, fire or the escape of chemicals. - Page 5 That may lead to the escape of gases, an explosion and/or possibly to fire. • With rechargeable batteries, never use chargers which are not suitable for the battery type. Suitable chargers for Testo products are to be found in the list of accessories. • Do not short batteries.
-
Page 6: Disposal
3 Intended use The testo 164 online data loggers record measurement values (temperature, humidity or door contact) and send them to the testo 164 Gateway via a proprietary wireless connection. The gateway receives the measurement data from the testo 164 online data loggers via the proprietary wireless connection. -
Page 7: Product Description
UV can also be measured. The testo 160 online data logger system consists of the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart App. The testo Saveris Cloud is the central data platform. Measurement values can be viewed and analyzed there. -
Page 8: Testo Account
4 Product description The transmission of data from the online data loggers testo 164 to the Gateway takes place via Sub1-GHz communication. For the transfer of data from the Gateway to the Cloud, a customer LAN or WLAN infrastructure is required (not part of the scope of delivery). -
Page 9: Testo 164 Gateway
4 Product description testo 164 Gateway IP protective cap over TCI 2 TCI connector (connector for connection communication module) Antenna for Sub1-GHz 4 Connect key to establish communication online data loggers connection mode to register the online data loggers Micro USB connection socket for... -
Page 10: Key Functions
4 Product description 4.6.1 Key functions The Connect key on the Gateway has different functions depending on how long it is pressed: Key operation Function Press the key <3 s. Set the Gateway to connection mode for 3 minutes to connect new online data loggers. -
Page 11: Communication Modules
4 Product description Function Signal Colour Connection not available Continuous rapid flashing - No connection via Ethernet cable - No WLAN connection Network or hardware error Communication with Cloud 2 x short flash Green FW update via radio Alternate flashing Green/re Reset to factory setting Alternate 5 x short flash... -
Page 12: Functions And Led Displays
4 Product description Functions and LED displays Function Action/key Signal Switching on In a deactivated Flashes green for 90 s. online data logger state, press the key After 90 s: <3 s. 1 x 2 s green → connection established to Gateway 1 x 2 s red →... -
Page 13: Commissioning
5 Commissioning 5 Commissioning Attaching the communication module The picture shows an example of the installation of the WLAN communication module. Remove the protective cap. Place the communication module on the Gateway. Attach the communication module to the Gateway using the screws. Close screw openings with rubber plugs. -
Page 14: Connecting The Antenna And Mains Unit
Connect the mains unit using the USB cable. Screw the antenna into the connection. Creating a testo Account If you do not yet have a testo account, register at: https://www.testo.com/login Registration is also possible via the testo Smart App. The testo Smart App is available for iOS devices in the AppStore or for Android devices in the Play Store. -
Page 15: Configuring The Testo 164 Gateway
Gateway. If using Ethernet, make sure that the Ethernet connection of the Gateway is not blocked by a firewall. The gateways can be integrated into your network and into your testo account in several ways: •... -
Page 16: Commissioning Via Testo Saveris Cloud (Via Usb Cable)
5 Commissioning 5.4.2 Commissioning via testo Saveris Cloud (via USB cable) Open testo Saveris Cloud: www.saveris.testo.com Log in to your testo account or register again. Select Add new data logger. Follow the step-by-step instructions. 5.4.3 Configuring the Gateway offline via PDF (via USB cable) The computer is switched on. -
Page 17: Required Ports
5 Commissioning IMPORTANT The WLAN password must not contain the following special characters: >, <, ‘‘, ‘, &. Select Expert Mode to check if the Gateway is configured for DHCP or static IP addresses (Static IP, standard setting). For operation via static IP addresses, enter the valid network parameters (Custom NTP Server). -
Page 18: Connecting Online Data Loggers With The Gateway
Saveris Cloud. Make sure that you have a valid license for each data logger. Open testo Cloud Account (in the testo Smart App or directly in the testo Saveris Cloud). Open Account-Informationen. -
Page 19: Configuration And Operation Of Online-Data Loggers
Configuration and operation of online- data loggers The testo 160, testo 162 and testo 164 online data loggers can only be used and operated in conjunction with the testo Saveris Cloud. Information on operating the data loggers (configuration, limit values, alarms, etc.) can be found in the notes and info boxes in the testo Saveris Cloud. -
Page 20: Inserting The Gateway In The Wall Bracket
5 Commissioning Inserting the Gateway in the wall bracket ✓ Power supply, antenna and communication module are connected. Insert the Gateway in the wall bracket. Close the cover. 5.10 Mounting online data loggers 5.10.1 Wall mounting The online data logger can be attached directly to most materials with adhesive strips. -
Page 21: Door Contact Sensor
Depending on the structural conditions, the magnet can be mounted either directly or using one or two spacers (included in the scope of delivery). If the testo 164 DC is mounted on metal doors, this may lead to weakening of the signal. -
Page 22: Maintenance And Care
6 Maintenance and care 6 Maintenance and care Cleaning the online data loggers Only use mild, commercially available, neutral/household cleaning agents (e.g. washing-up liquid) to clean the online data loggers. Do not use aggressive cleaning agents or solvents! Cleaning the Gateway Only use mild, commercially available, neutral/household cleaning agents (e.g. - Page 23 Place the battery compartment cover on the housing of the Gateway. Screw the battery compartment cover tightly onto the housing. Reconnect the power supply (USB). The Gateway establishes a connection to the Testo Cloud; (LED flashes green). CAUTION Unwanted residual discharge when disposing of old batteries.
-
Page 24: Removing The Batteries Of The Online Data Loggers For Disposal
6 Maintenance and care Removing the batteries of the online data loggers for disposal The testo 164 T1 and testo 164 DC online data loggers are equipped with a permanently installed battery to ensure the high protection class IP67. It is therefore not possible to change the battery. - Page 25 6 Maintenance and care Remove the circuit board and battery (red arrow) and dispose of them separately in accordance with local regulations. CAUTION Unintentional residual discharge when disposing of old batteries. - Tape the terminals of the old batteries to prevent unintentional residual discharge due to short circuits during disposal.
-
Page 26: Troubleshooting
4. Please that the configuration of the Gateway is only fully applied after the USB connector has been removed. Commissioning a gateway in a network with WPA2 Enterprise encryption is not possible via the testo Smart App, but only via USB. - Page 27 7 Troubleshooting Question Possible cause/solution The XML configuration Depending on the operating system, there may be file is not applied by the difficulties with the data transfer if the configuration Gateway – what can I file name has been changed. Leave the default file name.
- Page 28 7 Troubleshooting Question Possible cause/solution Error code E24 A WPA2 Enterprise EAP-TLS connection needs to be configured, but no private key could be found; (only applies to WPA2 Enterprise). Save the private key in PEM format under the name private.key together with the XML file on the Gateway.
- Page 29 Error code E52 Login failed! The Gateway is already registered in a Cloud account. Contact your authorised Testo Service to proceed further. Error code E53 During configuration of the Gateway, an invalid account has been entered via the Configuration...
-
Page 30: Technical Data
8 Technical data 8 Technical data Online date loggers Measurement-specific data Online data testo 164 T1 testo 164 H1 testo 164 DC logger 0572 1641 0572 1644 0572 1646 Sensor type Ambient Humidity and ambient Door contact temperature temperature digital Measuring -30 ... - Page 31 8 Technical data General data Online data testo 164 T1 testo 164 H1 testo 164 DC logger 0572 1641 0572 1644 0572 1646 Operating -30 ... +70 °C -10 ... +50 °C -30 ... +70 °C temperature Storage -30 ... +70 °C -30 ...
-
Page 32: Testo 164 Gw (Gateway)
8 Technical data testo 164 GW (Gateway) Feature With mounted WLAN With mounted LAN/PoE communication module communication module Order number 0572 1648 XX 0572 1649 XX Connections Micro USB for voltage supply Dimensions (W x H x L) 69 x 101 x 29 mm... - Page 33 Testo SE & Co. KGaA Celsiusstraße 2 79822 Titisee-Neustadt Germany Telefon: +49 7653 681-0 E-Mail: info@testo.de Internet: www.testo.com 0970 1640 en 01 – 02.2025...
