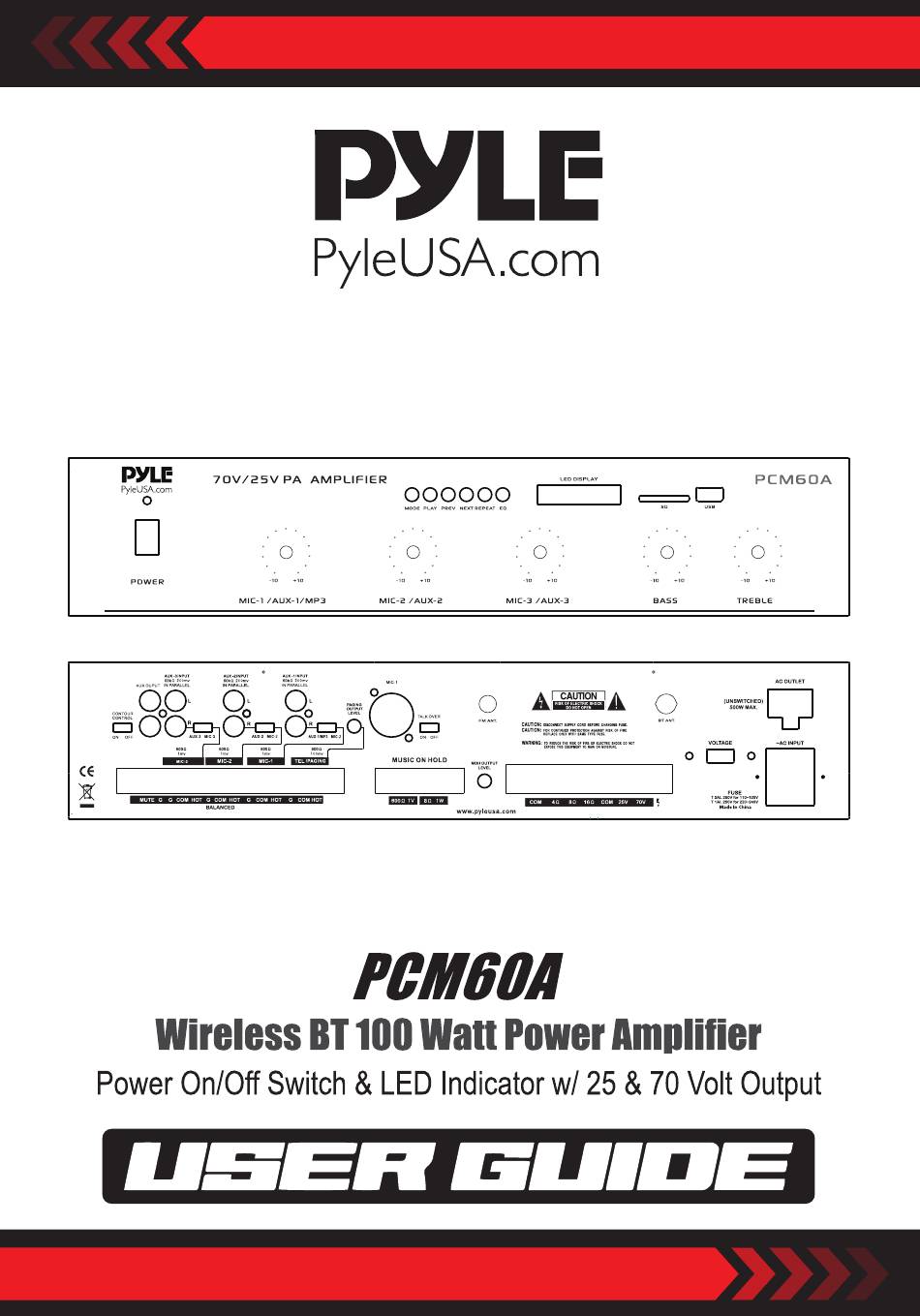

Summary of Contents for Pyle PCM60A
- Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
- Page 3 12. Once installation and wiring is complete power on all your equipment with the volume and level controls turned DOWN. Once all the equipment is ON slowly raise the volume or level controls to their proper positions. 13. When grounding this unit, be sure to do so correctly, so as not to defeat the built-in grounding in this unit.
-
Page 4: Remote Control
REMOTE CONTROL Remote control gives you commanding access only to USB/SD, Wireless BT and FM functions and not the Master volume, microphone, bass, treble and other functions. A. Please take out the battery sheet before using the remote control, otherwise the remote control will not work. - Page 5 7. Press this button to select the playing mode, such as USB/SD/FM/WIRELESS BT 8. EQ function: Select a pre-set mode of the equalizer that is designed accordingly. 9. Play and Pause function for MP3 in USB/SD/BT model. Press this button to auto scan the channel in FM model, and auto store channel.
-
Page 6: Control Panel Button
A. Press MODE button under the ID3 display screen and enter into bluetooth mode. B. Search for the bluetooth device and nd the bluetooth name “Pyle Speaker” C. Select the “Pyle Speaker” bluetooth name and wait for the device to pair. The screen will display “SEARCHING”. -
Page 7: Front & Back Panel
FRONT & BACK PANEL 1. USB/SD Card/Wireless BT Control Console After inserting a USB ash drive/SD Card into the input terminal, be sure to set the input selector (13) to USB/SD, then press the mode button to choose between audio from the USB port, SD Card input, Wireless BT or FM radio. If you want to use the Wireless BT, check the below steps. - Page 8 www.PyleUSA.com...
-
Page 9: Speaker Connection
SPEAKER CONNECTION One or more speakers (4, 8 or 16 Ohms) can be connected to the ampli er with or without transformers. However, before you connect any speakers to the ampli er, the total impedance must be calculated in order to avoid damage to the ampli er. A total speaker impedance greater than 16 Ohms or less than 4 Ohms can cause this damage to occur. - Page 10 SYSTEM 4: Four Speakers in Series and Parallel NOTE: Although the description above is for connecting two series pairs of 8 Ohms speakers in a parallel hook up, you may also select to combine a series pair and a parallel pair in a parallel hook up, simply be sure you have calculated the total impedance, and attach the speaker (+) circuit wire to the proper amp terminal.
-
Page 11: Connection Diagram
CONNECTION DIAGRAM www.PyleUSA.com... - Page 12 Features: • Bluetooth Receiver for Wireless Audio Streaming Ability • USB/SD/FM playing • Power On/O Switch & LED Indicator • AUX 1/MIC 1 Output Level Control • AUX 2/MIC 2 Output Level Control • AUX 3/MIC 3 Output Level Control •...
- Page 13 Bluetooth Wireless Connectivity: • Simple & Hassle-Free Pairing Ability • Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.) • Bluetooth Network Name: ‘Pyle Speaker’ • Bluetooth Version:5.0 • Wireless Range: 40’+ ft. What's in the Box: •...
- Page 14 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
Need help?
Do you have a question about the PCM60A and is the answer not in the manual?
Questions and answers
Playing music from a thumb drive
To play music from a thumb drive on the Pyle PCM60A:
1. Insert the USB thumb drive into the USB input of the unit.
2. The unit will automatically switch to USB/SD mode after turning on and begin playing MP3 files from the drive.
3. If needed, press the "MODE" button to select USB/SD mode.
Note: The USB input only works with USB thumb drives and will not function with devices like MP3 players or computers.
