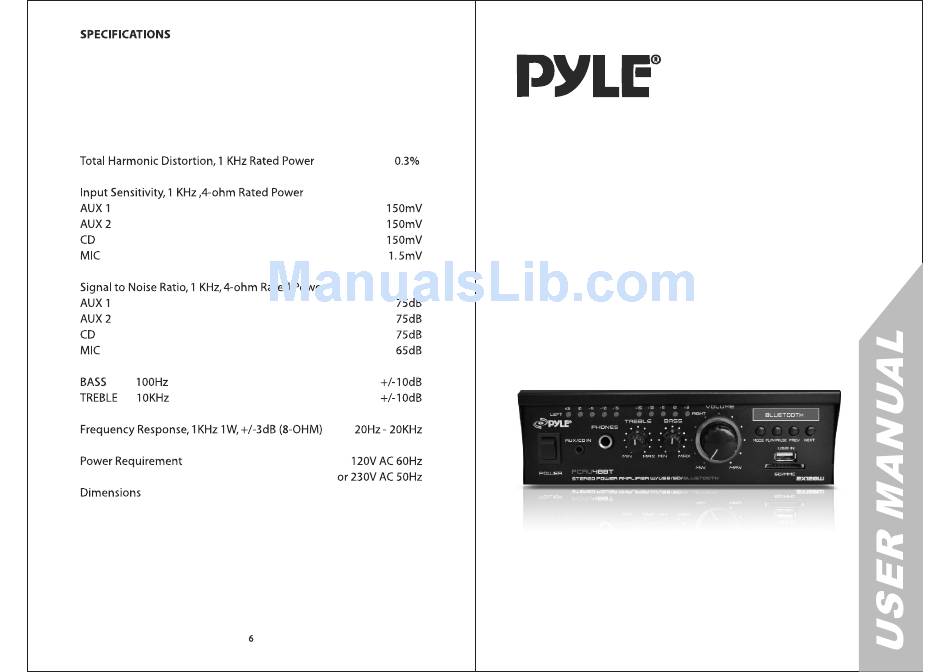

Output power, 2 channels driven
4-ohm, 1 KHz 1% THD.
4-ohm, 1 KHz 10% THD.
Peak Power
75.5 Wx2
55.5 Wx2
120 Wx2
8.27x2.83x5.43 inch(WxHxD)
www.PyleAudio.com
MINI 2X120W STEREO POWER AMPLIFIER
W/MP3 PLAYER/ W/BLUETOOTH & W/USB
CHARGING FOR MOBILE PHONE
MODEL:PCAU48BT
Advertisement
Related Manuals for Pyle PCAU48BT
Summary of Contents for Pyle PCAU48BT
- Page 1 Output power, 2 channels driven 4-ohm, 1 KHz 1% THD. 75.5 Wx2 4-ohm, 1 KHz 10% THD. 55.5 Wx2 www.PyleAudio.com Peak Power 120 Wx2 MINI 2X120W STEREO POWER AMPLIFIER W/MP3 PLAYER/ W/BLUETOOTH & W/USB CHARGING FOR MOBILE PHONE MODEL:PCAU48BT 8.27x2.83x5.43 inch(WxHxD)
- Page 2 FEATURES AND CONTORLS FOREWORD FRONT PANEL PCAU48BT Blue LED Output Level Indicators 2.Blue LED Display Window for MP3/Bluetooth Function. 3.Buttons for Bluetooth/MP3(USB and SD) Function Control. -MODE Button: For audio selection like BLUETOOTH/USB/ SD/LINE IN -PLAY/PAUSE Button: For play and pause control...
- Page 3 BACK PANEL REMOTE CONTROL FUNCTION 10. USB Charge Port & USB Reader Function USB port charges for smartphone, and also for USB reader function. 11.SD/MMC Socket for playing SD/MMC cards. Bluetooth Antenna The antenna is best receiving for Bluetooth operation. 13.RCA L/R LINE Input -Let you connect to the desired LINE input sources.
- Page 4 BLUETOOTH FUNCTION INSTRUCTION External devices which have a built‐in Bluetooth feature can be connected to this amplifier wirelessly to play through the amplifier’s speakers. 1. Be sure that the amplifier is powered on. And it’s better to pull the Bluetooth Antenna on at the back of panel for better receiving. Press MODE button until the display screen displays the word bLUE.
