Summary of Contents for Pyle PCM20A

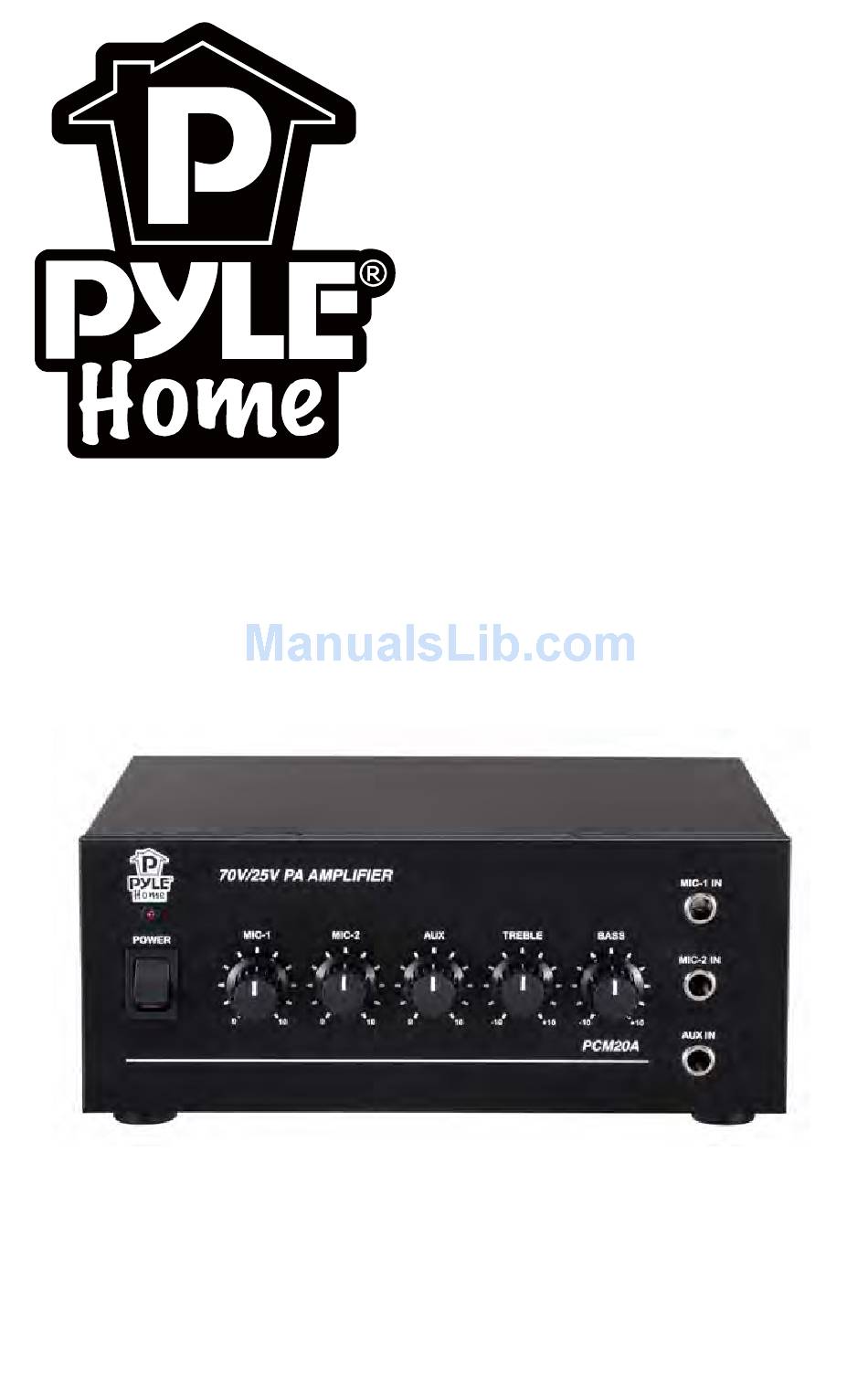

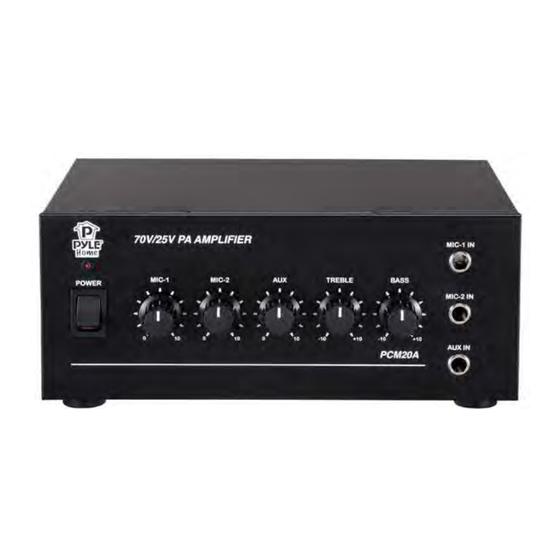

- Page 1 PCM20A 40W MAX P.A. AMPLIFIER www.pyleaudio.com...
-
Page 2: Important Safety Instructions
No user-serviceable parts inside. Refer servicing to qualified personnel. 1 - Pyle Home PCM20A Manual This symbol is intended to alert you to the - 6 presence of un- insulated dangerous voltage within the product’s enclosure that might be of sufficient magnitude to constitute a risk of electric... -
Page 3: Features And Controls
MIC 1 and one Auxiliary Input on the front panel make it perfectly in meeting halls, auditoriums, sports events in school, and paging system in offices, anywhere you need to deliver special announcement with excellent sound. FEATURES AND CONTROLS Pyle Home PCM20A Manual - 2... - Page 4 3 - Pyle Home PCM20A Manual...
-
Page 5: Speaker Connection
NOTE : Connect the speaker (+) to the amplifier's 8-Ohm terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an impedance of 4-Ohm, the total speaker impedance in this series configuration is 8 ohms. Pyle Home PCM20A Manual - 4... -
Page 6: System 5 : Connecting Speakers With Transformers
NOTE : When the 25V or 70V constant line voltages are used, a line matching transformer must be used with each speaker, All transformers must be connected in parallel, never connect line transformers in series. 5 - Pyle Home PCM20A Manual... -
Page 7: Connection Diagram
CONNECTION DIAGRAM Your Pyle Home Amplifier is an example of superior design and Pyle Home PCM20A Manual - 6... -
Page 8: Specifications
Dimensions, inches (mm) WxHxD...7.87 x 3.15 x 5.90 (200 x 80 x 150) Weight, lbs (kg) ...4.5 ( 2.04) Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice. 7 - Pyle Home PCM20A Manual...
