Summary of Contents for Pyle PCM20A
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions — All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions — The safety and operating instructions should be retained for future reference. 3. Heed Warnings — All warnings on the appliance and in the opera- ting instructions should be adhered to. - Page 3 13. Nonuse Periods — The power cord of the appliance should be unplugged from the outlet when the appliance is to be left unused for a long period of time. 14. Object and Liquid Entry — Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

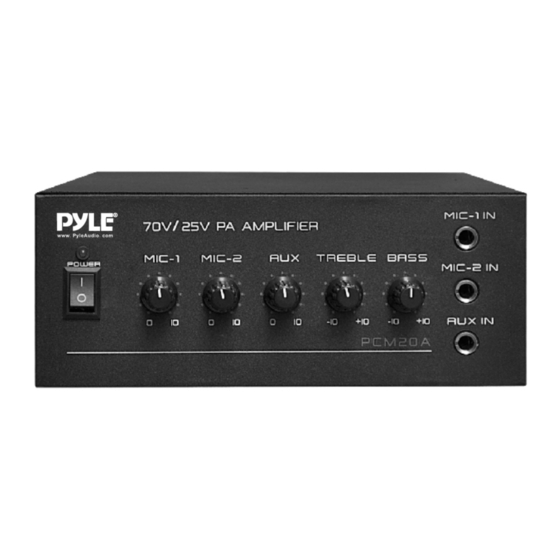

- Page 4 Your new PYLE HOME PCM Amplifier gives you the power and versatility that you need in a professional sound system. The wide frequency response is perfect for the amplification of vocals and music. The talkover function for the Mic 1 and Aux Input located on the front panel make it perfect meeting halls, auditoriums, sports events, schools and office paging systems.
- Page 5 FEATURES AND CONTROLS-BACK PANEL 6. BT/LINE Input Switch (For PCM21BT only ) Press in, it's Bluetooth Input status, and press it out, it's LINE input status. 7.Bluetooth Indicator 8. Bluetooth Antenna (For PCM21BT only) The antenna is best receiving for Bluetooth signal. 9.Voltage Switch This PA amplifier has selectable input voltage from 110V/60Hz ( the standard in USA and CANADA ) to 220V/50Hz ( for...
-
Page 6: Speaker Connection
SPEAKER CONNECTION One or more speakers (4, 8 or 16 Ohms) can be connected to the amplifier with or without transformers. However, before you connect any speakers to the amplifier, the total impedance must be calculated in order to avoid damage to the amplifier. - Page 7 SYSTEM 4 : Four Speakers in Series and Parallel NOTE : Although the description above is for connecting two series pairs of 8 Ohms speakers in a parallel hook up, you may also select to combine a series pair and a parallel pair in a parallel hook up, simply be sure you have calculated the total impedance, and attach the speaker (+) circuit wire to the proper amp terminal.
-
Page 8: Input Impedance
BLUETOOTH OPERATION INSTRUCTION (For PCM21BT only): External devices which have a built-in Bluetooth feature can be connected to this amplifier wirelessly to play through the amplifier's speakers. If your amp is connected to speakers, you will hear audible tones which will help for connecting.
