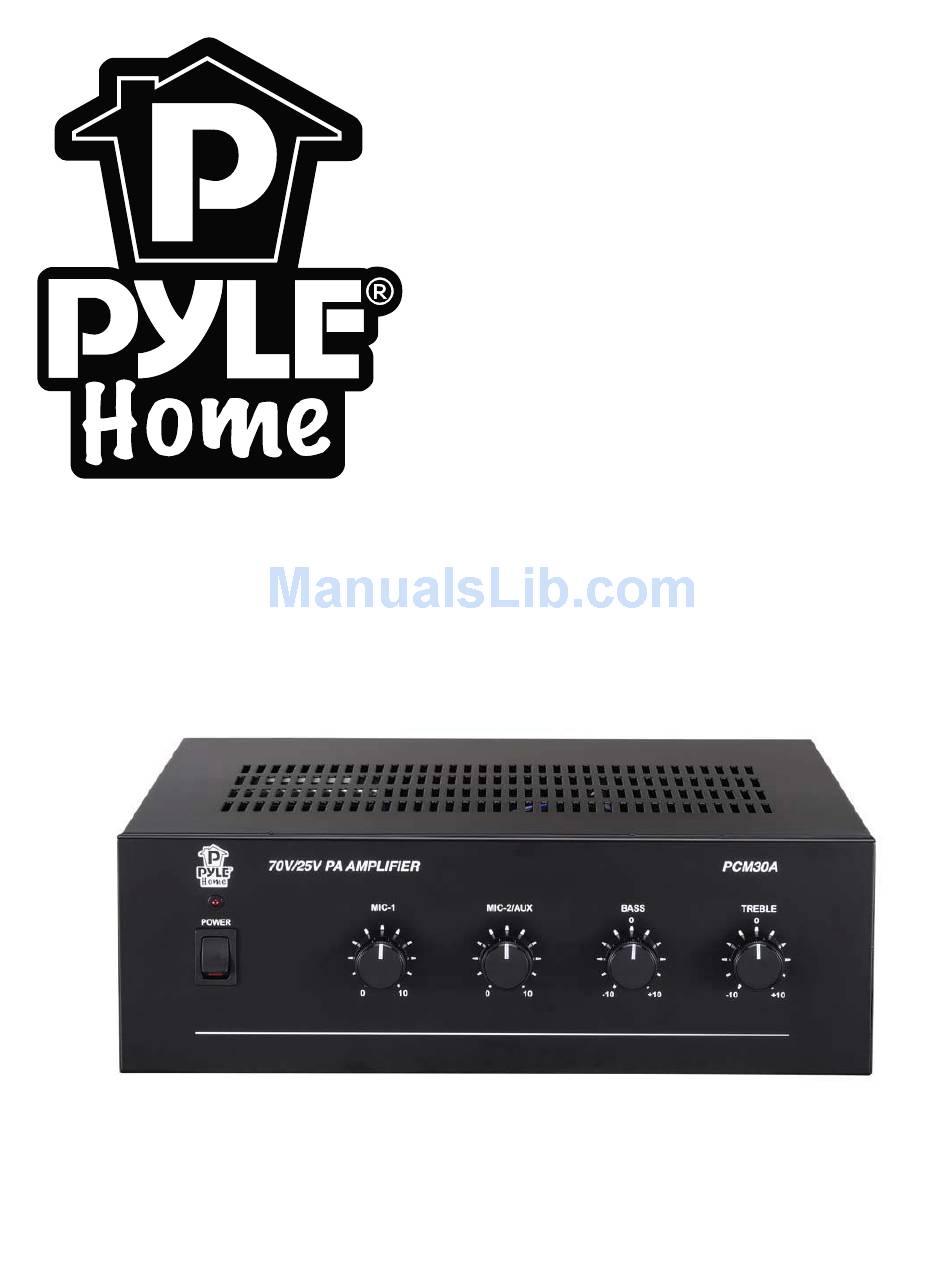

- Page 1 PCM30A 60W MAX P.A. AMPLIFIER www.pyleaudio.com...
-
Page 2: Important Safety Instructions
CAUTION: To reduce the risk of electric shock, do not remove literature accompanying this product. cover or back. No user-serviceable parts inside. Refer servicing to qualified personnel. 1 - Pyle Home PCM30A Manual... -
Page 3: Features And Controls
The monitor terminal, talkover function on MIC 1, and Tel/Paging make it perfectly to use in meeting halls, auditoriums, sports events in school, and paging system in offices , anywhere you need to deliver special announcement with excellent sound. FEATURES AND CONTROLS Pyle Home PCM30A Manual - 2... - Page 4 FEATURES AND CONTROLS 3 - Pyle Home PCM30A Manual...
-
Page 5: Speaker Connection
NOTE : Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an impedance of 8-Ohm, the total speaker impedance in this series cofiguration is 16 ohms. Pyle Home PCM30A Manual - 4... -
Page 6: System 5 : Connecting Speakers With Transformers
NOTE : When the 25V or 70V constant line voltages are used, a line matching transformer must be used with each speaker, All transformers must be connected in parallel, never connect line transformers in series. 5 - Pyle Home PCM30A Manual... -
Page 7: Connection Diagram
CONNECTION DIAGRAM Your Pyle Home Amplifier is an example of superior design and Pyle Home PCM30A Manual - 6... -
Page 8: Specifications
Dimensions, inches (mm) WxHxD..10.7 x 3.46 x 8.86 (272 x 88 x 225) Weight, lbs (kg) ..........9.79 ( 4.44) Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice. 7 - Pyle Home PCM30A Manual...
