Summary of Contents for Pyle PCM60A

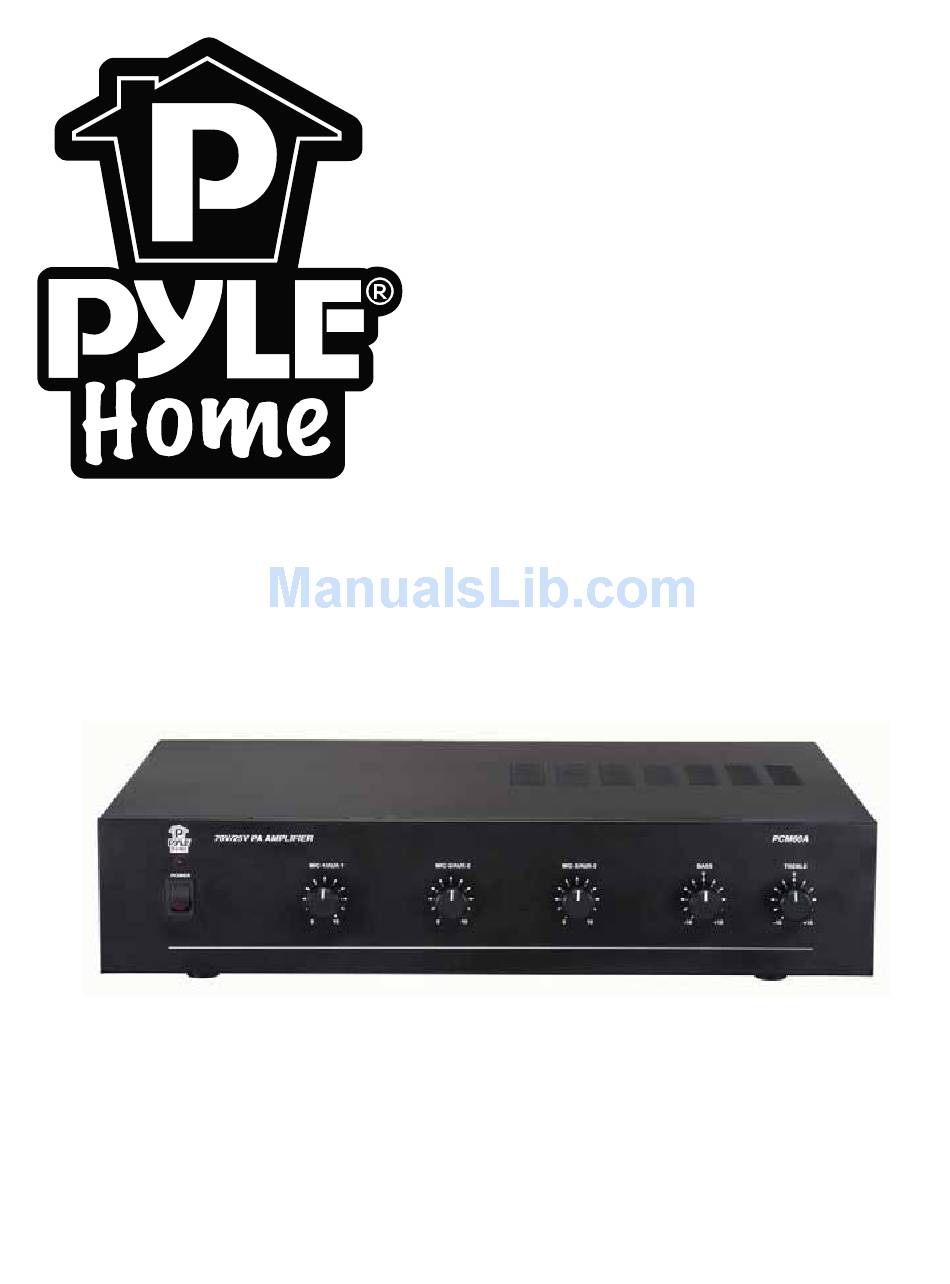

- Page 1 PCM60A 100W MAX P.A. AMPLIFIER www.pyleaudio.com...
-
Page 2: Important Safety Instructions
CAUTION: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified personnel. 1 - Pyle Home PCM60A Manual This symbol is intended to alert you to the presence of un- insulated dangerous voltage within the product’s enclosure that... -
Page 3: Features And Controls
MIC 1, AUX output for extra amp connection, and Tel/Paging make it perfectly to use in meeting halls, auditoriums, sports events in school, and paging system in offices, anywhere you need to deliver special announcement with excellent sound. FEATURES AND CONTROLS Pyle Home PCM60A Manual - 2... - Page 4 FEATURES AND CONTROLS The input impedance of the device should be more than 600 Ohms. 3 - Pyle Home PCM60A Manual...
-
Page 5: Speaker Connection
NOTE : Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an impedance of 8-Ohm, the total speaker impedance in this series cofiguration is 16 ohms. Pyle Home PCM60A Manual - 4... -
Page 6: System 5 : Connecting Speakers With Transformers
NOTE : When the 25V or 70V constant line voltages are used, a line matching transformer must be used with each speaker, All transformers must be connected in parallel, never connect line transformers in series. 5 - Pyle Home PCM60A Manual... -
Page 7: Connection Diagram
Pyle Home PCM60A Manual - 6 NOTE : The unit provides a Phantom Power DC 15V for electric condenser microphone, unit comes with jumper set to Phantom Power enable ON. -
Page 8: Specifications
Weight, lbs (kg) ...14.88(6.75) Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice. (430 x 88 x 267) Your Pyle Home Amplifier is an example of superior design and 7 - Pyle Home PCM60A Manual...
