SIMPLIHOME brooklyn + max WundenHall AXCCHS09-RNAB Assembly Instructions Manual

Chase / saylor / halstein tall bookcase
Hide thumbs

Advertisement

Quick Links

Download this manual

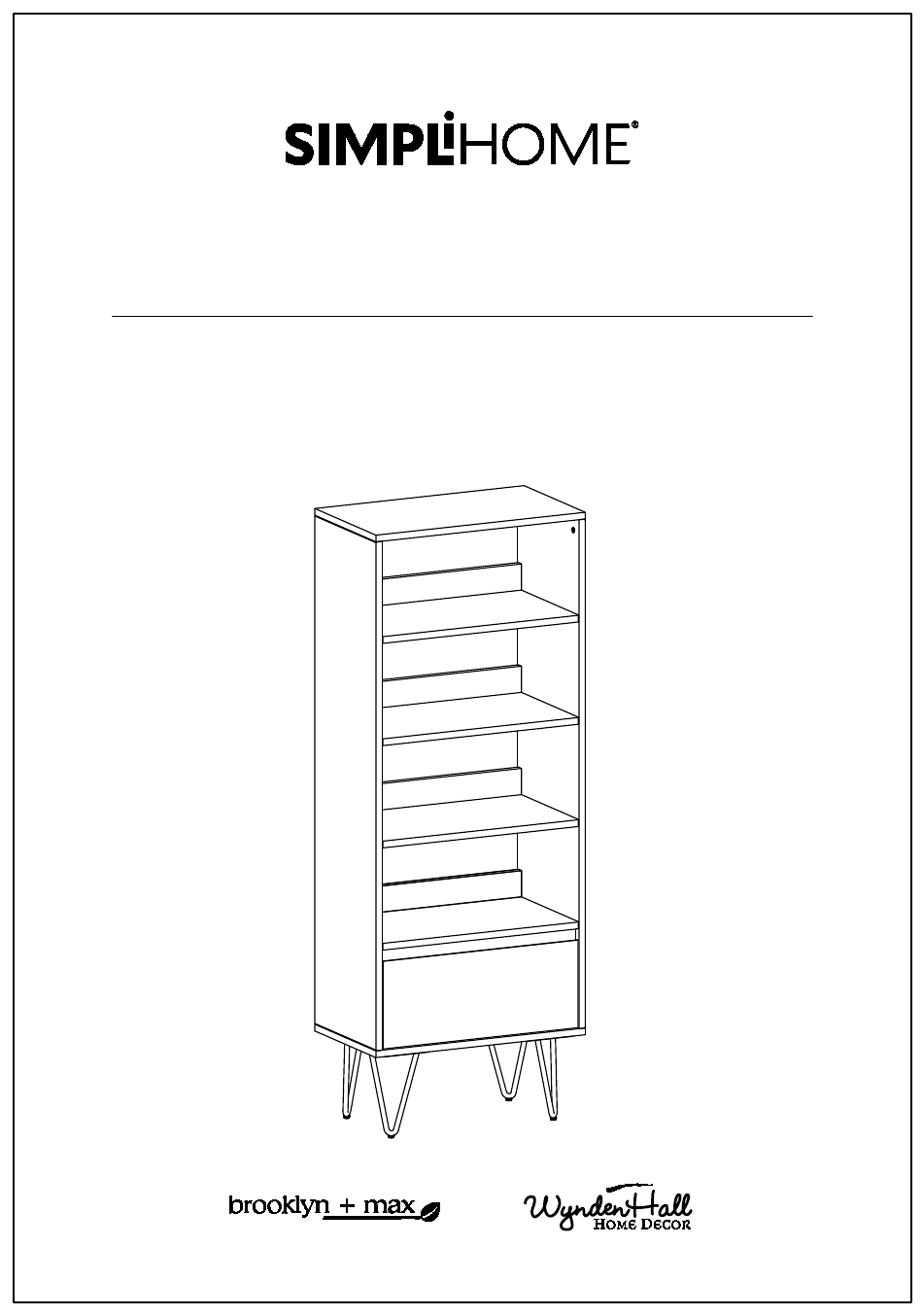

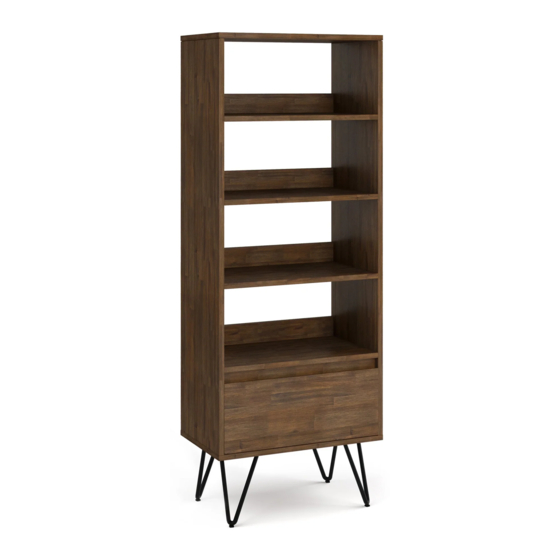

Chase / Saylor / Halstein
Tall Bookcase
Model # AXCCHS09-RNAB
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WundenHall AXCCHS09-RNAB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WundenHall AXCCHS09-RNAB

Summary of Contents for SIMPLIHOME brooklyn + max WundenHall AXCCHS09-RNAB

  • Page 1 Chase / Saylor / Halstein Tall Bookcase Model # AXCCHS09-RNAB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 7 Pre-Assembly Information Model # AXCCHS09-RNAB Part Description BOTTOM LEFT SIDE QTY 1 QTY 1 QTY 1 UPPER SHELF LOWER SHELF RIGHT SIDE QTY 3 QTY 1 QTY 1 Warning Label BACK BAR BACK PANEL DRAWER FRONT QTY 4 QTY 1 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCCHS09-RNAB Part Description DRAWER BACK LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BOTTOM METAL LEG QTY 1 QTY 4...
  • Page 9 Pre-Assembly Information Model # AXCCHS09-RNAB Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK M6 X 30mm Ø8 X 30mm QTY 24 SETS QTY 22 QTY 12 WASHER ALLEN KEY BOLT PHILLIPS SCREW ROUND HEAD Ø10/Ø6 X 1.5mm M6 x 20 mm M4 X 15mm QTY 12...
  • Page 10 Components - Key Diagram Model # AXCCHS09-RNAB...
  • Page 11 Assembly Model # AXCCHS09-RNAB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front H . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides IL , IR to Drawer Front H .
  • Page 12 Assembly Model # AXCCHS09-RNAB Step 3 1. Slide Drawer Bottom K firmly into slots on Drawer Sides IL , IR and Drawer Front H . Step 4 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot . 2.
  • Page 13 Assembly Model # AXCCHS09-RNAB Step 5 1. Attach eight Cam Lock Pins 2 into pre-drilled holes on each Sides CL , CR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert four Dowels 3 into guide holes on each Sides CL , CR . 4.
  • Page 14 Assembly Model # AXCCHS09-RNAB Step 6 1. Insert four Dowels 3 into guide holes on part D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 15 Assembly Model # AXCCHS09-RNAB Step 7 1. Attach Lower Shelf D to Back Bar F using three Allen Key Screws 1 through guide holes. 2. Use Allen Key 8 to tighten Screws. Do not over - tighten. 3. Attach Upper Shelf E to Back Bar F using three Allen Key Screws 1 through guide holes.
  • Page 16 Assembly Model # AXCCHS09-RNAB Step 8 1. Align Cam Lock Pins with guide holes on parts CR , E and attach part CR to part E . 2. Insert two Cam Locks 2 into guide holes on part E . 3.
  • Page 17 Assembly Model # AXCCHS09-RNAB Step 9 1. Repeat Step 8 for the other two parts E . 2. Repeat Step 8 for the other two parts E .
  • Page 18 Assembly Model # AXCCHS09-RNAB Step 10 1. Repeat Step 8 for Lower Shelf D . 2. Repeat Step 8 for Lower Shelf D .
  • Page 19 Assembly Model # AXCCHS09-RNAB Step 11 1. Align Wood Dowels and Cam Lock Pins with guide holes on parts CL , E , D and attach part CL to parts E , D . 2. Insert two Cam Locks 2 into guide holes on each part E , D . 3.
  • Page 20 Assembly Model # AXCCHS09-RNAB Step 12 1. Align Wood Dowels with guide holes on Bottom B and attach Bottom B to Sides CL , CR . 2. Attach Bottom B to Sides CL , CR using six Allen Key Screws 1 through guide holes.
  • Page 21 Assembly Model # AXCCHS09-RNAB Step 13 1. Attach four Cam Lock Pins 2 into pre-drilled holes on Top A . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
  • Page 22 Assembly Model # AXCCHS09-RNAB Step 14 1. Align Wood Dowels and Cam Lock Pins with guide holes on parts CL , CR , A and attach part A to parts CL , CR . 2. Insert two Cam Locks 2 into guide holes on each Side CL , CR . 3.
  • Page 23 Assembly Model # AXCCHS09-RNAB Note: Step 15 1. Attach the Back Panel G to back frame using Phillips Screws Round Head 4 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. 3. Attach Legs L to Bottom B . 4.
  • Page 24 Assembly Model # AXCCHS09-RNAB Step 16 1. Insert assembled drawer into glides on assembled Bookcase. 2. Turn the wood lock ( on the Drawer Back ) to be perpendicular to the frame for safety stop (intended to keep the drawers from pulling all the way out).
  • Page 25 Assembly Model # AXCCHS09-RNAB Step 17 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
  • Page 26 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 18 NOTE: The screwdriver is not included in the hardware pack.
  • Page 27 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
