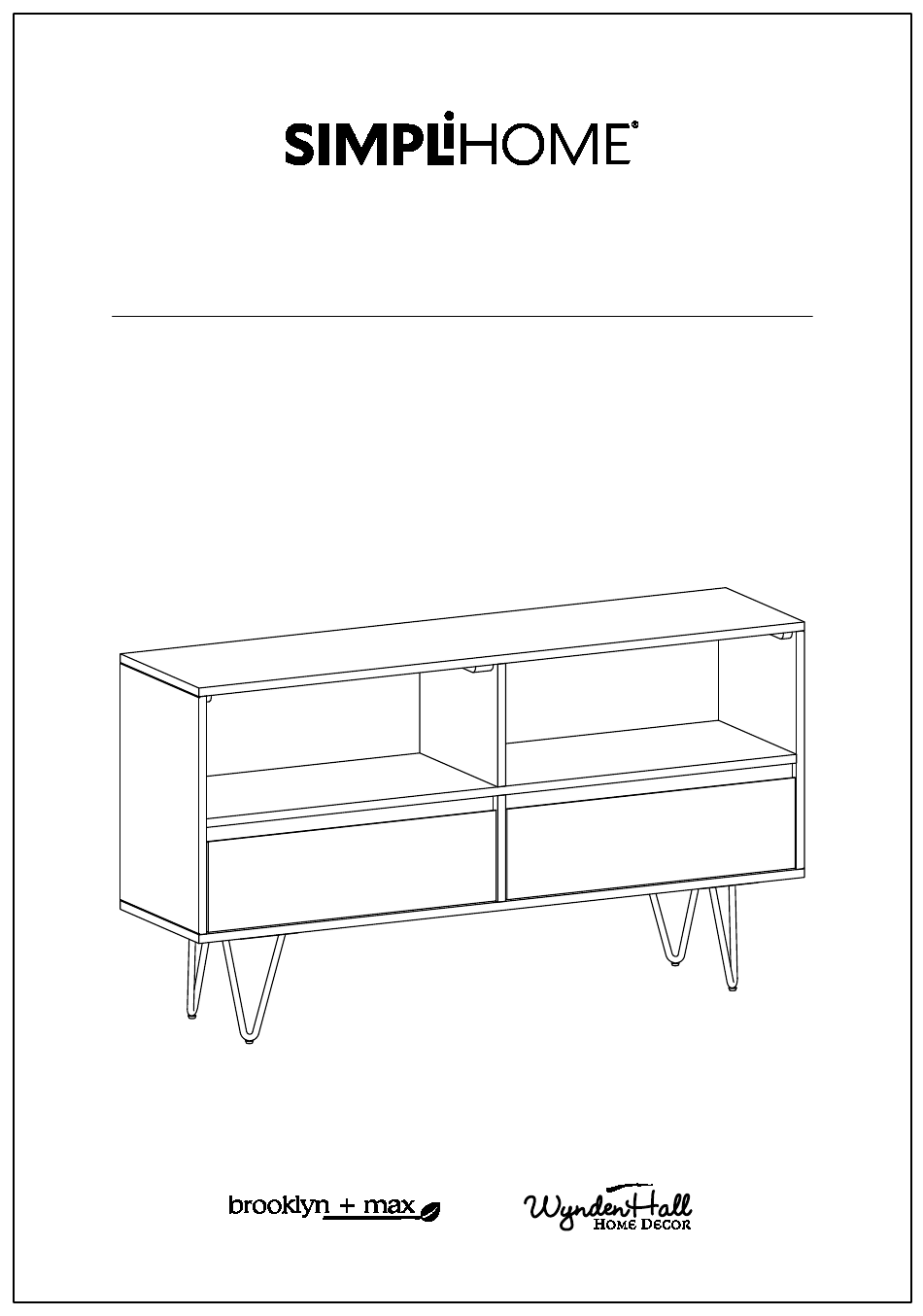

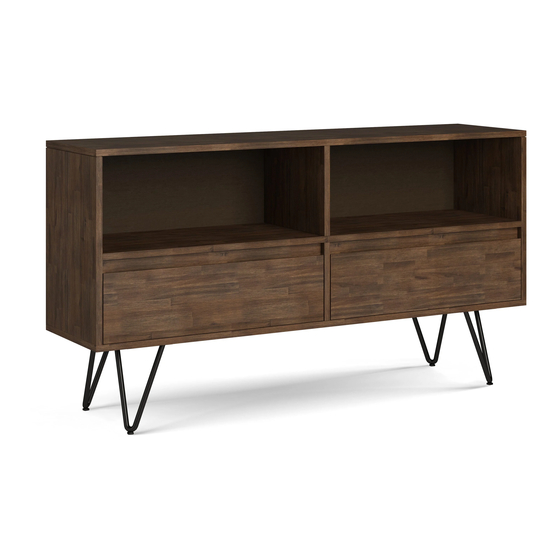

- Page 1 Chase / Saylor / Halstein Low Bookcase Model # AXCCHS56-N...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCCHS56-N Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM MIDDLE SHELF UPPER DIVIDER QTY 1 QTY 1 QTY 1 Warning Label LOWER DIVIDER UPPER BACK LOWER BACK QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE...
- Page 8 Pre-Assembly Information Model # AXCCHS56-N Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK M6 X 30mm Ø8 X 30mm QTY 8 SETS QTY 36 QTY 16 WASHER ALLEN KEY BOLT PHILLIPS SCREW ROUND HEAD Ø10/Ø6 X 1.5mm M6 x 20 mm M4 X 15mm QTY 12...
- Page 9 Components - Key Diagram Model # AXCCHS56-N...
- Page 10 Assembly Model # AXCCHS56-N Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front I . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides JL , JR to Drawer Front I .
- Page 11 Assembly Model # AXCCHS56-N Step 3 1. Slide Drawer Bottom K firmly into slots on Drawer Sides IL , IR and Drawer Front H . Step 4 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot . 2.
- Page 12 Assembly Model # AXCCHS56-N Step 5 1. Insert Dowels 3 into guide holes on parts BL , BR , D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # AXCCHS56-N Step 6 1. Insert Dowels 3 into guide holes on parts E , F . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 14 Assembly Model # AXCCHS56-N Step 7 1. Align Wood Dowels with guide holes on parts BL , D and attach parts BL , E to part D . 2. Attach parts BL , E to Middle Shelf D using six Allen Key Screws 1 through guide holes.
- Page 15 Assembly Model # AXCCHS56-N Step 8 1. Align Wood Dowels with guide holes on part BR and attach part BR to part D . 2. Attach part BR to Middle Shelf D using three Allen Key Screws 1 through guide holes. 3.
- Page 16 Assembly Model # AXCCHS56-N Step 9 1. Align Wood Dowels with guide holes on Top A and attach Top A to Sides BL , BR . 2. Attach Top A to parts BL , BR , E using Allen Key Screws 1 through guide holes. 3.
- Page 17 Assembly Model # AXCCHS56-N Step 10 1. Attach Divider F to Middle Shelf D using two Allen Key Screws 1 through guide holes. 2. Use Allen Key 8 to tighten Screws. Do not over - tighten.
- Page 18 Assembly Model # AXCCHS56-N Step 11 1. Align Wood Dowels with guide holes on Bottom C and attach Bottom C to parts BL , BR , F . 2. Attach Bottom C to parts BL , BR , F using Allen Key Screws 1 through guide holes. 3.
- Page 19 Assembly Model # AXCCHS56-N Step 12 1. Attach Legs M to Bottom C . 2. Use three Allen Key Bolts 5 , three Lock Washers 6 and three Washers 7 to secure each Leg M and C . 3. Use Allen Key 8 to tighten Bolts. Do not over-tighten.
- Page 20 Assembly Model # AXCCHS56-N Note: Step 13 1. Attach the Back Panels G , H to back frame using Phillips Screws Round Head 4 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 21 Assembly Model # AXCCHS56-N Step 14 1. Insert assembled drawers into glides on assembled Bookcase. 2. Turn the wood lock ( on the Drawer Back ) to be perpendicular to the frame for safety stop (intended to keep the drawers from pulling all the way out).
- Page 22 Assembly Model # AXCCHS56-N Step 15 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
