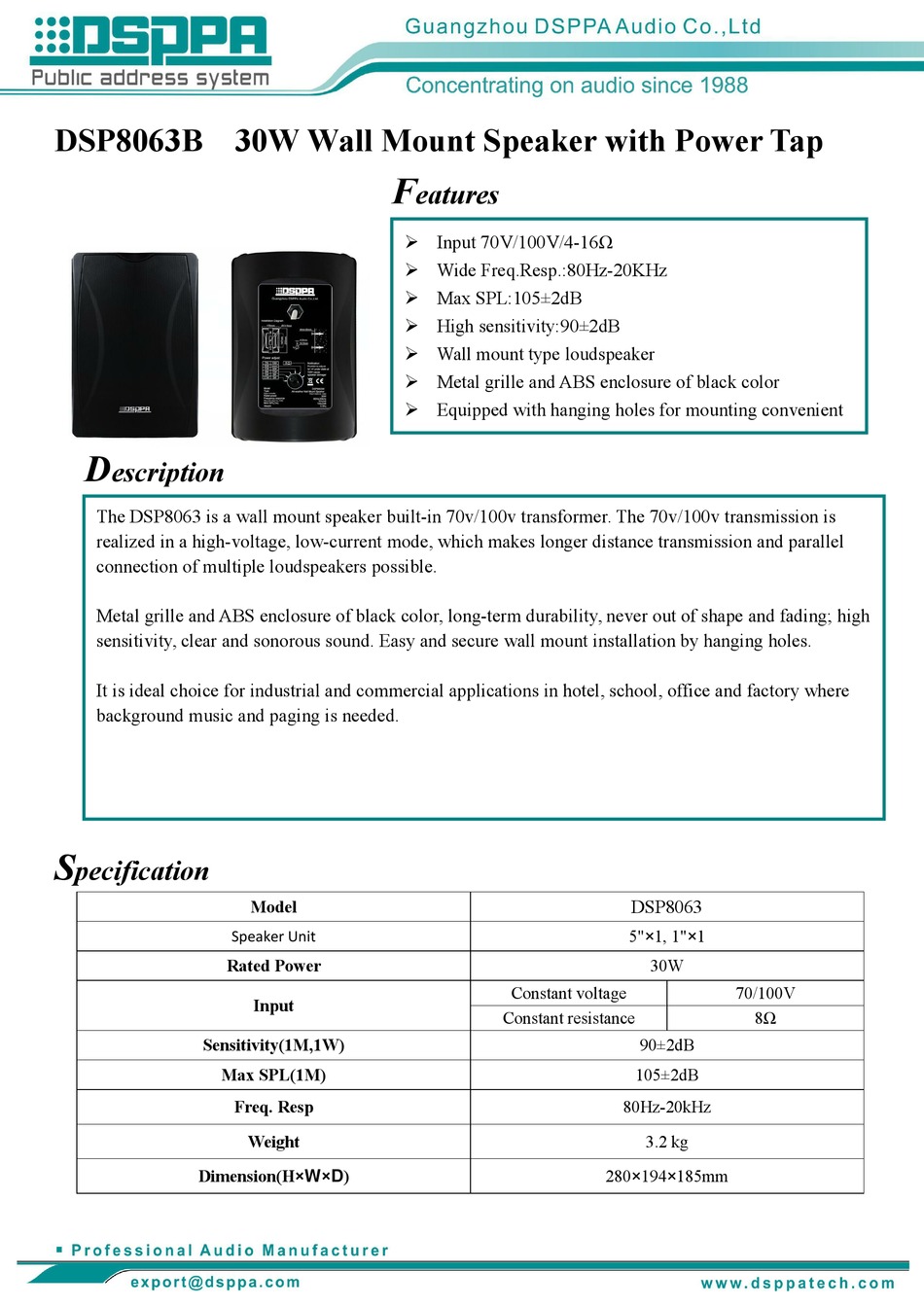

DSPPA DSP8063B Quick Start Manual

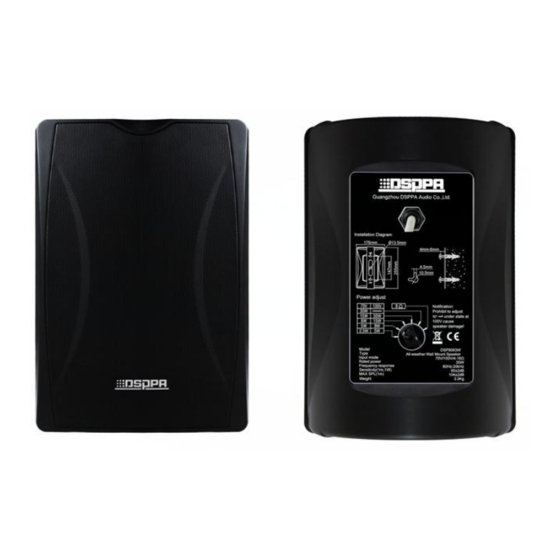

DSP8063B 30W Wall Mount Speaker with Power Tap
D
escription
The DSP8063 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transmission is
realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel
connection of multiple loudspeakers possible.
Metal grille and ABS enclosure of black color, long-term durability, never out of shape and fading; high
sensitivity, clear and sonorous sound. Easy and secure wall mount installation by hanging holes.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where
background music and paging is needed.
S
pecification
Rated Power
Sensitivity(1M,1W)
Max SPL(1M)
Dimension(H×W×D)
F
 Input 70V/100V/4-16Ω
 Wide Freq.Resp.:80Hz-20KHz
 Max SPL:105±2dB
 High sensitivity:90±2dB
 Wall mount type loudspeaker
 Metal grille and ABS enclosure of black color
 Equipped with hanging holes for mounting convenient
Model
Speaker Unit
Input
Freq. Resp
Weight
eatures
Constant voltage
Constant resistance
DSP8063
5"×1, 1"×1
30W
70/100V
8Ω
90±2dB
105±2dB
80Hz-20kHz
3.2 kg
280×194×185mm
