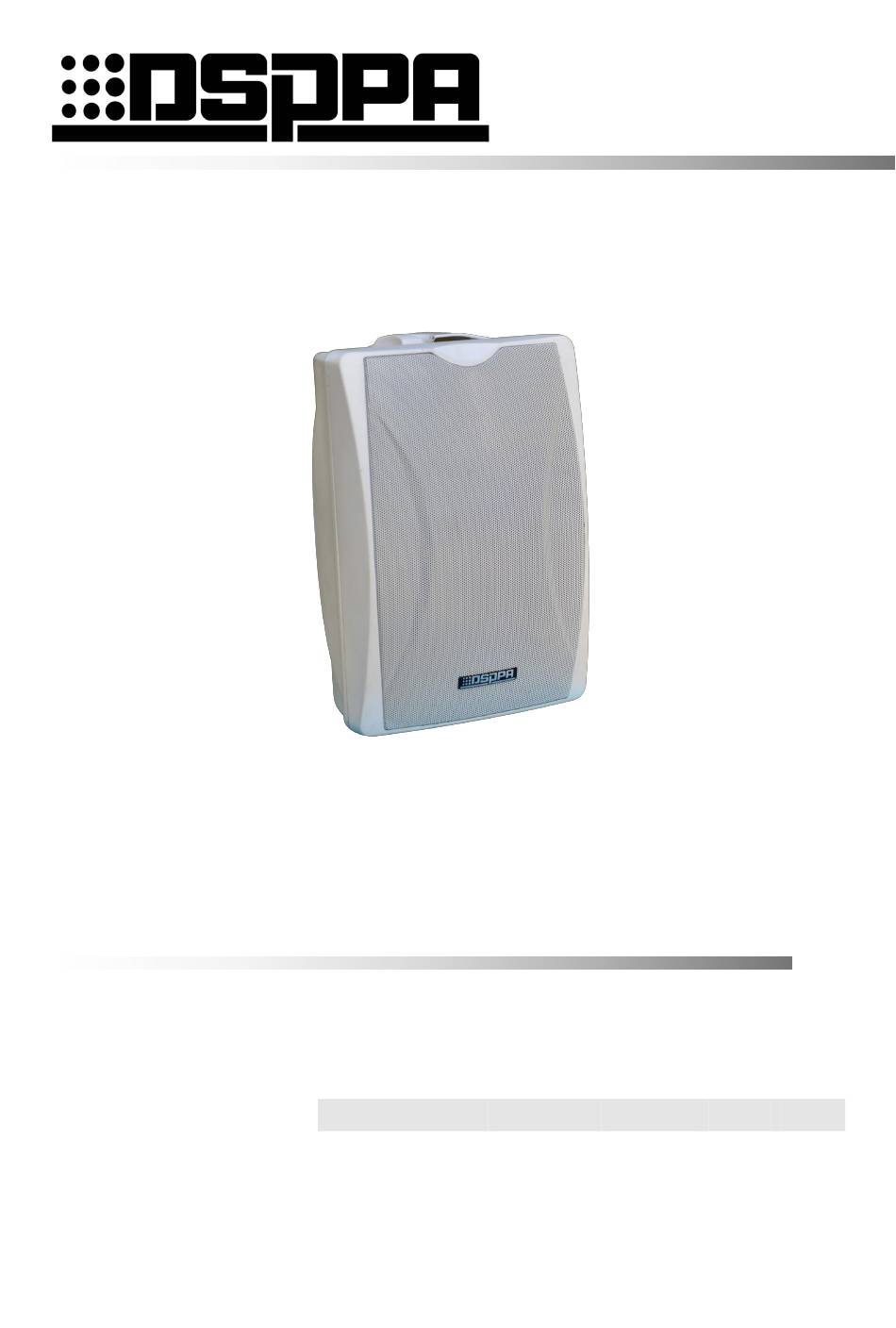

- Page 1 MAG6463 User Manual Thank you for using our DSPPA public address system. Please read this User Manual carefully to make better use of this equipment. G u a n g z h o u D S P PA A u d i o C o . , L t d .
- Page 2 This page is left blank for users’ notes...
-
Page 3: About The Instructions
About the instructions The instructions are used from the development completion date of the four-way network public 6463 The instructions include product introduction, precautions address terminal MAG for use, instructions for system connection, instructions for product use, and technical indicators of the product and other contents of the four-way network public address terminal. - Page 4 Precautions Please carefully read the following careful prior to operation and use. Warning In order to avoid the possible personal injuries, equipment or property loss to you and others surrounding, please comply with the following basic precautions. These precautions include but are not limited to the following cases: Power / power cord place the equipment in the extremely cold or When the power cord plug is unplugged,...
- Page 5 immediately disconnect the power supply. Do not press the body on the equipment, or place any heavy object on it. Avoid overexertion during button or switch operation or machine connection. Please do not open Please do not open the machine cover plate at discretion, so as to prevent electric shock.
- Page 6 II. Introduction of functions............................1 2.1 Rear panel............................... 1 III. Connection legend..............................3 3.1 Schematic diagram of application of MAG6463 in the system..............3 3.2 Schematic diagram of connection of interface of MAG6463................ 3 IV. Schematic diagram of installation...........................5 Packing list..................................7 Performance specification.............................7...
-
Page 7: Product Description
I. Product description 1.1 About MAG6463 wall mount IP speaker MAG6463 wall mount IP speaker networked speaker is a networked all-digital analog-digital conversion signal processor with high fidelity speaker based on TCP/IP transmission protocol, so as to realize modern network display terminal with the overall design of the processor and sound box. Dual network redundancy design. - Page 8 If the network upgrade crashes, press and hold the auxiliary upgrade key when the power is off, then turn on the power and release the key after 5 seconds, so as to re-upgrade. 100V Audio Input Interface (not opened to the machine) 100V audio signal connected with the third party system power amplifier. MAG6463 Network PA System...
- Page 9 2×25W digital power amplifiers are built in the machine, and the power of the output port is 25W. It is used to connect 1 constant resistance (4Ω) sound box. 10 AC 220v power cord Working power supply MAG6463 Network PA System...
- Page 10 Terminal Terminal Instruction: 1. Only the schematic description for connection of rough application of MAG6463 speaker is made in the above figure. For connection of the whole system, please refer to operation instructions for the networked control host. 2. It is illustrated by examples in the above figure. For specific connections, please refer to the schematic diagram of system connection.
- Page 11 AUDIO INPUT Network Speaker 网络化音箱 MAG6463 AUX OUT SPEAKER OUTPUT 4Ω, 25W AUX IN 广州市迪士普音响科技有限公司 Guangzhou DSPPA Audio Co.,Ltd. CD Player ~220V/50Hz POWER /100W CD/MP3 PLAYER REPEAT POWER 电源 电源 MAG 6463 network speaker is with 100V audio input port to access( For example): Audio of fire emergency PA system or multimedia system.
- Page 12 Network PA System IV. Schematic diagram of installation 2-M8×50mm expansion bolt 2-M8×50mm膨胀螺栓 MAG6463 Network PA System...
-
Page 13: Safety Precautions
In case of any failure in the warranty period, please contact service personnel (or distributor) of our company for service. The company shall not be made liable for damages due to unauthorized dis-assembly or maintenance or service by unauthorized personnel. MAG6463 Network PA System... -
Page 14: Packing List
2P green plug SY535 cable/3000mm/8 core network cable Mounting bracket Instructions Guarantee card Conformity certificate Performance specification Model MAG6463 Rated output rate 25W × 2 Output mode 4Ω constant resistance Auxiliary output level ≥900 mV MIC: ≤5mV (imbalance) Minimum source electromotive force Circuit: ≤350mV (imbalance) - Page 15 Therefore, it is required to place the power socket at the position convenient for swap operation of the power cord. Guangzhou DSPPA Audio Co., Ltd.
