DSPPA DSP8064B Quick Start Manual

Description

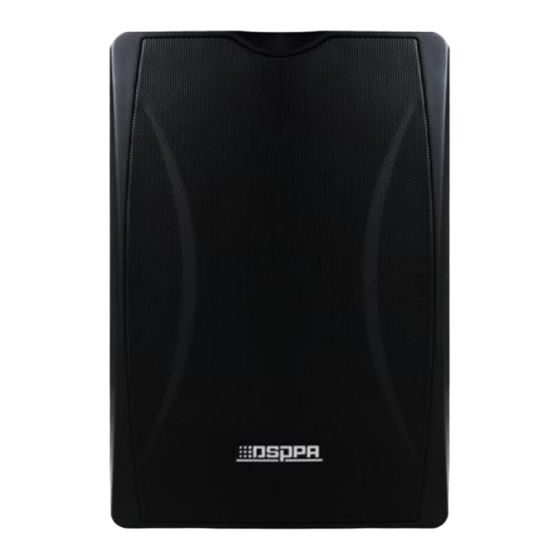

The DSP8064 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transmission is
realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel
connection of multiple loudspeakers possible.
Metal grille and ABS enclosure of black color, long-term durability, never out of shape and fading; high
sensitivity, clear and sonorous sound. Easy and secure wall mount installation by hanging holes.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where
background music and paging is needed.

Features

 Input 70V/100V/8Ω
 Wide Freq.Resp.:65Hz-20KHz
 Max SPL:107±2dB
 High sensitivity:91±2dB
 Wall mount type loudspeaker
 Metal grille and ABS enclosure of black color
 Equipped with hanging holes for mounting convenient

Specifications

Sensitivity(1M,1W)
Dimension(H×W×D)
conference@dsppa.com
40W Wall Mount Speaker with Power Tap
Model
Speaker Unit
Rated Power
Input
Max SPL(1M)
Freq. Resp
Weight
/ www.dsppacs.com
DSP8064B
Constant voltage
Constant resistance
The specifications will be subject to change without prior notice.
Copyright © Guangzhou DSPPA Audio Co.,Ltd All rights reserved.
DSP8064
6.5"×1, 1"×1
40W
70/100V
8Ω
91±2dB
107±2dB
65Hz-20kHz
4.6 kg
310×215×203mm
