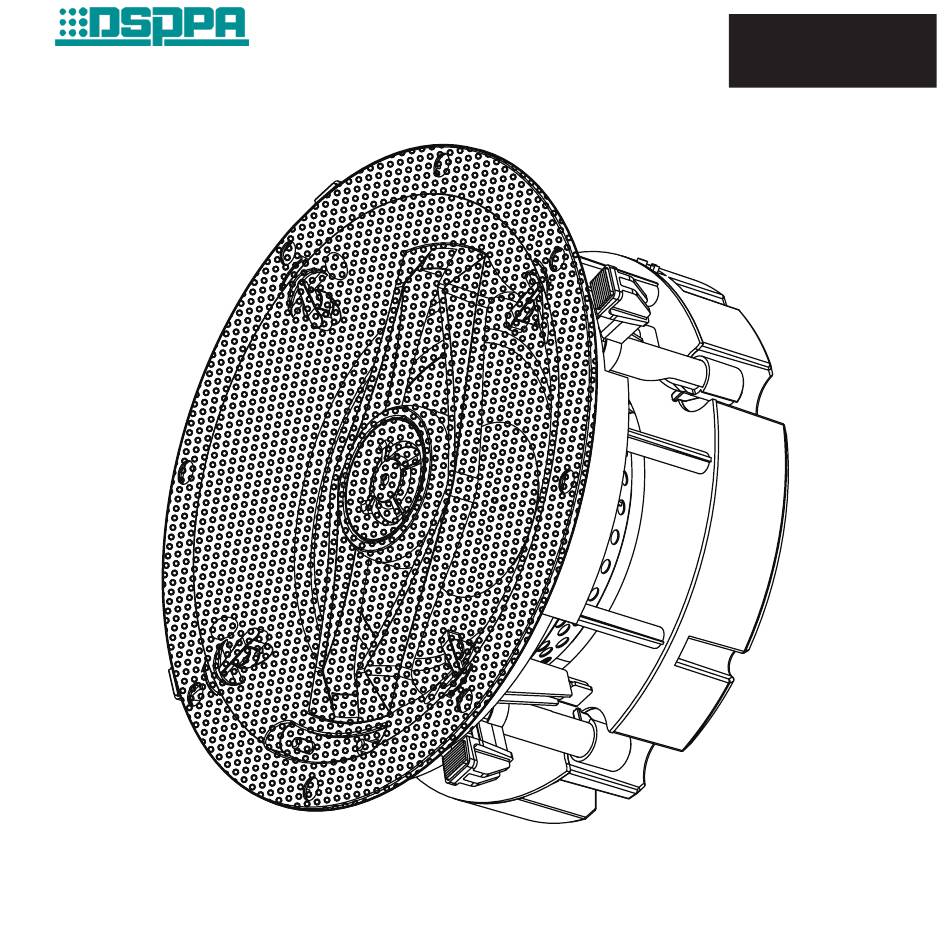

- Page 1 DW2235 User Manual 6.5” FIBER GLASS IN-CEILING WIRELESS SPEAKERS...
- Page 2 Wireless Spotify AirPlay Multi-Room Internet Radio www.arylic.com...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..................................1 2. What's in the Box ................................1 3. Main Features .................................2 4. Specification ..................................3 5. Interface...................................4 6. Installation ..................................5 7. How to Use ..................................6 7.1 App Download ................................6 7.2 Connection ................................7 7.2.1 Option 1 - Connection via App .........................7 7.2.2 Option 2 - Connection via LAN ........................8 7.2.3 Option 3 - Bluetooth pair ..........................8 7.3 App features ................................9... -
Page 4: Introduction

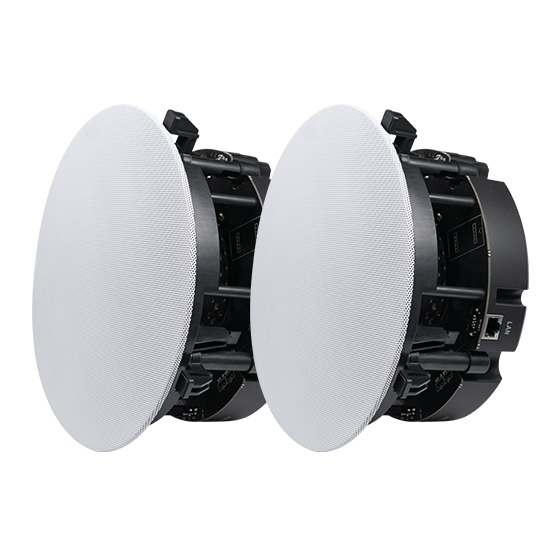

1. Introduction DW2235 is a 2-way 6.5” ceiling speaker with 35W WiFi and Bluetooth amplifier built-in. You can stream music from your smart device, NAS or streaming services such as Spotify, Tidal, Deezer, Qobuz, Amazon Music and others by 4Stream APP, Airplay, Bluetooth or other DLNA apps. By adding multiple DW2235 to your network you can setup a wireless multiroom whole house audio system, it will give you totally new and great experience to play and enjoy your music. -
Page 5: Main Features
3. Main Features ● 6.5” Kevlar bass cone driver rubber overhang. ● 1” aluminum dome driver EOS waveguide design. ● 35W LF @4ohm, 15W HF@8ohm full digital amplifier. ● Can hook up a slave speaker to become stereo speakers. ● Streaming music via network without distance limitation or Bluetooth 5.0 up to 15 meters. ●... -
Page 6: Specification
4. Specification Master Speaker (Stereo set / Mono) Connections Power Supply 24V/4.16A AUX (3.5mm) Max 1V RMS input Audio Input Bluetooth 5.0 AAC FLAC Audio Output Speaker out WiFi 2.4G Network RJ45 Switch Stereo / Mono Output: Stereo: Master speaker output Right channel, Stereo / Mono Switch Slave speaker output Left channel Mono: Left + Right Channel for both speakers... -
Page 7: Interface
5. Interface Master Speaker (Stereo set / Mono): AUX in Mode Stereo/Mono 24V DC IN 1. Aux in: Connection to external audio source 2. Mode button: Short press to switch input source Short press twice to reset WiFi/BT connection Short press three times to do factory reset Long press to turn off the device, press again to turn on 3. -
Page 8: Installation
6. Installation Tools needed for installation Speaker wire ● Pencil ● Wire cutter ● Utility knife To determine the length and the gauge of speaker wire, you will need to - Measure the distance from the receiver/ ● Drill ● Philips-head ●... -
Page 9: How To Use
STEP 3 STEP 4 Your in-ceiling speakers come from the factory with the tweeter Tighten the dog-ear brackets by simply turning the facing straight out from the baffle. This will result in the overall screws on the speaker's front baffle. Use a Phillips head smoothest response. -
Page 10: Connection
7.2 Connection There is another way to setup Wifi if the above 7.2.1 First time usage & BLE WiFi Setup method has failed: 1) Hold the Mode button then plug in the power cable. 1. Hold the Mode button then plug in the power cable. 2) The LED light will start flashing, release the button and 2. -
Page 11: Option 2 - Connection Via Lan
7.2.2 Connection via LAN Plug in the wired cable to the RJ45 Ethernet, the device will show on the app in about 10 seconds. (Note: The mobile phone and the device must be in the same network) 7.2.3 Bluethooth To use Bluetooth, please swtich to bluetooth via app or by remote controller, then find bluetooth device SoundSystem_ XXXX from your phone bluetooth setting and pair it . -
Page 12: App Features
7.3 App Features 7.3.1 Device setting Rename: Change the device name. Speaker info: Display device information like IP address, Mac address, SSID, firmware version, factory reset, etc. Alarm Clock: Setup up to 4 different alarm clocks with music of your choice. Preset Content: 10 Preset content buttons. -
Page 13: To Play Music From Nas
7.3.3 To Play Music From NAS Please note that our system only support NAS with DLNA feature. 7.3.4 To Play Line in Mode Connect the AUX cables to the TV or other audio sources. Choose line in mode on the application or remote control. 7.3.5 To Play Bluetooth Mode Choose the Bluetooth mode on the application or remote control, the LED will change to blue. -
Page 14: Streaming Services
7.4 Streaming Services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform. 7.4.1 Spotify To use Spotify, you have to own spotify premium account. You will find the device in the device list on the Spotify application and choose the device you want to play. NOTE: one Spotify account can only streaming to one device at a time. -
Page 15: Airplay
7.4.2 AirPlay The Device Supports AirPlay1, You can Choose the AirPlay and Play Music. -
Page 16: Qplay
7.4.3 Qplay Our Devices Support QQ Music using the Qplay protocol, you have to turn on the Qplay in the QQ Music player setting and then find the device in the Qplay list. 7.5 Multiroom and Multizone Users can group multiple rooms and zones on the application. For example, you can group devices 1, 2 and 3 to play the same music in sync, or group devices 1 and 2 as zone A and devices 3 and 4 as zone B, and play different music in zones A and B. -
Page 17: Add / Remove Device To Multiroom
7.5.1 Add / Remove Device to Multiroom In order to add device to multiroom function, click on the “+” mark of the device you want to be the master device. A list of available devices will pop out and you can select the device you want to add as slave device. Click the Done button when finished. -
Page 18: Left And Right Channel
7.6 Left and Right Channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel on device A and choose right channel on device B, and group them together and play in sync to make stereo. 7.7 Preset There are 6 buttons on the remote control, users can preset play lists (Only the lists with speaker icon can preset) on... -
Page 19: Restore Factory Setting
7.9 Restore Factory Setting Two methods to restore device to factory setting Method 1: Quickly press the Mode button 3 times to restore factory settings. Method 2: Go for "App setting - speaker info - restore factory setting" 7.10 Firmware Update The application will notify you in app when there is a new fireware version available. -
Page 20: Play On Pc
8. Play on PC There are Several Tools to Play Music from the PC 8.1 To Play Music From iTunes on Mac and Windows PC Our devices can stream audio sources from local storage, media library in Mac and Windows PC and online services from iTunes. -
Page 22: Faq
Q: Do your devices support airplay and third-party DLNA apps? A: Yes. They support airplay and third - party apps like Bubble UPNP... Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal. - Page 24 The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposed. DSPPA assumes no responsibility for any differences between the product mentioned in this guide and the product you may have.
