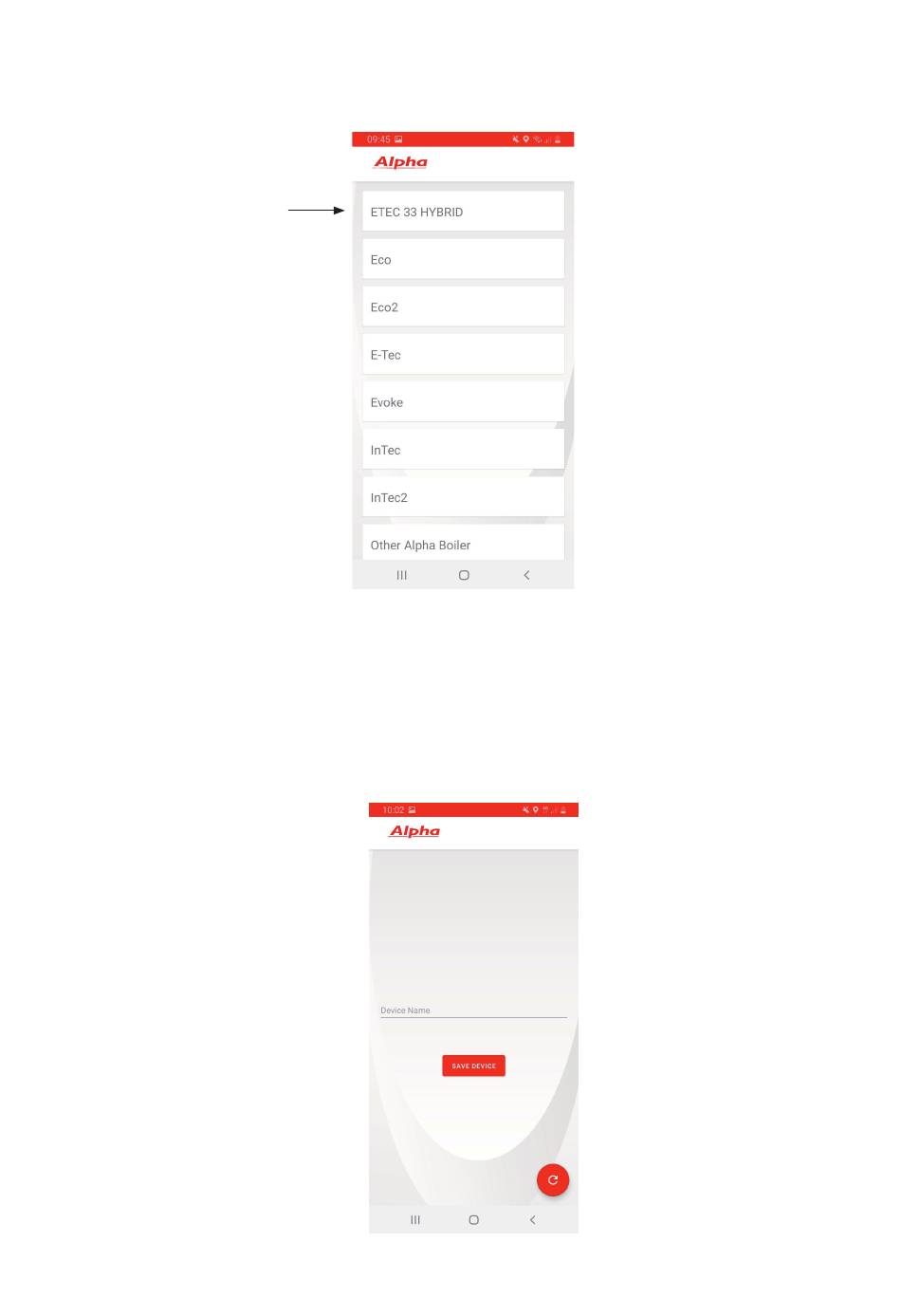

4. Select the correct boiler model from the provided list (Fig.4.3).
The boiler name is found on the data badge and front panel name plate (Ref.1, Fig. 4.8).
Choose the Wi-Fi* network you want to connect the Gateway receiver to and enter the correct password. After connection
to the Cloud, a message will indicate the presence of a new Smartech, press 'Next' and enter the name you want to give to
your Smartech (Fig.4.4). Complete the installation by following the screen guides.
*Smartech Plus is compatible with the frequency 2.4GHz 802.11b/g/n.
If you have a dual-band router, 2.4GHz and 5GHz, Smartech can only be connected to 2.4GHz networks. In the event of
frequently losing connection, it is recommended to create a 2.4GHz host network that Smartech can be connected to and
any zone expansions. The host network must not require any web login.
Fig. 4.3
Fig. 4.4
Alpha Smartech Plus - Start-Up
7
