10 CLIMATIC CURVE SETTING

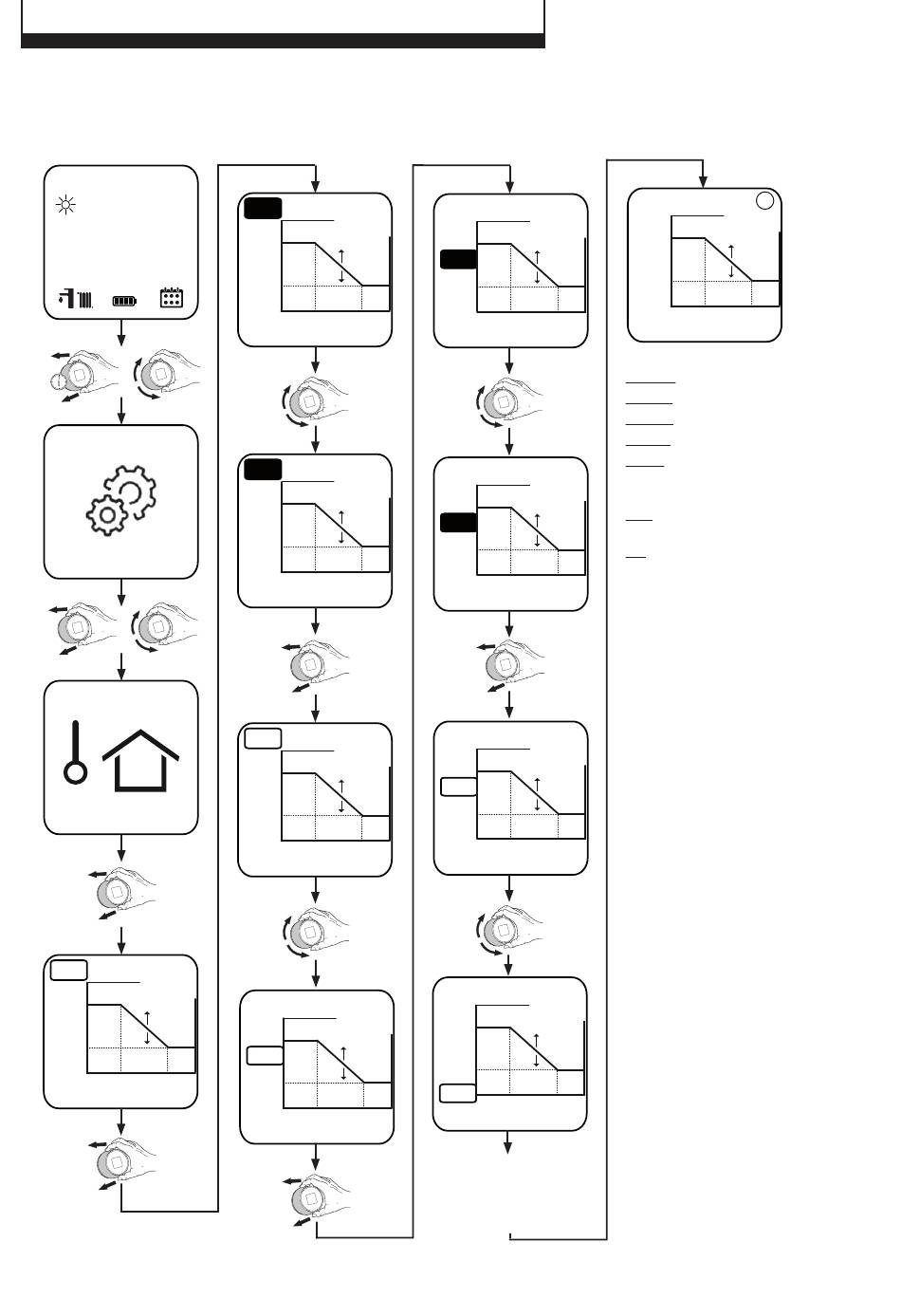

Select the 'CURVE' screen to enable/disable (disabled by default) climatic offsetting with external temperature and to set up
the relevant operation parameters. See Fig. 10.1.
The offset curve establishes how the system flow temperature TM is corrected according to the external temperature TE.
Note: The external temperature value TE is detected by the external units probe.
FRI 12:08
20
°
15°
.
4
21.5
FRI 12:08
SETTINGS
FRI 12:08
CURVE
<
OFF
03
TM
MAX
40
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
16
Alpha Smartech Plus - Climatic Curve Setting
<
OFF
03
TM
MAX
40
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
<
ON
03
TM
MAX
40
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
<
ON
03
TM
MAX
40
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
<
ON
03
TM
MAX
40
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
Fig. 10.1
<
ON
03
TM
MAX
40
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
<
ON
03
TM
MAX
45
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
<
ON
03
TM
MAX
45
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
<
ON
03
TM
MAX
45
OFFSET
TM
MIN
20
TE TE
MIN MAX
-05 025
Perform the same
procedure described for the
previous value, also for the
other numerical values on
the screen.
<
ON
02
TM
MAX
45
OFFSET
TM
MIN
25
TE TE
MIN MAX
-03 030
TM max: Max. flow temperature
TM min: Min. flow temperature
TE max: Max. external temperature
TE min: Min. external temperature
Offset:
System flow temperature
increase/decrease
calculated by the system
OFF:
Disables operation with the
external probe
ON: Enables operation with the
external probe
RECOMMENDED CURVE SETTING
VALUES
Under floor heating systems:
TMmin = 25°C
TMmax = 40°C
Fan coil heat emitters:
TMmin = 35°C
TMmax = 50°C
Radiator system (existing radiators):
TMmin = 40°C
TMmax = 60°C
Replacement radiator systems
(correctley designed):
TMmin = 35°C
TMmax = 55°C
The outside temperature settings:
TEmin = 0°C
TEmax = 20°C
