17 DIAGNOSTICS

Select the 'DIAGNOSTIC' window to view some system information including MAC address of the radio module, quality of
the Bluetooth signal, current status of the connection between Gateway receiver and the Smartech unit, battery level and
HW and SW versions.
This window is also used if you need to make a new pairing between receiver and Smartech. See Fig. 17.1.
FRI 12:08
20
15°
21.5
FRI 12:08
SETTINGS
FRI 12:08
DIAGNOSTIC
ADDRESS
D0:CF:5E:9E:76.29
SIGNAL STRENGHT
STATUS
DISCONNETED
BATTERY
°
ADDRESS
D0:CF:5E:9E:76.29
.
SIGNAL STRENGHT
4
STATUS
PAIRING
BATTERY
HW VERSION:
IMMERGAS STD 2.0
SW VERSION:
BLE CONNECTIONS:
BLE STATUS:
NOT START:0
NA
3.24
NA
3.24
1.12
00000
Note: The 'Signal strength' field indicates the quality of
the Bluetooth transmission between the boiler and the
Smartech. It is recommended to use this indication when
looking for the proper position of the Smartech. The
indications provided are as follows:
Excellent: Stable and strong signal
Good: Stable signal
Poor: Weak signal, the Smartech should be moved closer
to the boiler
Disconnected: Signal quality is insufficient, move the
Smartech closer to the boiler.
Note: The maximum communication distance between
the boiler and the Smartech is 10 metres in open field.
The maximum actual distance might be shorter if there are
walls, ceilings or obstacles between the two items.

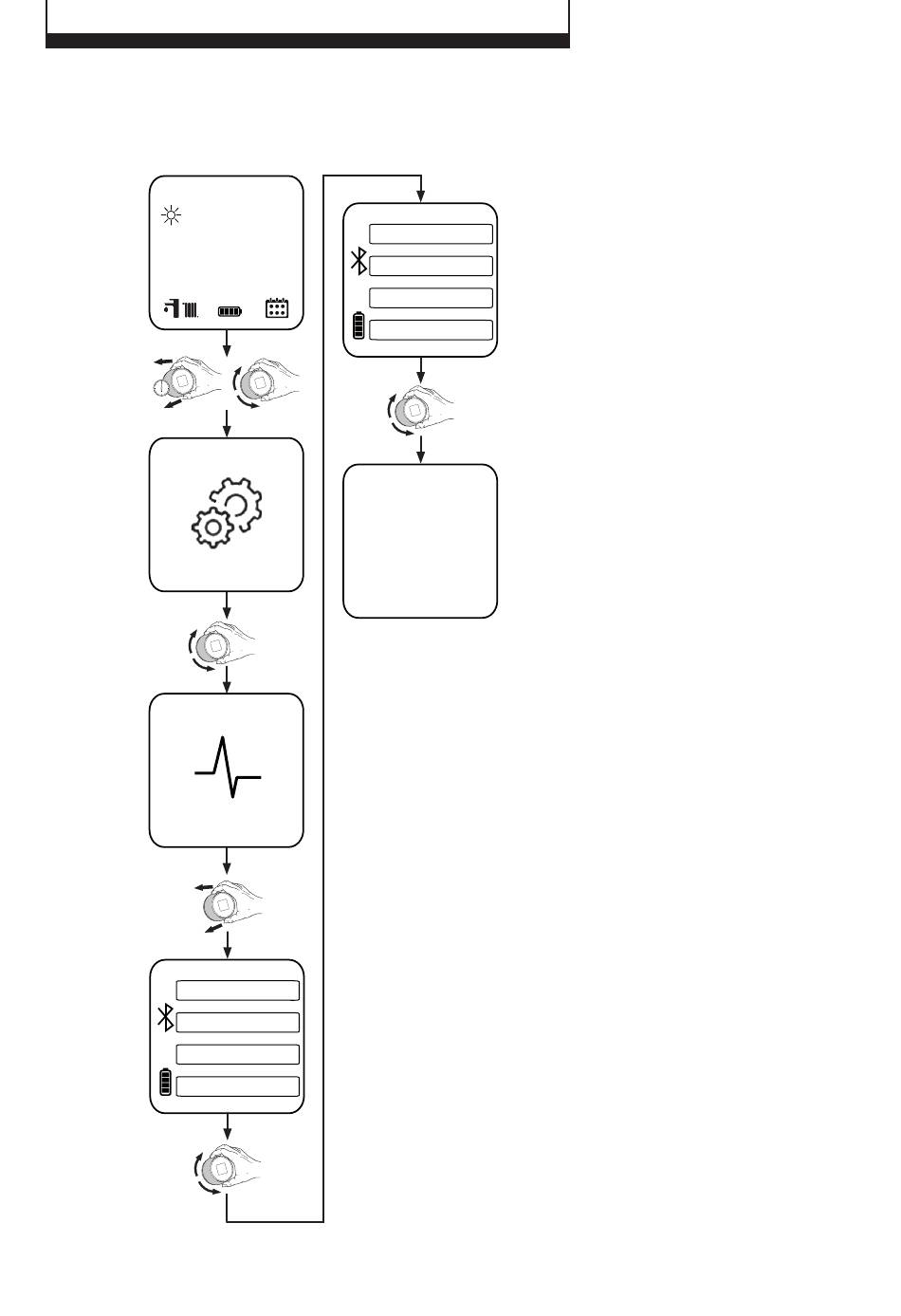

Fig. 17.1
