Alpha Smartech Plus

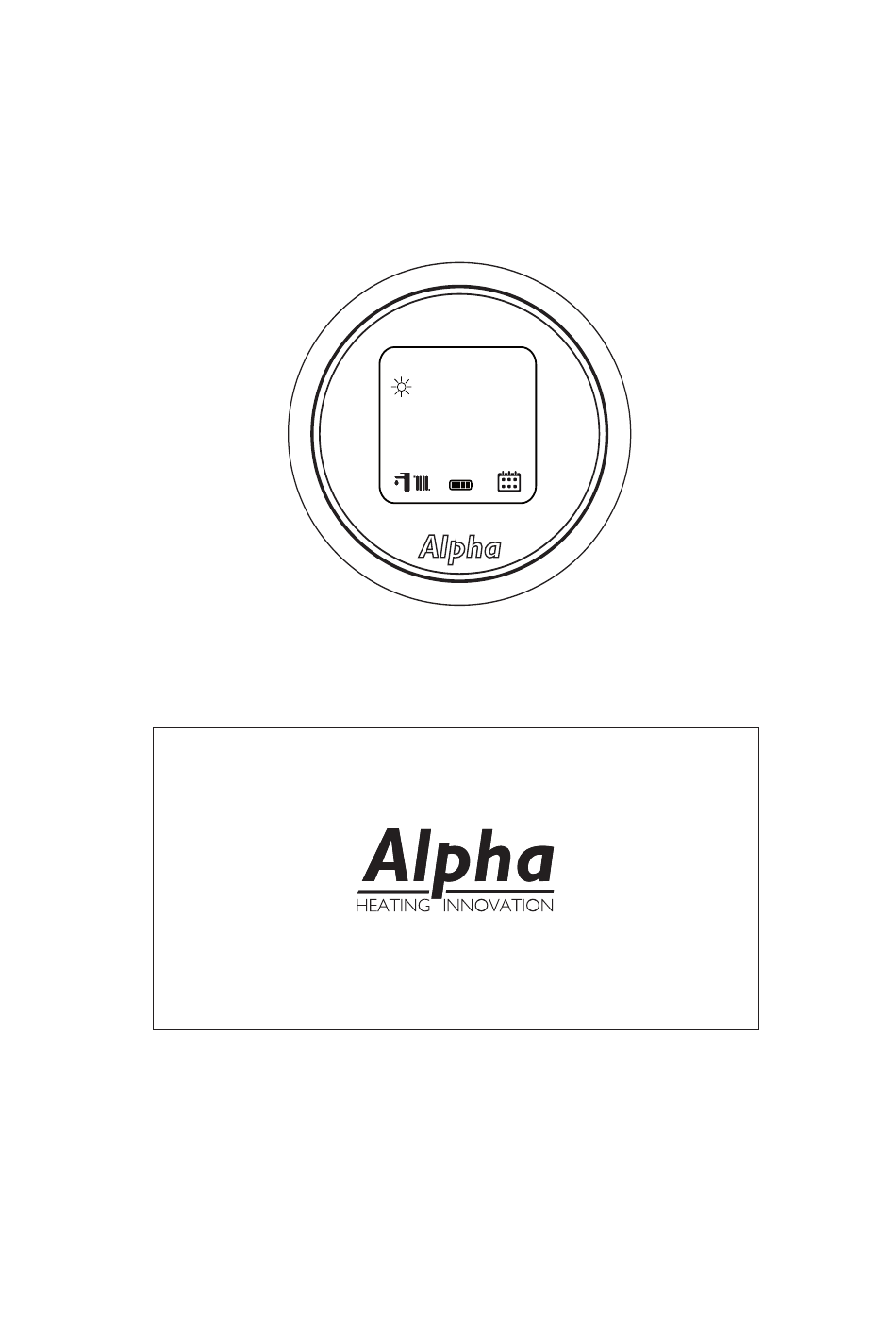

Intelligent Wi-Fi Enabled Thermostat
FRI 12:08
20
°
15°
.
4
21.5
For Technical help or for Service call ...
ALPHA HELPLINE Tel: 0344 871 8764
website: www.alpha-innovation.co.uk
Nepicar House, London Road,
Wrotham Heath, Sevenoaks,
Kent TN15 7RS
Leave these instructions with the User
Part No. 1.046669 rev. ST.005903/000
These instructions have been carefully prepared but we reserve the right
to alter the specification at any time in the interest of product improvement.
1122/D444
© Alpha Therm Limited 2022.
Advertisement
Table of Contents
Related Manuals for Alpha Smartech Plus
Summary of Contents for Alpha Smartech Plus
- Page 1 Intelligent Wi-Fi Enabled Thermostat FRI 12:08 ° 15° 21.5 For Technical help or for Service call ... ALPHA HELPLINE Tel: 0344 871 8764 website: www.alpha-innovation.co.uk Nepicar House, London Road, Wrotham Heath, Sevenoaks, Kent TN15 7RS Leave these instructions with the User Part No.
-
Page 2: Table Of Contents
18. Restoring default settings ................24 GENERAL DESCRIPTION The Smartech Plus controller is an intelligent Wireless Wi-Fi heating control unit used to adjust the system settings, time programs, and temperature control and functions. When used with Alpha boiler models with the BUS connection the unit has full weather and load compensation control. -
Page 3: Main Screen
Navigation through the various windows and settings may be carried out by rotating and pressing the outer body of the thermostat as shown in Fig. 2.2. Rotate Press Fig. 2.2 Press for three seconds Wait five seconds Alpha Smartech Plus - Main Screen... -
Page 4: Gateway Receiver Led Description
Wi-Fi network is active and verify that you have entered the correct password in the receiver. • Steady on: the receiver is connected to the Wi-Fi network and Internet and is working normally. Alpha Smartech Plus - Gateway Receiver... -
Page 5: Start Up
• Connect the Gateway receiver to the system and power it on; • Insert the batteries in the Smartech unit; • Once the Alpha logo is displayed, keep the Smartech pressed until the list of systems is displayed; • Rotate the Smartech to the desired type of system;... - Page 6 Note: It is recommended to keep a record of the password for future reference and service support. 3. Associating APP to Smartech Plus Note: Before performing this operation, make sure you have the name and password of the Wi-Fi network you want to connect to and ensure this network has an Internet connection.
- Page 7 Smartech (Fig.4.4). Complete the installation by following the screen guides. *Smartech Plus is compatible with the frequency 2.4GHz 802.11b/g/n. If you have a dual-band router, 2.4GHz and 5GHz, Smartech can only be connected to 2.4GHz networks. In the event of frequently losing connection, it is recommended to create a 2.4GHz host network that Smartech can be connected to and...
- Page 8 If no device is found, perform the manual configuration procedure (Fig. 4.5 and Fig. 4.6), using the password 12345678. Fig. 4.5 Fig. 4.6 If a warning appears on the telephone of no Internet connection, press 'maintain WI-FI connection' (Fig. 4.7). Fig. 4.7 Alpha Smartech Plus - Start-Up...
- Page 9 Pn max 32,0/28,0 KW PMS 3 bar PMW 10 bar D 16,3 l/min TM 90°C 0 - 20% H2 G20 NOx Class 6 IPX5D 230 V ~ 50 Hz 115 W 0476 CONDENSING XXXX XXXX Fig. 4.9 Alpha Smartech Plus - Start-Up...
-
Page 10: Language Setting
LANGUAGE SETTING SELECT THE 'LANGUAGE' WINDOW TO SET UP THE LANGUAGE OF THE SMARTECH FRI 12:08 ° 15° 21.5 FRI 12:08 SETTINGS FRI 12:08 LANGUAGE ENGLISH Fig. 5.1 Alpha Smartech Plus - Language Setting... -
Page 11: Desired Room Temperature Setting
ROOM TEMPERATURE SETTING The room temperature detected by the sensor within the Smartech Plus thermostat is indicated at the centre of the display. The set temperature, which can be changed by rotating the head of the device, is displayed under the detected temperature. -
Page 12: Operating Mode
Select the 'MODE' window to set up the operating mode (Stand-by, Summer, Winter). See Fig. 7.1. FRI 12:08 < ° 15° WINTER SUMMER 21.5 FRI 12:08 FRI 12:08 ° 15° MODE 21.5 < WINTER SUMMER < WINTER SUMMER Fig. 7.1 Alpha Smartech Plus - Operating Mode... -
Page 13: Date And Time Setting
09 : 57 SETTINGS 01 - 01 - 2017 FRI 12:08 < 11 : 43 DATE 23 - 07 - 2020 < BACK 09 : 57 01 - 01 - 2017 Fig. 8.1 Alpha Smartech Plus - Date and Time Setting... - Page 14 23 - 07 - 2020 < BACK < 09 : 57 < 09 : 57 01 - 01 - 2017 11 : 57 01 - 01 - 2017 01 - 01 - 2017 Fig. 8.2 Alpha Smartech Plus - Date and Time Setting...
-
Page 15: Setting Up The System Flow And Dhw Temperature
2 - Read DHW temperature display THERMOSTAT 3 - Read system flow temperature display 54 43 4 - Maximum system flow temperature (settable) < < 42 42 44 42 54 43 54 43 Fig. 9.1 Alpha Smartech Plus - System Flow and DHW Temperature Setting... -
Page 16: Climatic Curve Setting
The outside temperature settings: TEmin = 0°C TEmax = 20°C < < < OFFSET OFFSET OFFSET Perform the same procedure described for the previous value, also for the other numerical values on the screen. Fig. 10.1 Alpha Smartech Plus - Climatic Curve Setting... -
Page 17: Setting Up The Weekly Program
< < ° 15° 21.5 FRI 12:08 < PROGRAM FRI 12:08 < < < Perform the same procedure described for the previous value, also for the other values on the screen. Fig. 11.1 Alpha Smartech Plus - Weekly Program Setting... -
Page 18: Setting Up Daily Calendars
° 06:00 - 08:00 25. ° 06:00 - 08:00 25. ° Perform the same procedure described for the previous value, also for the other values on the screen (time and temperature). Fig. 12.1 Alpha Smartech Plus - Daily Calendar Setting... -
Page 19: Calendar Copy And Paste Function
07:30 - 16:30 21. ° 21:00 - 24:00 20. ° 16:30 - 21:00 23. ° 16:30 - 21:00 23. ° 21:00 - 24:00 20. ° 21:00 - 24:00 20. ° Fig. 13.1 Alpha Smartech Plus - Calendar Copy and Paste Function... -
Page 20: Set Eco
(Temperature setting value outside the time periods set). See Fig. 14.1. FRI 12:08 ° FRI 12:08 15° 22.5 21.5 SET ECO FRI 12:08 FRI 12:08 22.5 PROGRAM SET ECO FRI 12:08 20.5 SET ECO FRI 12:08 20.5 SET ECO Fig. 14.1 Alpha Smartech Plus - Set ECO... -
Page 21: Automatic Operation Mode
Select the 'PROGRAM ON' control to activate the automatic operation mode according to the set weekly programming. See Fig. 15.1. FRI 12:08 ° 15° 21.5 FRI 12:08 PROGRAM FRI 12:08 PROGRAM ON FRI 12:08 ° 15° 21.5 Fig. 15.1 Alpha Smartech Plus - Automatic Operation Mode... -
Page 22: Manual Operating Mode
The set value remains active until it is adjusted or another program mode is activated. See Fig. 16.1. FRI 12:08 ° 15° 21.5 FRI 12:08 PROGRAM FRI 12:08 PROGRAM OFF FRI 12:08 ° 15° 21.5 Fig. 16.1 Alpha Smartech Plus - Manual Operation Mode... -
Page 23: Diagnostics
Smartech is 10 metres in open field. SIGNAL STRENGHT The maximum actual distance might be shorter if there are walls, ceilings or obstacles between the two items. STATUS DISCONNETED BATTERY 3.24 Fig. 17.1 Alpha Smartech Plus - Diagnostics... -
Page 24: Restoring Default Settings
18 RESTORE DEFAULT SETTINGS In the event of incorrect programming of the Smartech settings, default values can be reset as follows: Enter the Diagnostic menu (Section 17) and press 5 times until the word 'DEFAULT' appears in the 'SIGNAL STRENGTH box'.
