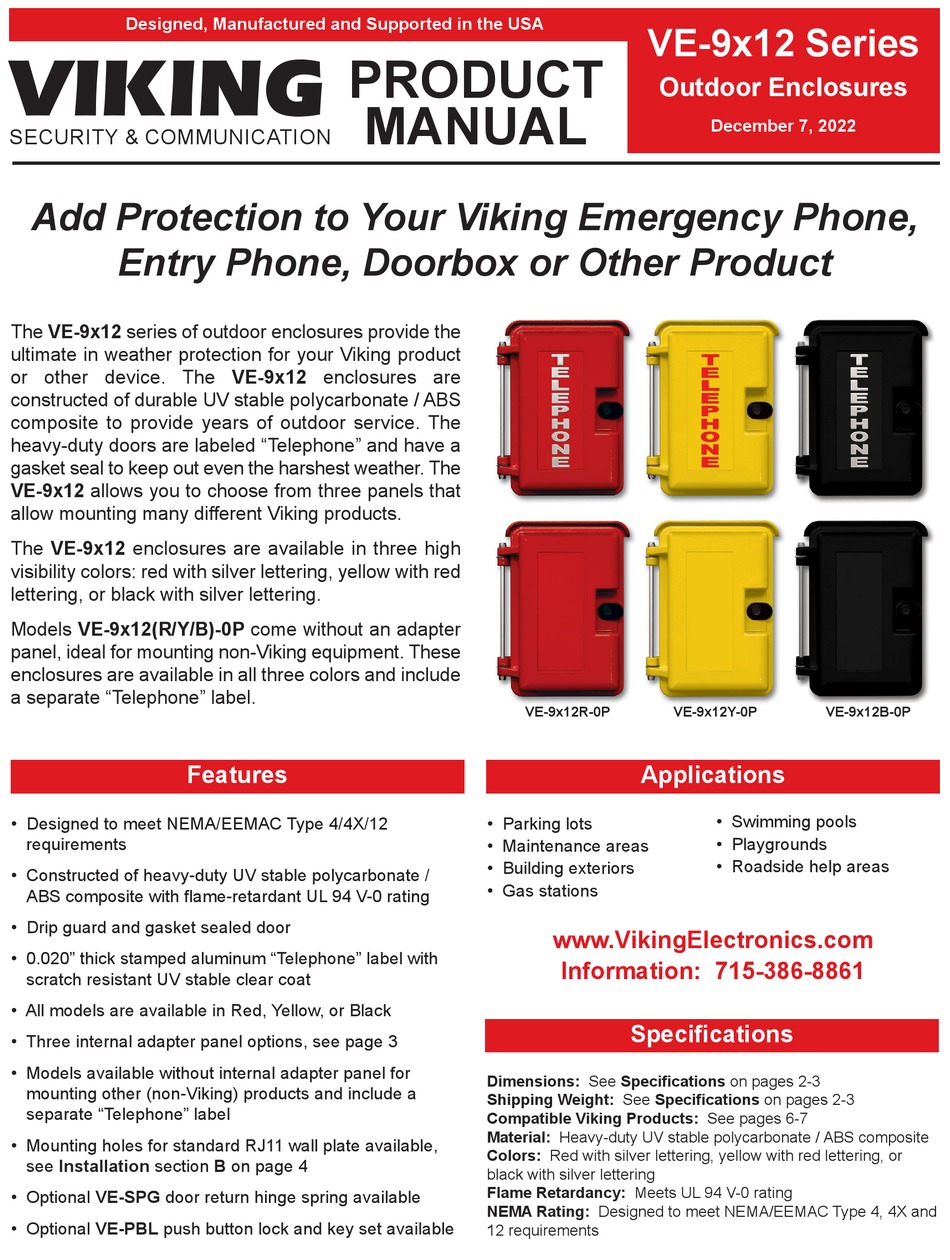

Designed, Manufactured and Supported in the USA
VIKING
SECURITY & COMMUNICATION
Add Protection to Your Viking Emergency Phone,
Entry Phone, Doorbox or Other Product
The VE-9x12 series of outdoor enclosures provide the
ultimate in weather protection for your Viking product
or other device. The VE-9x12 enclosures are
constructed of durable UV stable polycarbonate / ABS
composite to provide years of outdoor service. The
heavy-duty doors are labeled "Telephone" and have a
gasket seal to keep out even the harshest weather. The
VE-9x12 allows you to choose from three panels that
allow mounting many different Viking products.
The VE-9x12 enclosures are available in three high
visibility colors: red with silver lettering, yellow with red
lettering, or black with silver lettering.
Models VE-9x12(R/Y/B)-0P come without an adapter
panel, ideal for mounting non-Viking equipment. These
enclosures are available in all three colors and include
a separate "Telephone" label.
Features
• Designed to meet NEMA/EEMAC Type 4/4X/12
requirements
• Constructed of heavy-duty UV stable polycarbonate /
ABS composite with flame-retardant UL 94 V-0 rating
• Drip guard and gasket sealed door
• 0.020" thick stamped aluminum "Telephone" label with
scratch resistant UV stable clear coat
• All models are available in Red, Yellow, or Black
• Three internal adapter panel options, see page 3
• Models available without internal adapter panel for
mounting other (non-Viking) products and include a
separate "Telephone" label
• Mounting holes for standard RJ11 wall plate available,
see Installation section B on page 4
• Optional VE-SPG door return hinge spring available
• Optional VE-PBL push button lock and key set available
PRODUCT
MANUAL
VE-9x12R-0P
• Parking lots
• Maintenance areas
• Building exteriors
• Gas stations
Dimensions: See Specifications on pages 2-3
Shipping Weight: See Specifications on pages 2-3
Compatible Viking Products: See pages 6-7
Material: Heavy-duty UV stable polycarbonate / ABS composite
Colors: Red with silver lettering, yellow with red lettering, or
black with silver lettering
Flame Retardancy: Meets UL 94 V-0 rating
NEMA Rating: Designed to meet NEMA/EEMAC Type 4, 4X and
12 requirements
VE-9x12 Series
Outdoor Enclosures
December 7, 2022
VE-9x12Y-0P
Applications
• Swimming pools
• Playgrounds
• Roadside help areas
www.VikingElectronics.com
Information: 715-386-8861
Specifications
VE-9x12B-0P
Advertisement
Table of Contents
Related Manuals for Viking VE-9 12 Series
Summary of Contents for Viking VE-9 12 Series
- Page 1 Add Protection to Your Viking Emergency Phone, Entry Phone, Doorbox or Other Product The VE-9x12 series of outdoor enclosures provide the ultimate in weather protection for your Viking product or other device. The VE-9x12 enclosures are constructed of durable UV stable polycarbonate / ABS composite to provide years of outdoor service.
-
Page 2: Specifications
Specifications A. Enclosure Material: Heavy-duty UV stable polycarbonate / ABS composite Enclosure Shipping Weight (no adapter panel): 6.6 lbs (2.99 kg) Mounting: Mounting holes can be drilled where needed in the back of the enclosure *Conduit Openings: Conduit holes can be drilled where needed in the bottom of the enclosure * CAUTION: When warm air comes in contact with cold surfaces, such as outside walls and conduits, it causes condensation. - Page 3 B. Adapter Panels 7.08 1. Adapter Panel 1 0.203 FRONT Diameter VIEW 4 Places Material: 12 gauge aluminum 11.23 Finish: Black powder paint Adapter Panel 1 Dimensions: 7.08”W x 11.23”H x 1.25”D Adapter Panel 1 Shipping Weight: 0.8 lbs 3.30 2.50 VE-9x12(R/Y/B)-1P Shipping Weight: 7.4 lbs Minimum Internal Clearance: 5.75”W x 10.0”H x 5.25”D...
-
Page 4: Installation
Attach a standard RJ11 wall plate (not included) using (2) of the included 8-32 x 3/8 black cap screws. Step 5 Attach the compatible Viking product to the RJ11 wall plate (see page 6 for compatible products). Adapter Panel 1... - Page 5 Attach a Viking panel phone directly to the adapter panel using the installation instructions provided in the Product Manual. Adjust the Viking panel phone armored cable as shown in section a. below. Important: The cable is not adjustable on Viking panel phones with a 12”...
-
Page 6: Enclosure Material
R = Red with silver lettering Enclosure Material Y = Yellow with red lettering B = Black with silver lettering P = Glass fiber reinforced Polycarbonate / ABS Viking Products Compatible with VE-9x12(R/Y/B)-1P Compatible Adapter Compatible Adapter Product Description Color... - Page 7 Color panel phones that come with a 12” armored cable. To the Viking Product Panel right is a list of Viking panel phones that come with 36” or K-1500-7 Analog no-dial panel phone, 36” cable R/Y/B 54” armored cables. To use any of the phones listed, you will K-1900-7 Analog hot-line panel phone, 36”...
-
Page 8: Returning Product For Repair
TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
