BASIC OPERATION

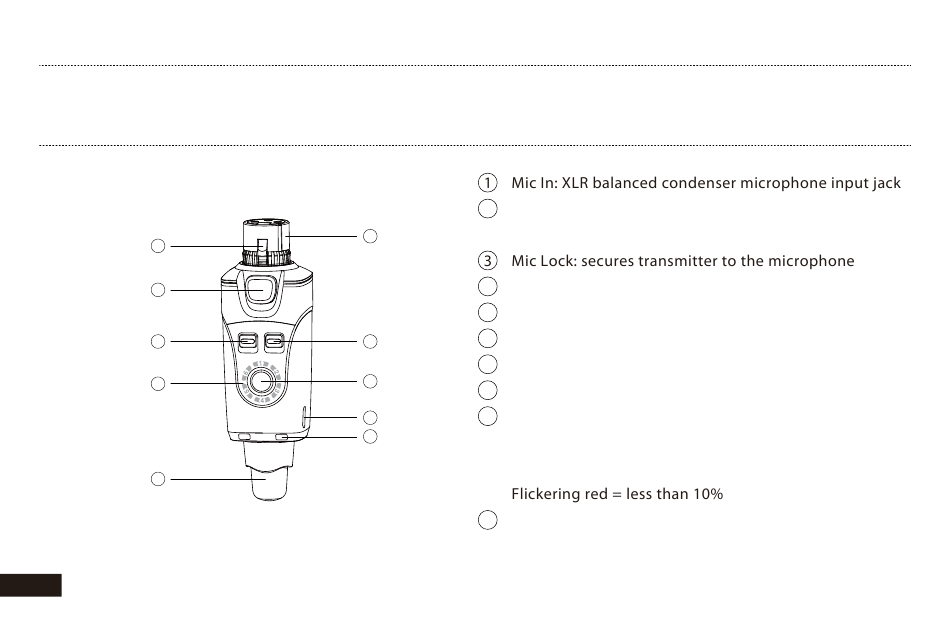

U3C TRANSMITTER
2 Spring: Circumferential ground spring providing an
accurate connection to the mating shell
1
4 Output phantom power voltage switching: 12V and 48V
5 Power switch: switches unit on/off
6 Channel status LED: indicates selected channel
5
7 Channel switch: selects Channels 1-6
7
8 USB charging port
9 Power status LED: indicates power status:
8
9
Led off = 100% ~ 30%
Solid red = 29% ~ 11%
10 Antenna.
