Summary of Contents for Xvive U4

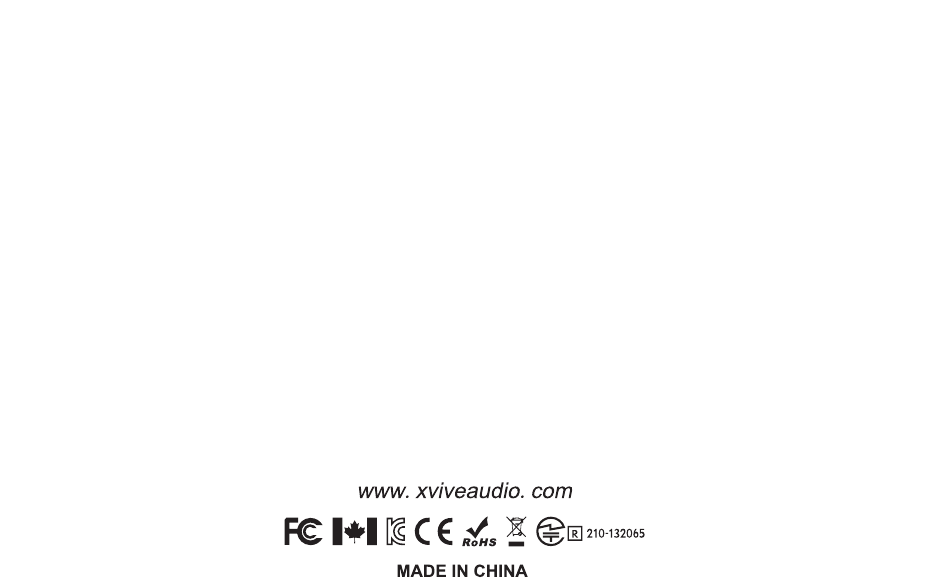

- Page 1 China Patent Numbers ZL 2016 3 0165464.8 2nd floor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: nancy@xviveaudio.com...
- Page 2 U4 SET MANUAL WIRELESS IN EAR MONITOR SYSTEM...
- Page 3 This Class B digital apparatus complies with Canadian CAUTION ICES-003. RISK OF ELECTRIC SHOCK DO NOT OPEN IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen 4e Décembre 2014: WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK: DO NOT REMOVE SCREWS. This device complies with Industry Canada licence-ex- NO USER-SERVICEABLE PARTSINSIDE.
-
Page 4: Fcc Certification
Changes or modifications not expressly approved in which can be determined by turning the equipment off writing by Xvive may void the users authority to operate and on, the user is encouraged to try to correct the this equipment. - Page 5 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS IN A SAFE PLACE WARNING: BEFORE USING YOUR XVIVE U4 MICROPHONE WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Observe all instructions carefully in the U3C set manual. 3. Do not place near heat sources, such as radiators, heat 2.
-
Page 6: Package Details
WARNING U4 SET PRODUCT INTRODUCTION LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN U4-person wireless monitoring system provides better sound feedback for stage performers and performance CAUSE PERMANENT HEARING DAMAGE. USE AS LOW quality. As a portable wireless system, you don't need to A VOLUME AS POSSIBLE. - Page 7 BASIC OPERATION U4 TRANSMITTER Input: XLR balanced input jack Spring: Circumferential ground spring providing an accurate connection to the mating shell Lock: secures transmitter Aux/Line mode: Connect to Aux or other line out Power switch: switches unit on/off Channel status LED: indicates selected channel...
- Page 8 BASIC OPERATION U4 RECEIVER Power switch: switches unit on/off Headphone Output: 3.5mm output Connect to earphones or headphones Channel status LED: indicates selected channel Channel switch: selects Channels 1-6 Volume control：Adjust the volume of headphone output RF Status LED: ON = Transmitter is on and link is established Flashing = Signal connection interference OFF = Transmitter off...
-
Page 9: Quick Start
U4 provides USB charging cable，you can connect to USB Charger Adapter or other USB charging devices Note: Turn off the power switch while charging. Please do not use U4 when charging, which may reduce battery life. Connect to the socket... - Page 10 CHANNEL SWITCH PAIR TRANSMITTER AND RECEIVER U4 has six channels. Use the channel switch button to switch the channel. Set the Receiver channel same with Transmitter. The blue Led signal on the receiver will always be on when the connection is successful.
- Page 11 QUICK START VOLUME ADJUSTING LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. ADJUST TRANSMITTER LEVELS Adjusting Gain and Listening Volume VOLUME For the best audio quality, start by adjusting SWITCH the levels from the mixer or audio source and maximizes the signal-to-noise ratio.
-
Page 12: Operation
OPERATION CREATING MONITOR WITH AUX 1. Transmitter connect Mixer Aux send 2. Trun on the Receiver, adjust the volume of the Receiver, and gradually increase from small to large to reach the appropriate volume state 3. Adjust mixer each Aux channel output levels， mixer and send the signal to Transmitter。... - Page 13 OPERATION MIAN OUTPUT CREATING MONITOR WITH XLR 1. Transmitter connect Mixer output or other XLR output 2. Trun on the Receiver, adjust the volume of the Receiver, and gradually increase from small to large to reach the appropriate volume state 3 Adjust mixer each channel faders output levels，mixer and send the signal to Transmitter。...
- Page 14 OPERATION CHANNEL 1 SINGLE TRANSMITTER AND MULTIPLE RECEIVERS When performers have different monitoring needs, they can set up multiple transmitters. If the receiver is set to the channel corresponding to the transmit- ter, the audio can be received. Or creat mute rehearsal system. CHANNEL 2...
- Page 15 2422MHz, 2456MHz, 2458MHz 3) In case of environmental interference from other WiFi * U2 1~4 channels are the same as U3/U3C/U4 1~4 channels, systems, shorten the distance between the receiver U2, U3/U3C and U4 use in sametime max is 6 sets.
-
Page 16: Troubleshooting
No Sound the Receiver. • Ensure that the U4 Transmitter and Receiver are on the same channel. • The Receiver can be paired with one Transmitter at a time • Check the Line/Aux setting at the transmitter and verify that the meter is not... -
Page 17: Specifications
SPECIFICATIONS U4 WIRELESS IN EAR MONITOR SYSTEM Tuning Bandwidth 2400 – 2483.5MHz Up to 90ft Actual Range Depends On Rf Signal Absorption, Reflection Working Range And Interference. 20Hz – 20KHz(-3dB). Audio Frequency Response 107dB Dynamic Range 5 Hours of battery life... - Page 18 U4 TRANSMITTER U4 RECEIVER Dimensions 31 X 29 X 98 mm Weight Housing Molded plastic and cast metal Molded plastic and cast metal Battery 3.7V Rechargeable Li-ion, 860mA 3.7V Rechargeable Li-ion, 1200mA Impedance Input 47kΩ（1KHz） 6-600Ω Audio input Connector Balanced XLR Male input Audio output Connector 3.5mm stereo output...
- Page 19 U4 SERIES U4 SET U4R2 Transmitter Receiver Transmitter Receiver U4 standard set to creat personal U4R2 set to creat small monitoring system Monitoring system Or backup receiver...
- Page 20 WIRELESS IN EAR MONITOR SYSTEM U4R4 Transmitter Receiver Transmitter U4R4 set to creat performance monitoring system Or mute rehearsal system Transmitter only, you need to purchase Additional receivers for use RECEIVER Receiver only, you need To purchase additional Transmitter for use...
