- Page 1 WIRELESS FOR DYNAMIC MICROPHONES AND PA/DJ SYSTEMS MICROPHONE WIRELESS SYSTEM DUAL WIRELESS SYSTEM FOR AUDIO Manual...
- Page 2 CERTIFICATION This Class B digital apparatus complies with Canadian Radio Approvals: ICES-003. FCC Part 15.249, FCC Part 15 B, RSS-210 (Canada), EN 300 440 (Europe), EN 301.489 (Europe), Japan Radio 2.4GHz Band IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen 4e (Japan), MIC ARIB STD-T66 (Japan), California 65, CE.
-
Page 3: Fcc Certification
Warning: Changes or modi cations not expressly approved in the interference by one or more of the following measures: writing by Xvive may void the users authority to operate this equipment. • Reorient or relocate the receiving antenna. - Page 4 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, extreme cases, they may even present a risk of explosion, re, DO NOT REMOVE SCREWS. heat, smoke or gas. Xvive does not accept any liability for NO USER-SERVICEABLE PARTS INSIDE. damagearising from abuse or misuse.
- Page 5 • Do not continue to use defective rechargeable batteries. to save valuable resources and prevent any possibility of side • Only use rechargeable batteries speci ed by Xvive. e ects on human health and our environment due to the • Dispose of rechargeable batteries at special collection inappropriate disposal of the old products and used batteries.
- Page 6 2. Do not to perform service operations beyond those heating ducts, or appliances which produce heat. described in the U3/U3D Manual. Service is required when the 4. Guard the device against objects or liquids entering apparatus was damaged in any way, such as: the device.
-
Page 7: Package Details
Microphone application: connect two dynamic • Includes the U3 microphone wireless system (2 sets) microphones to a mixer or another XLR-input audio device. • The 2.4 GHz wireless band is ideal for wireless systems for •... - Page 8 QUICK START: MICROPHONE APPLICATIONS 1. Plug the transmitter into your XLR dynamic microphone 2. Plug the Receiver into the Mixer. or battery-powered condenser microphone.
- Page 9 QUICK START: MICROPHONE APPLICATIONS Hello! 3. Turn transmitter and receiver on 4. The LED on the transmitter will be 5. Check the connection by talking and check that they operate lit continuously after the connection through the microphone. on the same channel. was established successfully.
- Page 10 QUICK START: MONO CONNECTION TO A POWERED SPEAKER Transmitter 1 Receiver 1 Receiver 1 Receiver 2 More Receivers 1. Connect the Transmitter to a Main 2. Connect the Receiver to the 3. Set the Receiver to the same channel as XLR input of a powered PA or Aux XLR output of the mixer or the Transmitter.
- Page 11 QUICK START: TWO U3 SETS FOR STEREO / DUAL MONO PA APPLICATIONS For stereo PA/DJ systems, For mono PA/DJ systems, Powered connect Transmitter #1 to connect Transmitter #1 to Powered Loudspeaker Loudspeaker the left main XLR output of the mono main XLR output...

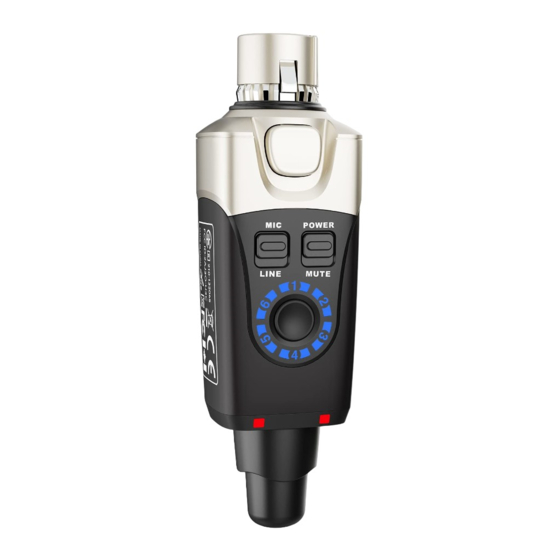

- Page 12 BASIC OPERATION U3 TRANSMITTER Mic In: XLR microphone input jack Spring: circumferential spring provides ground connection to metal housing parts Mic lock: secures transmitter to the microphone Input level switch: MIC = 0dB input LINE = -10dB input Power switch: switches unit on/o...
- Page 13 BASIC OPERATION U3 RECEIVER XLR OUT: XLR microphone input jack Power switch: switches the unit on and o Channel status LED: indicates selected channel Channel switch: selects channels 1-6 USB charging port RF Status LED: ON = Transmitter is on and link is established...
-
Page 14: Specifications
SPECIFICATIONS U3 MICROPHONE WIRELESS SYSTEM Transmission bandwidth 2400 – 2483.5 MHz Up to 27 m / 90 feet. Actual range depends on RF signal absorption, Working range re ection and interference. Audio frequency response 20 Hz - 20 kHz (-3 dB). Depending on microphone type or input signal. - Page 15 U3 TRANSMITTER U3 RECEIVER Dimensions 31 X 29 X 98 mm 31 X 29 X 98 mm Weight 93 g 92 g Housing Molded plastic and cast metal Molded plastic and cast metal Battery 3.7 V rechargeable Li-lon, 860 mA 3.7 V rechargeable Li-lon, 860 mA...
-
Page 16: Batteries And Charging
When storing the unit, please check the battery state regularly and charge if necessary. Connect Power Connect to the outlet Note: Turn o the power switch while charging. Please do not use the U3 when charging. This may reduce battery life. - Page 17 2.4 GHz WIRELESS OVERVIEW AND INTERFERENCE The U3 operates in the 2.4 GHz ISM band, the same band 2.4 Ghz Frequency Tables used by Wi-Fi, Bluetooth, and other wireless systems. 2.4 GHz CHANNEL 1 2402 MHz, 2480 MHz, 2482 MHz is an open band and as such does not require a license to operate worldwide.
-
Page 18: Troubleshooting
• Make sure that the U3 Transmitter and Receiver are set to the same channel. • Check that the U3 Receiver's RF LED is on. • Check that the microphone is properly connected to the U3 Transmitter, and turned on if necessary No sound •... -
Page 19: Application Overview
APPLICATION OVERVIEW Live Sound Mixers Dynamic Microphone Portable PA Systems DI Or XLR Output Gear U3 Receiver Recorders U3 Transmitter Mixer Active Loudspeakers MICROPHONE WIRELESS SYSTEM DUAL WIRELESS SYSTEM FOR AUDIO For PA/DJ Systems with active speakers, and Dynamic Microphones... - Page 20 SHENZHEN FZONE TECHNOLOGY CO., LTD. 2nd oor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: support@xvive.com www.xvive.com China Patent Numbers ZL 2016 3 0165464.8 Note: The manufacturer reserves the right to change these speci cations without notice.
