Summary of Contents for Xvive XU3C
- Page 1 U3C SET MANUAL MICROPHONE WIRELESS SYSTEM...
- Page 2 This Class B digital apparatus complies with Canadian CAUTION ICES-003. RISK OF ELECTRIC SHOCK DO NOT OPEN IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen 4e Décembre 2014: WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK: DO NOT REMOVE SCREWS. This device complies with Industry Canada licence-exempt NO USER-SERVICEABLE PARTSINSIDE.
-
Page 3: Fcc Certification
WARNING: the interference by one or more of the following Changes or modifications not expressly approved in writing by Xvive may void the users authority to operate this equipment. MEASURES: - Reorient or relocate the receiving antenna. RF EXPOSURE STATEMENT:... - Page 4 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS IN A SAFE PLACE WARNING: BEFORE USING YOUR XVIVE U3C MICROPHONE WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Observe all instructions carefully in the U3C set manual. 3. Do not place near heat sources, such as radiators, heat 2.
- Page 5 U3C SET PRODUCT INTRODUCTION PACKAGE DETAILS U3C Transmitter 1PCS system, Approved for use in worldwide. U3 Receiver 1PCS USB Cable 1PCS channels. Manual 1PCS 1PCS reflection and interference ) 3~7 Hours of battery life (It depends on the microphone phantom power current. Rechargeable battery for both Transmitter &...
-
Page 6: Quick Start
QUICK START 1. Plug the U3C Transmitter condenser microphone. 2. Plug the U3 Receiver into the Mixer. Switching phantom power 12V or 48V WARNING: Never plug single-ended (unbalanced) or dynamic microphones into U3C... - Page 7 QUICK START Hello! 3. Turn on the U3C Transmitter and 4. After connecting successfully, the LED lights on U3 receiver through the microphone. Channel is same. will stay on.

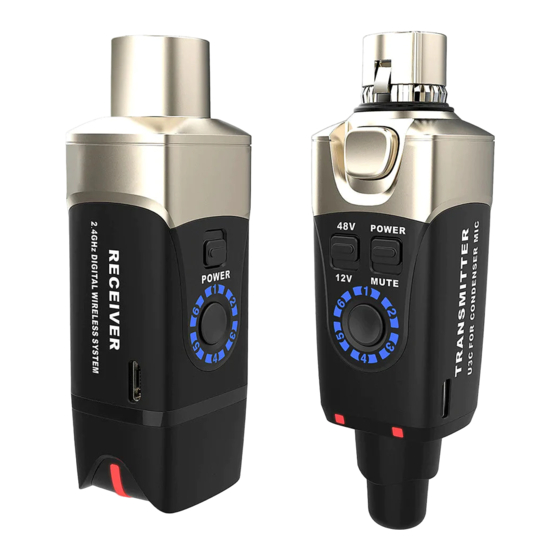

- Page 8 BASIC OPERATION U3C TRANSMITTER Spring: Circumferential ground spring providing an accurate connection to the mating shell Output phantom power voltage switching: 12V and 48V Power switch: switches unit on/off Channel status LED: indicates selected channel Channel switch: selects Channels 1-6 USB charging port Power status LED: indicates power status: Led off...
- Page 9 BASIC OPERATION U3 RECEIVER Power switch: switches the unit on and off Channel status LED: indicates selected channel Channel switch: selects Channels 1-6 USB Port: For charging the battery RF Status LED: Flashing = Signal connection interference Power status Led: indicates power status. Led off...
-
Page 10: Specifications
SPECIFICATIONS U3C MICROPHONE WIRELESS SYSTEM Tuning Bandwidth Up to 90ft Actual Range Depends On Rf Signal Absorption, Reflection And Interference. Audio Frequency Response rophone Type Or Input Signal. Dynamic Range 110dB Up To 3~7 Hours of battery life (It depends on the microphone current. Battery Life -88dBm RF Sensitivity... - Page 11 U3C TRANSMITTER U3 RECEIVER Dimensions 31 X 29 X 98 mm 31 X 29 X 98 mm Weight 108g Housing Molded Plastic And Cast Metal Molded Plastic And Cast Metal Battery 3.7V Rechargeable Li-lon, 1000mA 3.7V Rechargeable Li-lon, 860mA Impedance Input Audio Input Connector Balanced XLR Male Input...
-
Page 12: Batteries And Charging
BATTERIES AND CHARGING U3C set CHARGING TIMES BATTERY LIFE U3C Transmitter 2:00 U3 REVEIVER 2:00 Up to 5 hours * Always store U3C at room temperature state regularly and charge if necessary. Connect Power U3C Phantom Power Connections * LED lights up when you charge the U3C, and LED goes off automatically once charge is finsihed. - Page 13 2.4 GHz SPECTRUM OVERVIEW AND INTERFERENCE U3C operates within the 2.4GHz ISM band which is utilized 2.4Ghz Frequency Tables by Wi-Fi, Bluetooth, and other wireless devices. 2.4GHz is CHANNEL 1 2402MHz, 2480MHz, 2482MHz an open band and, as such, does not require a license to be CHANNEL 2 2408MHz, 2472MHz, 2474MHz used worldwide.
-
Page 14: Troubleshooting
TROUBLESHOOTING ISSUE SOLUTION No Sound U3C will provide 12V or 48V phantom power to condenser microphone. Please select your microphone phantom power volts. If used in dynamic microphone, the current consumption will be the same as that of a condenser microphone. Distortion or Faint Sound Signal instability: RF LED Unable to switch the channel... -
Page 15: Application Scene
APPLICATION SCENE Live Sound Mixers Portable PA Systems Condenser microphone U3 Receiver Recorders Transmitter U3C SET CONDENSER MICROPHONE WIRELESS SYSTEM... - Page 16 China Patent Numbers ZL 2016 3 0165464.8 2nd floor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: nancy@xviveaudio.com 210-119489...
