Summary of Contents for Xvive U3C

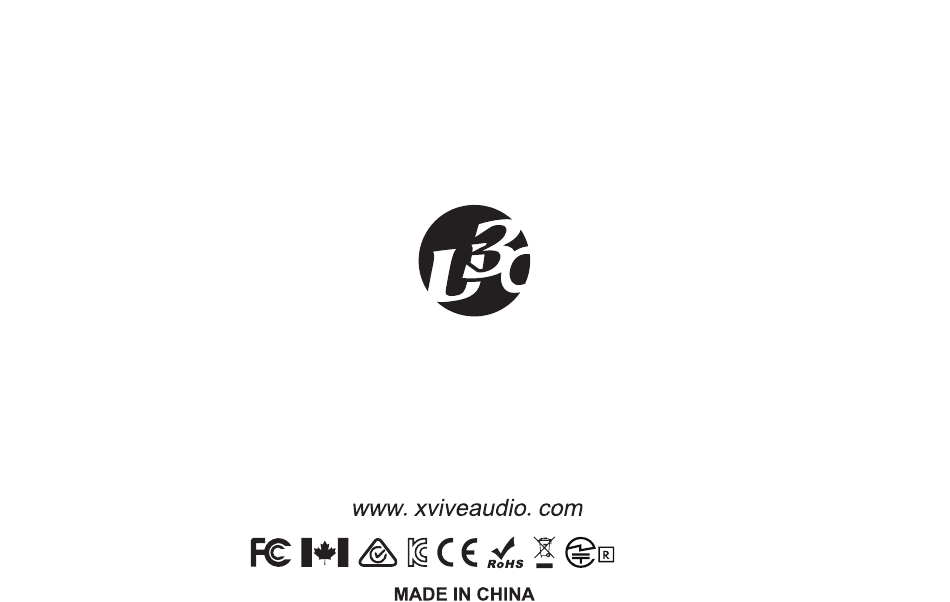

- Page 1 China Patent Numbers ZL 2016 3 0165464.8 2nd floor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: nancy@xviveaudio.com 210-119489...
-
Page 2: Wireless System
U3C SET MANUAL MICROPHONE WIRELESS SYSTEM... - Page 3 This Class B digital apparatus complies with Canadian CAUTION ICES-003. RISK OF ELECTRIC SHOCK DO NOT OPEN IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen 4e Décembre 2014: WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK: DO NOT REMOVE SCREWS. This device complies with Industry Canada licence-exempt NO USER-SERVICEABLE PARTSINSIDE.
-
Page 4: Fcc Certification
Changes or modifications not expressly approved in writing by Xvive may void the users authority to operate this equipment. MEASURES: - Reorient or relocate the receiving antenna. - Page 5 WARNING: BEFORE USING YOUR XVIVE U3C MICROPHONE WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Observe all instructions carefully in the U3C set manual. 3. Do not place near heat sources, such as radiators, heat 2. Do not to perform service operations beyond those registers, or appliances which produce heat.
- Page 6 • High Resolution 24-bit/48kpbs Audio • Dynamic Range 110dB • Signal to Noise Ratio is 110dB • U3C wireless aims to take the complexity and frustration, out of traditional wireless microphone systems. Creating a flexible, all-in-one solution that makes any your favorite condenser microphones into wireless.
-
Page 7: Quick Start
QUICK START 1. Plug the U3C Transmitter condenser microphone. 2. Plug the U3 Receiver into the Mixer. Switching phantom power 12V or 48V WARNING: Never plug single-ended (unbalanced) or dynamic microphones into U3C... - Page 8 QUICK START Hello! 3. Turn on the U3C Transmitter and 4. After connecting successfully, 5. Check the connection by talking the U3 receiver and check the the LED lights on U3 receiver through the microphone. Channel is same. will stay on.
- Page 9 BASIC OPERATION U3C TRANSMITTER Mic In: XLR balanced condenser microphone input jack Spring: Circumferential ground spring providing an accurate connection to the mating shell Mic Lock: secures transmitter to the microphone Output phantom power voltage switching: 12V and 48V Power switch: switches unit on/off...
- Page 10 BASIC OPERATION U3 RECEIVER XLR OUT: XLR microphone input jack Power switch: switches the unit on and off Channel status LED: indicates selected channel Channel switch: selects Channels 1-6 USB Port: For charging the battery RF Status LED: ON = Transmitter is on and link is established Flashing = Signal connection interference OFF = Transmitter off...
-
Page 11: Specifications
SPECIFICATIONS U3C MICROPHONE WIRELESS SYSTEM Tuning Bandwidth 2400 – 2483.5MHz Up to 90ft Actual Range Depends On Rf Signal Absorption, Reflection Working Range And Interference. Audio Frequency Response 20Hz – 20KHz(-3dB). Dependent On Microphone Type Or Input Signal. 110dB Dynamic Range Up To 3~7 Hours of battery life (It depends on the microphone current. - Page 12 U3C TRANSMITTER U3 RECEIVER Dimensions 31 X 29 X 98 mm 31 X 29 X 98 mm Weight 108g Housing Molded Plastic And Cast Metal Molded Plastic And Cast Metal Battery 3.7V Rechargeable Li-lon, 1000mA 3.7V Rechargeable Li-lon, 860mA Impedance Input 15kΩ(1KHz)
-
Page 13: Batteries And Charging
Connect Power Connect to the socket U3C Phantom Power Connections * LED lights up when you charge the U3C, and LED goes off automatically once charge is finsihed. * Turn off the power switch while charging. Please do not use U3C when charging, which may reduce battery life. - Page 14 2422MHz, 2456MHz, 2458MHz products. 3) In case of environmental interference from other WiFi * U2 1~4 channels are the same as U3/U3C 1~4 channels, systems, shorten the distance between the receiver and U2 and U3/U3C use in sametime max is 6 sets.
-
Page 15: Troubleshooting
• Check that the Receiver's RF LED is lit. • Check that the microphone is turned on and receiving signal from the U3C Transmitter. • Check that the power switch is turned on for both the Transmitter and the Receiver. -
Page 16: Application Scene
APPLICATION SCENE Live Sound Mixers Portable PA Systems Condenser microphone U3 Receiver Recorders Transmitter U3C SET Active Loudspeakers CONDENSER MICROPHONE WIRELESS SYSTEM...
