Summary of Contents for Xvive U45

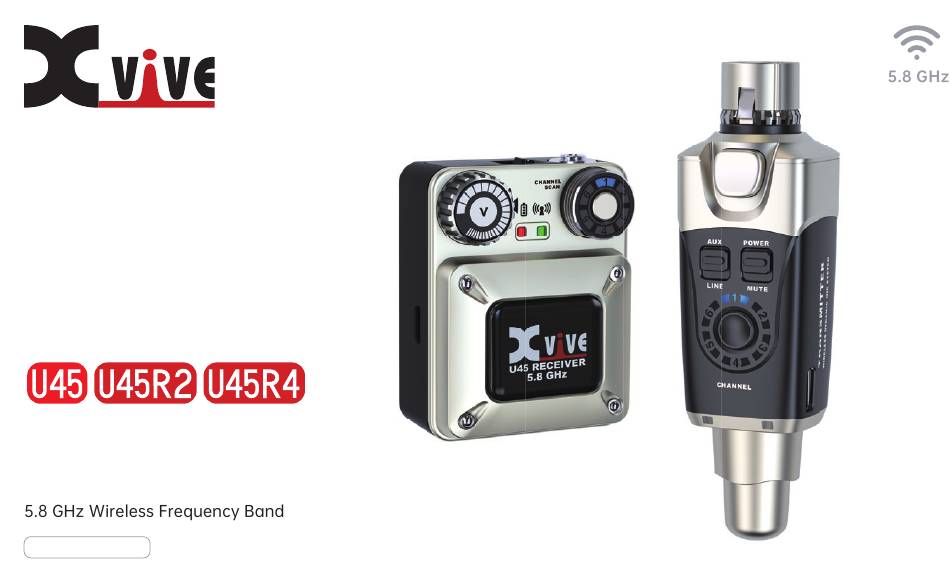

- Page 1 wireless IN-EAR MONITOR WIRELESS SYSTEM English Manual...
- Page 2 INTRODUCTION The Xvive U45 In-Ear Monitor Wireless System is a compact, reliable Radio Approvals: FCC Part 15.249, RSS-247(Canada), EN 300 440 solution for musicians and performers needing high-quality (Europe), EN 301.489 (Europe) wireless audio. Operating on the 5.8 GHz band, it offers clear, This device is in compliance with the essential requirements interference-free transmission over long distances.
-
Page 3: Fcc Certification
- Consult the dealer or an experienced radio/TV technician for help. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC FCC ID: 2AJ3O-U45 IC: 22031-U45 Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 4 Xvive does not accept any liability for • Do not continue to use defective rechargeable batteries. damage arising from abuse or misuse.
- Page 5 INFORMATION ABOUT COLLECTION AND DISPOSAL OF OLD ITEMS AND USED BATTERIES [For users in the European Union] You can contact your local authority for getting more helpful These symbols on the products, packaging, or on any information on how to dispose the recycling and collection of documents in the package (valid only in the EU) mean it is the old products and batteries.
-
Page 6: One-Year Limited Warranty
Within the USA: • Damage to the product or parts caused by improper storage • All Xvive warranty claims should be made with the retailer from by the user; retail which the unit was purchased. This applies to both •... - Page 7 • The purchaser will pay all freight charges to return the original item to Xvive USA or its affiliated service centers. • If the unit is deemed to be covered by this warranty, Xvive will ship the repaired or replacement unit to the purchaser free-of-charge and without any additional freight charges.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS AND KEEP THEM IN A SAFE PLACE WARNING: BEFORE USING YOUR XVIVE 5.8 GHz IN-EAR MONITOR WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Observe all instructions carefully in the U45 manual. 3. Do not place near heat sources, such as radiators, heat 2.
- Page 9 • Broad 20 Hz – 20 KHz frequency response • 110 dB dynamic range • Less than 5ms latency • Up to 6 U45 systems can be used in one area simultaneously • 5 hours of battery life (onboard rechargeable battery in both Transmitter and Receiver) •...
- Page 10 OVERVIEW: U45 TRANSMITTER Input: balanced XLR input jack Spring: circumferential ground spring providing an accurate connection to the mating shell Lock: secures Transmitter Aux/Line mode: connect to aux or line out Power switch: switches unit on/off Channel status LED: indicates selected channel...
- Page 11 OVERVIEW: U45 RECEIVER Power switch: switches unit on/off Headphone output: 3.5 mm / 1/8” jack for in-ear monitors, earphones or headphones Channel status LED: indicates selected channel Channel switch: selects Channels 1-6 Hold for 3 seconds to scan for the best channel.
-
Page 12: Quick Start
QUICK START BATTERIES AND CHARGING U45 includes a USB charging cable, which you can connect to a USB charger adapter or other USB power source. Note: Turn off the power switch while charging. Please do not use U45 while charging—this may reduce battery life. - Page 13 CHANNEL SWITCH CHANNEL PAIR TRANSMITTER AND RECEIVER SCAN U45 has six channels. Use the channel switch button to change the channel. Set the Receiver channel to the same channel as on the Transmitter. The blue LED on the Receiver will always be on when the units are connected.
-
Page 14: Volume Adjustment
QUICK START VOLUME ADJUSTMENT LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. ADJUST TRANSMITTER LEVELS Adjusting Gain and Listening Volume: VOLUME For the best audio quality, start by adjusting SWITCH the levels from the mixer or audio source to maximize the signal-to-noise ratio. - Page 15 CREATING A MONITOR MIX WITH AUX 1. Connect the Transmitter to the mixer’s Aux send that you want to use. 2. Turn on the Receiver and gradually turn up the volume until you reach the desired level. 3. Set up your mix: adjust the levels of each channel’s send to the Aux output you’re connected to, and set the Aux channel’s master output level.
- Page 16 CREATING MONITOR MIXES WITH XLR MIAN OUTPUT 1. Connect the Transmitter to the Mixer’s main output or other XLR output 2. Turn on the Receiver and gradually turn up the volume until you reach the desired level. 3 Set up your mix: adjust the fader levels of each channel as desired, as well as the master output level.
- Page 17 Each Receiver simply needs to be set to the same channel as the Transmitter connected to the desired aux output. If all performers are connected through the U45 monitoring system, no wedge monitors need to be used! CHANNEL 2...
- Page 18 SCAN FOR THE BEST CHANNEL EXTEND THE EFFECTIVE RANGE Channel switch Press and hold MAIN OUTPUT for 3 seconds Press and hold the channel button on the Receiver for 3 seconds to enter Channel Scan mode. The Receiver’s channel LED will Channel 1 flash during scanning and then will stay on the optimal wireless channel.
- Page 19 1) Keep more than 3 metres of distance between the U45 Receiver unit and Wi-Fi transmitters, such as routers. 2) If you experience interference from Wi-Fi devices in the vicinity, try changing to a different channel on the U45 Transmitter and Receiver.
-
Page 20: Specifications
SPECIFICATIONS U45 WIRELESS IN-EAR MONITOR SYSTEM Tuning bandwidth 5.8 GHz Up to 100 ft actual range; depends on RF signal absorption, Working range reflection and interference Frequency response 20 Hz – 20 KHz (-3 dB) Dynamic range 110 dB Signal-to-noise ratio... - Page 21 U45 TRANSMITTER U45 RECEIVER Dimensions 30 x 28 x 100 mm 47 x 41 x 60 mm Weight 90 g 118 g Housing Molded plastic and cast metal Molded plastic and cast metal Battery 3.7V rechargeable Li-ion, 860 mAh 3.7V rechargeable Li-ion, 1200 mAh Input: 220Ω...
-
Page 22: Troubleshooting
No sound • Ensure that the U45 Transmitter and Receiver are on the same channel. • The Receiver can be paired with one Transmitter at a time. • When the battery level is below 1%, the RF wireless section will turn off. The power red LED will flash until the battery is completely drained. - Page 23 1 Transmitter 1 Receiver U45R2 1 Transmitter 2 Receivers U45R4 1 Transmitter 4 Receivers Standard U45 set U45R2 provides two U45R4 provides offers you one people with wireless personal personal monitoring audio,or adds a backup monitoring for four system Receiver for one user...
-
Page 24: Patent Pending
SHENZHEN FZONE TECHNOLOGY CO., LTD. 2nd floor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: support@xvive.com Tel: +86-755-2912 3526 www.xvive.com PATENT PENDING...
