Xvive U7 English Manual

For saxophone and trumpet, acoustic guitar, violin
Hide thumbs

Advertisement

Table of Contents

WIRELESS SYSTEM
U7 Saxophone and Trumpet Wireless System
U8 Acoustic Guitar Wireless System
U9 Violin Wireless System
English Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xvive U7

Summary of Contents for Xvive U7

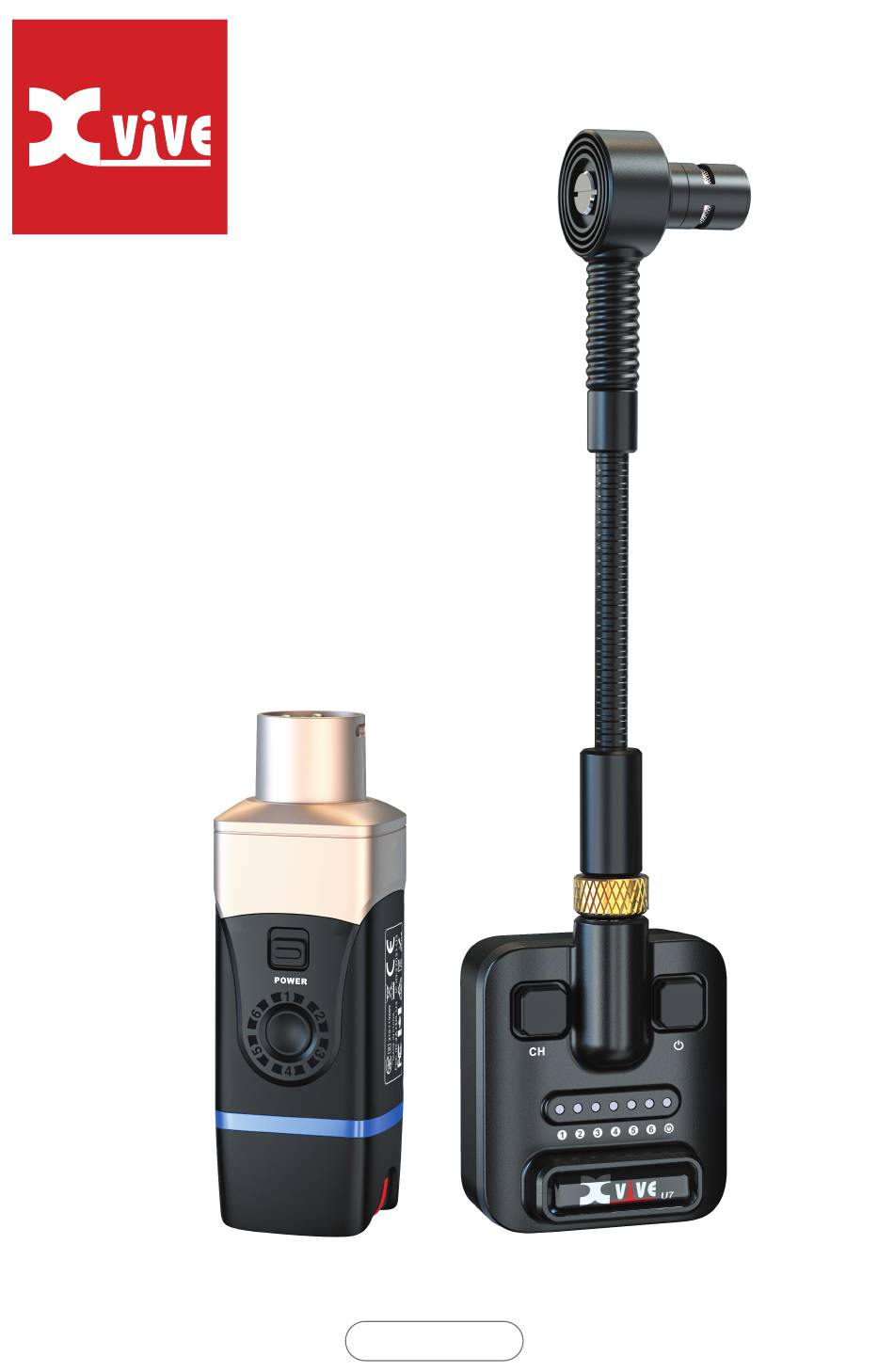

  • Page 1 WIRELESS SYSTEM U7 Saxophone and Trumpet Wireless System U8 Acoustic Guitar Wireless System U9 Violin Wireless System English Manual...
  • Page 2 Directive 2014/53/EU. All essential radio test suites have been carried out. Detailed DOC le please visit our website: www.xvive.com IC CAUTION: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:...

  • Page 3: Fcc Certification

    FCC CERTIFICATION FCC Caution: Any changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference...
  • Page 4 Directive 2014/53/EU 217-241612 Radio Approvals: FCC Part 15.249, RSS-247(Canada), EN 300 440 (Europe), EN 301.489 (Europe) PRODUCT NAME: WIRELESS SYSTEM MODELS: U7 Saxophone and Trumpet Wireless System U8 Acoustic Guitar Wireless System U9 Violin Wireless System...
  • Page 5 RECHARGEABLE BATTERIES If abused or misused, the rechargeable batteries may leak. In extreme cases, they may even present a risk of explosion, re, heat, smoke or gas. Xvive does not accept any liability for damage arising from abuse or misuse.

  • Page 6: One-Year Limited Warranty

    Xvive will, at its sole discretion, or in cooperation with our authorized retailers, repair or replace at no charge, any unit that is inspected by Xvive or an a liated Xvive service center and deemed to be defective within the warranty period.
  • Page 7 • The purchaser will pay all freight charges to return the original item to Xvive USA or its a liated service centers. • If the unit is deemed to be covered by this warranty, Xvive will ship the repaired or replacement unit to the purchaser free-of-charge and without any additional freight charges.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS AND KEEP THEM IN A SAFE PLACE WARNING: BEFORE USING YOUR XVIVE WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Observe all instructions in the wireless system manual carefully. 2. Do not perform service operations beyond those described in the wireless system manual.
  • Page 9 INFORMATION ABOUT COLLECTION AND DISPOSAL OF OLD ITEMS AND USED BATTERIES These symbols on the products, packaging, or on any documents in the package mean it is incorrect to mix the used electrical and electronic products and batteries with general household garbage. To protect our environment, please take old products and used batteries to proper collection places, and follow your national legislation and the Directives 2012/19/EU and...
  • Page 10 FEATURES Xvive has equipped the wireless system with an ultra-high-quality supercardioid microphone. It is suitable for tenor, soprano, baritone and alto saxophones, trumpet, trombone and other brass instruments, acoustic guitars, violin and viola. This mic has a superior dynamic range and an SPL of 142 dB, bringing more clarity and detail to your music.
  • Page 11 U7 PACKAGE DETAILS U7 Transmitter 1 PCS U7 Receiver 1 PCS Microphone 1 PCS Saxophone/Trumpet Clip 1 PCS Carry Case 1 PCS Charging Cable 1 PCS Manual 1 PCS Foam Windscreen 2 PCS Fur Windshield 1 PCS U8 PACKAGE DETAILS...
  • Page 12 1/8” balanced microphone POWER SWITCH output with lock switches unit on/o Transmitter 1/8” balanced microphone input CLIP U7 with sax clip U8 with guitar clip CHANNEL SWITCH U9 with violin clip selects channels 1-6 USB CHARGING PORT CHANNEL LEDs indicates selected...
  • Page 13 RECEIVER XLR OUT connects to mixer or snake POWER SWITCH switches the unit CHANNEL STATUS LED on and o indicates selected CHANNEL SWITCH channel selects Channels 1-6 USB PORT for charging the battery ANTENNA RF STATUS LED ON = Transmitter is on and link is established Flashing = Signal connection interference OFF = Transmitter o or unlinked POWER STATUS LED AND BATTERY STATUS LED...

  • Page 14: Specifications

    SPECIFICATIONS WIRELESS SYSTEM 1. Tuning bandwidth: 2400 – 2483.5 MHz 2. Working range: 90 ft (indoors). Actual range depends on RF signal absorption, re ection and interference. 3. Audio frequency response: 20 Hz – 20 kHz (-3dB). Dependent on microphone type or input signal. 4.
  • Page 15 SPECIFICATIONS TRANSMITTER & MICROPHONE 1. Transmitter dimensions: 40 mm x 29 mm x 50 mm 2. Microphone dimensions: 20 mm x 28 mm x 190 mm 3. Transmitter weight: 35 g 4. Microphone weight: 35 g 5. Housing: Molded plastic and cast metal 6.
  • Page 16 U7 QUICK START 1. Plug in the microphone, and lock it in place by screwing it on clockwise 2. Install the clip 3. Install on the bell of the instrument and adjust the position as desired TRANSMITTER Saxophone Trumpet 4. Plug in the receiver...
  • Page 17 U8 QUICK START 1. Plug in the microphone, and lock it in place by screwing it on clockwise 2. Install the guitar clip on the transmitter. The U8 clip ts on instrument bodies that are between 74 mm and 105 mm thick (2.9” – 4.13”) 3.
  • Page 18 U9 QUICK START 1. Plug in the microphone, and lock it in place by screwing it on clockwise 2. Install the violin clip on the transmitter. The U9 clip ts on instrument bodies that are between 30 mm and 40 mm thick (1.18” – 1.57”) 3.
  • Page 19 PAIR TRANSMITTER AND RECEIVER The U7, U8 and U9 wireless systems all have six channels. Use the channel switch button to change the channel. Set the Receiver and the Transmitter to the same channel. The green LED on the receiver will always be on when the connection is successful.
  • Page 20 QUICK START BATTERIES AND CHARGING The wireless system comes with a dual USB charging cable, which charges the transmitter and the receiver at the same time. Plug it into any 5V / 2A USB charger adapter or USB power source. Note: Turn o the power before charging.
  • Page 21 2.4 GHz WIRELESS OVERVIEW AND INTERFERENCE The U7, U8 and U9 wireless systems operate on the 2.4 GHz ISM band, which is also used by Wi-Fi, Bluetooth, and other wireless devices. 2.4 GHz is an open band and, as such, does not require a license to be used worldwide.

  • Page 22: Troubleshooting

    TROUBLESHOOTING No Sound • Check that the wireless system Receiver's RF LED is illuminated. • Check that the microphone is connected and receiving signal from the wireless system Transmitter. • Check that the power switches are turned on, both on the Transmitter and the Receiver.

  • Page 23: Application Examples

    Portable PA Systems Acoustic Guitar / Classical guitar Recorder / E ect (w/ piezo pickup or Processor no pickup) Violin Active Loudspeakers TRANSMITTER RECEIVER WIRELESS SYSTEM U7 Saxophone and Trumpet Wireless System U8 Acoustic Guitar Wireless System U9 Violin Wireless System...
  • Page 24 217-241612 SHENZHEN FZONE TECHNOLOGY CO., LTD. 2nd oor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: support@xvive.com Tel: +86-755-2786 6639 www.xvive.com...

This manual is also suitable for:

U8U9
