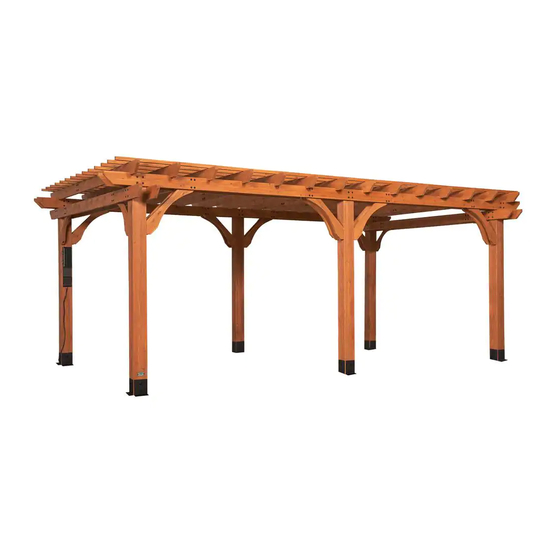

BEAUMONT 20X12 PERGOLA
MODEL: # 2101579
For the most up to date assembly manual, to register your product, or to order replacement parts
Please visit www.backyarddiscovery.com
Para obtener instrucciones en español, visite www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
ONLY AVAILABLE IN NORTH AMERICA
INSTALLATION
SERVICES
AVAILABLE!
See inside for details
ONLY AVAILABLE IN UNITED STATES
INS-2101579-A-BEAUMONT 20X12 PERGOLA ENG 10-11-21
*
Made in China
