Protective Cabinet

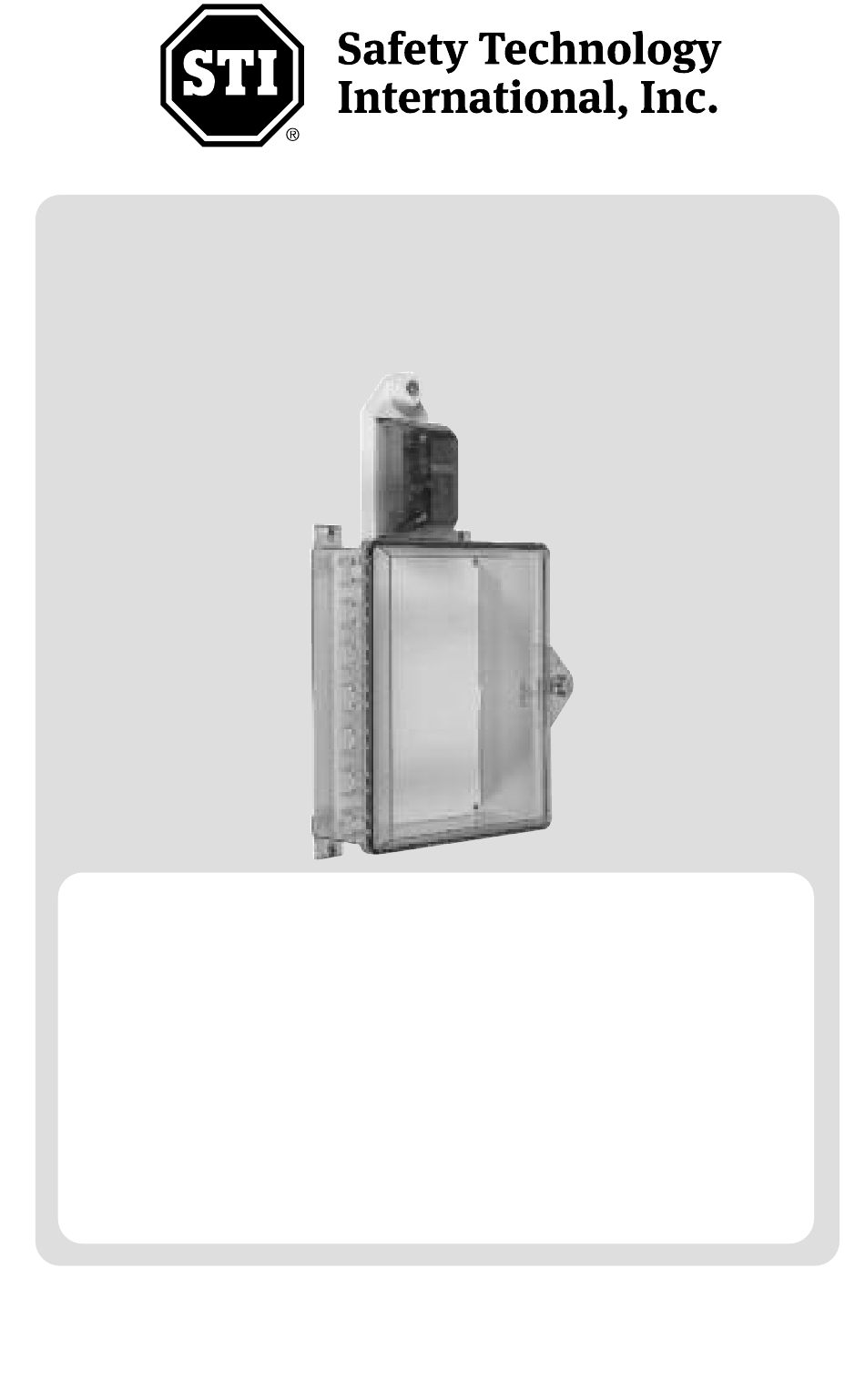

Features
• Clear, protective polycarbonate cover with siren/strobe alarm.
• Design allows visibility at any angle.
• Complete with mounting hardware and gasket.
• Includes backplate and siren/strobe alarm.
• External mounting tabs or internal drill dimples.
• Cover includes a coated steel internal mounting plate with a baked on white
enamel finish.
• Siren/strobe alarm lens is red. Also available with amber, green, blue or white lens.
• Siren offers 32 user selectable tones.
• Alarm can be set for a piercing 100 or 85 dB.
• Independent strobe and siren timing of 15 seconds, 30 seconds, 60 seconds or
continuous.
• Powered by a 9 VDC battery or external 12-30 volts.
• Low battery indicator.
We protect the things that protect you.
STI-7524 and STI-7525
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STI STI-7524
Summary of Contents for STI STI-7524
- Page 1 Protective Cabinet STI-7524 and STI-7525 Features • Clear, protective polycarbonate cover with siren/strobe alarm. • Design allows visibility at any angle. • Complete with mounting hardware and gasket. • Includes backplate and siren/strobe alarm. • External mounting tabs or internal drill dimples.
- Page 2 WARNINGS All units are recommended for indoor use. Unit must be tested periodically to verify the life of battery. STI recommends you change the 9 Volt battery twice a year. When purchasing a siren/strobe alarm, you will need to periodically test the connections to make sure audibles function at a sound level to alert staff.
- Page 3 DIMENSIONS 3.29 in. (83.95mm) 12.49 in. 19.46 in. (317.35mm) (494.34mm) 1/4” DIAMETER 7.11 in. 4.80 in. (180.64mm) (121.84mm) SPECIFICATIONS OPERATING VOLTAGE Internal power 9 VDC battery (not included) Remote power 12-30 VDC OPERATING TEMPERATURE 32°F -120° POWER CONSUMPTION Stand by: 50µA Siren low volume: 85mA Siren high volume: 90mA Strobe: 25mA...
- Page 4 INSTALLATION OF CABINET Note: Installation of cabinet should be before instal- lation of alarm because the mounting bracket butts up to cabinet. 1. Insert the (4) 06298 mounting tabs fully into back box mounting tab slots. Use rubber mallet if necessary. 2.
- Page 5 STEP 2 - ELECTRONIC SETUP - SELECT ALARM TONE AND TIMING SEQUENCE SIREN ALARM TONE ALARM TIMING LED QTY 10 STROBE TIMING VOLUME BATTERY LOW BATTERY INDICATOR LED TERMINAL STRIP BATTERY CABLE WIRE ENTRY TAMPER SWITCH (REAR VIEW) NOTE: Select-Alert must be on a flat surface and lens must be installed or the tamper switch will trigger the alarm.
- Page 6 STEP 5 - ELECTRONICS ASSEMBLY Wiring: After mounting circuit board assembly, connect wires. Refer to terminal strip connections (step 6). Lens installation: Slide lip of lens behind circuit board mounting plate. Rotate lens into position. Secure with tamperproof screw and special wrench. Unit will not operate properly if lens cover is not installed.
- Page 7 • To service, turn key switch off. WARRANTY INFORMATION • Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components). • Electronic warranty form at www.sti-usa.com/wc14.
- Page 8 ACCESSORIES AND REPLACEMENT PARTS STI-SA5000-R Replacement Siren/Strobe Alarm 18054 Replacement key for cabinet lock on STI-7524 18075 Replacement key for Siren/Strobe Alarm 2306 Airport Road • Waterford, MI 48327 Phone: 248-673-9898 • Fax: 248-673-1246 info@sti-usa.com • www.sti-usa.com Safety Technology International (Europe) Ltd.
