INSTALLATION OF STI-7532, STI-7533 & STI-7533AED PROTECTIVE CABINET
19033 ANCHOR
(4) PROVIDED
6297530
GASKET
07530 CABINET
ASSEMBLY
STI-7532 - KEY LOCK
STI-7533 & STI-7533AED - THUMB LOCK
ALARM MOUNTING PLATE
CABINET
VIEW A
MAGNETIC CONTACT
REED SWITCH
Safety Technology International, Inc. • 2306 Airport Rd. • Waterford, Michigan 48327-1209 • 800-888-4784 • Fax: 248-673-1246 • Web: www.sti-usa.com • Email: info@sti-usa.com
04875 MOUNTING PLATE
MOUNTING
TAB SLOTS
06298
MOUNTING TABS
(4) PROVIDED
07530WR
ADJUSTABLE WIRE SHELF
INCLUDED WITH STI-7533AED
19013 SCREW
#10 x 1 1/2 in.
(4) PROVIDED
OPTIONAL MOUNTING
HOLES (4)
ROUTE THE 2 SWITCH WIRES
THROUGH THE HOLE AS SHOWN
WIRE ACCESS HOLE
A
19018 ANCHOR
(2) PROVIDED
#6
#8-32 x 3/8 in.
SCREW
(4) PROVIDED
OPTIONAL SHELF
MOUNTING POSITION
(Do not scrub
o
ALARM MOUNTING PLATE
06202 BACKPLATE
9 VOLT ALKALINE BATTERY
19039 SCREW
x 1 1/4 in.
(2) PROVIDED
19011 SCREW - TAMPERPROOF
(2) PROVIDED
19032 KEY (2) PROVIDED

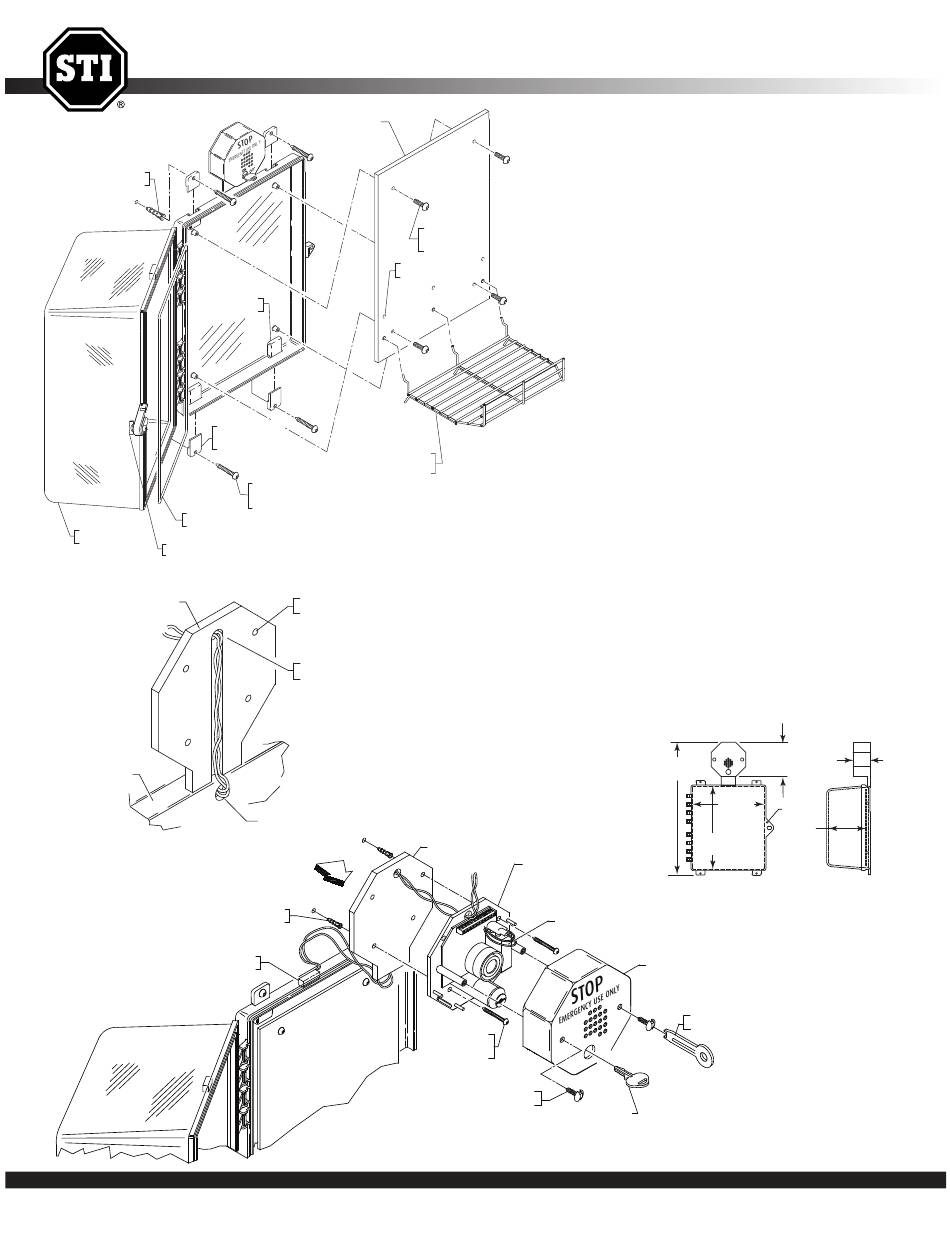

INSTALLATION OF CABINET
1. Insert the (4) 06298 mounting tabs fully into
back box mounting tab slots. Use rubber mallet
if necessary.
2. After selecting a suitable location, place
cabinet in closed position, against the wall.
Mark and drill (4) 1/4 in. diameter holes.
Insert the (4) 19033 anchors.
3. Select one of the two shelf mounting locations,
install shelf. Close and lock cabinet.
4. Place cabinet in position making sure the (2)
switch wires are not pinched between the wall
and cabinet. Drive in the (4) screws. Cabinet is 0
now secure.
INSTALLATION OF ALARM ASSEMBLY
1. Place the alarm mounting plate on the top
center of cabinet. Select at least two of the
four optional mounting holes. Mark and drill
3/16 in. holes and install the 19018 anchors.
2. Fish the magnetic switch wires through the
alarm mounting plate and the siren backplate
(View A). Next, drive the two alarm mounting
screws into the previous installed anchors.
3. Install the two magnetic switch wires following
the terminal switch diagram (View B).
4. Install the alarm cover using the (2)
tamperproof screws and provided tool.
STOP
5.375 in.
EMERGENCY USE ONLY
23 in. (137mm)
(584mm)
12.2 in.
(310mm)
14.2 in.
(360mm)
FRONT
06201 STOP ALARM COVER
19016 TAMPERPROOF TOOL
(1) PROVIDED
2.25 in.
(57mm)
1/4" DIA.
6.44 in.
(164mm)
R.H. SIDE
