V-ZUG-Home
Install the app, network your appliances and
benefit from a wide range of useful functions.
Operating instructions
WineCooler V4000 90 | 45
Refrigerating appliance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WineCooler V4000 90 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG WineCooler V4000 90

Summary of Contents for V-ZUG WineCooler V4000 90

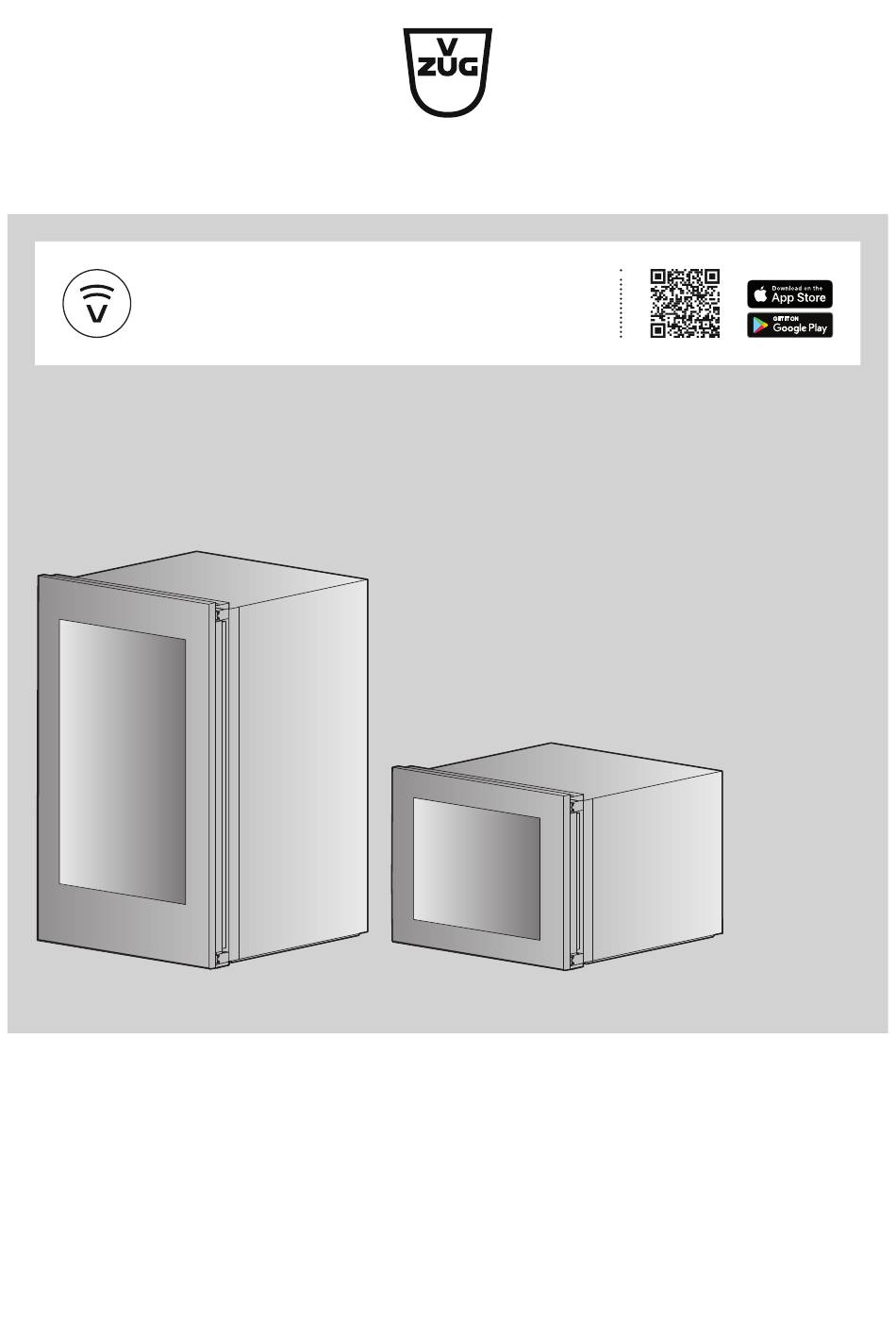

  • Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions WineCooler V4000 90 | 45 Refrigerating appliance...
  • Page 2 These operating instructions apply to: Model designation Type Model number Size system WineCooler V4000 90 WC4T-51102 51102 Euro 60 WineCooler V4000 45 WC4T-51113 51113 Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2023...

  • Page 3: Table Of Contents

    Setting the temperature ........ 10 Selecting appliance functions ...... 11 Cancelling settings .......... 11 Switching the appliance off........ 11 Appliance functions  12 Activating/Deactivating appliance functions .. 12 Description of functions........ 16 V-ZUG-Home  17 Conditions ............. 17 Initial set-up............ 18 Interior fittings  18 Door opener with TouchOpen...... 18 Shelves and presentation shelves.... 19 Divider shelf ............ 19...

  • Page 4: Safety Warnings

    Safety warnings Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-...

  • Page 5: Appliance-Specific Safety Precautions

    1 Safety warnings ▪ Refer to the identification plate for in- turer or its Customer Services formation on the required mains or a similarly qualified person voltage, current type and fuse protec- in order to avoid hazard. tion. ▪ All plastering, plasterboarding, wall pa- Appliance-specific safety pering and painting work is to be car- precautions...
  • Page 6 1 Safety warnings ▪ Dispose of the packaging material in Climate class accordance with local regulations. This appliance is intended for use in a lim- Correct use ited ambient temperature range to ensure proper operation. Information for the ap- ▪ This appliance is intended to be used plicable climate class can be found on the exclusively for the storage of wine.
  • Page 7 1 Safety warnings ▪ Cut the power going to the appliance before cleaning. Pull out the mains plug or switch off the fuse. Never pull the mains plug out of the mains socket by the cable or with wet hands. Hold the mains plug and pull it straight out of the mains socket.

  • Page 8: Using For The First Time

    ▸ Wait for 2 hours before switching the appliance on. Appliance description Structure The direction in which the door opens can be changed. Please contact our Cus- tomer Services if necessary. WineCooler V4000 90 (51102) WineCooler V4000 45 (51113) Temperature zones A Upper cooling compartment B Lower cooling compartment Interior fittings 1 «TouchOpen»...

  • Page 9: Operating And Display Elements

    BACK: Cancel or discard entry, ON/OFF (hold depressed for 3 seconds) Display elements Functions User settings SilentPlus Display brightness PartyCooling Switch off button tone Sabbath mode V-ZUG-Home Value and status display Temperature unit Upper/Lower cooling compartment (51102) Cooling compartment (51113) Fast cooling...

  • Page 10: Operation

    10 to 12 50 to 54 Notes on the storage of Notes on storage of wine (see page 25). Procedure for the WineCooler V4000 90 (51102) ▸ Touch the button. – The temperature display for the upper cooling compartment flashes on the left-hand side of the display.

  • Page 11: Selecting Appliance Functions

    4 Operation Procedure for the WineCooler V4000 45 (51113) ▸ Touch the button. – The temperature display for the cooling compartment flashes on the right-hand side of the display. ▸ Touch the button and select the desired temperature for the cooling com- partment.

  • Page 12: Appliance Functions Activating/Deactivating Appliance Functions

    5 Appliance functions Appliance functions Activating/Deactivating appliance functions Function Description Temperature set- Temperature selection for the zone(s) ting ▸ Follow the instructions in the «Setting the tem- perature» section (see page 10). Fast cooling Preparing the cooling zone(s) ideally for loading bottles. Activating ▸...
  • Page 13 5 Appliance functions Function Description Setting Accessing the functions and user settings . Further information: Description of functions (see page 16). Selecting ▸ Touch the button. ▸ Select the desired function or user setting (flash- ing) using the buttons. ▸ Confirm with the button.
  • Page 14 Deactivating ▸ Hold the button depressed for 3 seconds. – The function is deactivated; the illumina- tion and display are switched on. V-ZUG-Home Interaction with the appliance via the app (see page 17). Activating ▸ Touch the button. ▸ Touch the...
  • Page 15 5 Appliance functions Function Description Display bright- Adjusting the level of brightness for the display ness Selection ▸ Touch the button. ▸ Touch the button repeatedly until flashes in the display. ▸ Confirm with the button. ▸ Select the desired level of brightness (1 / 2 / 3) using the buttons.

  • Page 16: Description Of Functions

    5 Appliance functions Function Description Demo mode* This setting enables specialist retailers to put the appliance into the showroom mode for demonstration purposes. The demo mode enables functions to be demonstrated without the appli- ance being switched on. * Note: This setting is not recommended for private use. Activating The demo mode can only be turned on when the appliance is switched off.

  • Page 17: V-Zug-Home

    Download updates to your appliance via V-ZUG-Home so that you are always up to date. Hereby, V-ZUG Ltd declares that the radio equipment type, see chapter 2.2, is in compli- ance with Directive 2014/53/EU. The full text of the EU declaration of conformity is avail- able at the following internet address: https://www.vzug.com/gb/en/int_testinstitute_vzug...

  • Page 18: Initial Set-Up

    – A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 19: Shelves And Presentation Shelves

    7 Interior fittings When the Sabbath mode is activated, the appliance door cannot be opened using the «TouchOpen» door opening mechanism. To open the appliance door, get hold of it at the top or bottom edge and pull. Alternatively, use a standard suction cup. Risk of damage to the appliance.

  • Page 20: Care And Maintenance

    8 Care and maintenance Care and maintenance For hygienic storage, the interior should always be kept clean. Do not use any abrasive cleaning agents or scouring cloths. Clean wooden shelves just with a slightly damp cloth without any detergent. Risk of damage to the appliance. Interior ▸...

  • Page 21: Warning Signal And Alarm

    9 Noises and warnings Noise Cause Remark Buzzing Compressor or fan Normal operating noise made by the cooling unit. Gurgling, bub- Cooling circuit Normal operating noise as refrigerant flows bling, hissing through the cooling circuit. Hissing Cooling circuit Normal operating noise as refrigerant is injected into the evaporator.

  • Page 22: Trouble-Shooting

    10 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please contact Customer Services. Before contacting Cus- tomer Services: ▸ please note down ▪ the serial number (SN), which is shown on the identification plate), ▪...
  • Page 23 10 Trouble-shooting Malfunction Possible cause Solution/Measures Illumination is not ▪ Sabbath mode is active. ▸ Open the appliance door manu- working. ally (e.g. with a standard suction cup). ▸ Hold the button depressed for 3 seconds. ▪ If the illumination turns on: The problem is remedied.
  • Page 24 10 Trouble-shooting Malfunction Possible cause Solution/Measures The temperature ▪ The cooling compartment ▸ Touch any button. zones and the cool- temperature is 8 °C – The current temperature value ing compartments higher than the set tem- is displayed; the cooling com- flash and/or an perature.

  • Page 25: Tips And Tricks

    11 Tips and tricks Tips and tricks 11.1 General information on using the appliance ▪ When closing the appliance door make sure that it forms a proper seal all the way round. The self-closing hinges help keep it closed and sealed: the appliance door closes automatically if the opening angle is between 20–30°.
  • Page 26 ▸ See identification plate Spare parts V-ZUG Ltd provides spare parts for 15 years after the making available on the market of the last appliance with this type designation. Deviations from this are subject to consider- ation of and compliance with the applicable ecodesign regulations on the availability of spare parts.
  • Page 27 13 Disposal Disposal 13.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 13.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 28 Gridiron Building Silom Road N1C 4G London Suriyawong Sub-district GREAT BRITAIN Bangrak District Bangkok 10500 THAILAND HK/MO V-ZUG Hong Kong Co. Ltd. GÜRELLER 12/F, 8 Russell Street Anchor Sit.3A/1-2 Çayyolu Causeway Bay 06690 ÇANKAYA/ANKARA HONG KONG TURKEY Frigo 2000 S.p.A Private enterprise “Stirion”...
  • Page 29 Index Initial set-up ............. 5, 8 Instructions for use ..........5 Addresses of the importers ......28 Interior and accessories ......... 18 Appliance Disposal............ 27 Switching off .......... 11 Maintenance ............. 20 Switching on .......... 10 Model designation ..........2 Appliance functions .........
  • Page 30 Validity..............2 V-ZUG App ............18 V-ZUG-Home..........14, 17 Warnings............21 Warranty claim..........26 Warranty extensions ........31 WLAN connection ..........18...
  • Page 31 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 32 Display elements Functions User settings SilentPlus Display brightness PartyCooling Switch off button tone Sabbath mode V-ZUG-Home Value and status display Temperature unit Upper/Lower cooling compartment (51102) Cooling compartment (51113) 10183760 Fast cooling 1153591-02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
