- Page 1 Operating instructions WineCooler V4000 90 Refrigerating appliance...

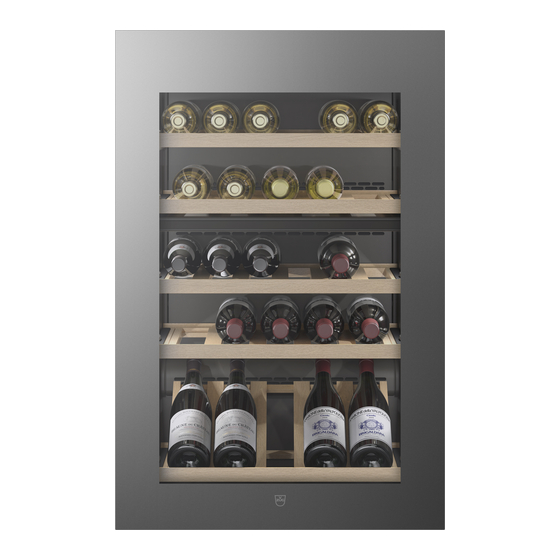

- Page 2 Validity These operating instructions apply to: Model designation Type Model number Size system WineCooler V4000 90 WC4T-51102 51102 Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2021...
-
Page 3: Table Of Contents
Contents Safety warnings 4 Service & Support 27 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 5 Instructions for use.......... 5 Using for the first time 8 Appliance description 8 Structure .............. 8 Operating and display elements...... -
Page 4: Safety Warnings
Safety warnings Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-... -
Page 5: Appliance-Specific Safety Precautions
1 Safety warnings ▪ Refer to the identification plate for in- turer or its Customer Services formation on the required mains or a similarly qualified person voltage, current type and fuse protec- in order to avoid hazard. tion. ▪ All plastering, plasterboarding, wall pa- Appliance-specific safety pering and painting work is to be car- precautions... - Page 6 1 Safety warnings ▪ Dispose of the packaging material in Climate class accordance with local regulations. This appliance is intended for use in a lim- ited ambient temperature range to ensure Correct use proper operation. Information for the ap- ▪ This appliance is intended to be used plicable climate class can be found on the exclusively for the storage of wine.
- Page 7 1 Safety warnings ▪ Cut the power going to the appliance before cleaning. Pull out the mains plug or switch off the fuse. Never pull the mains plug out of the mains socket by the cable or with wet hands. Hold the mains plug and pull it straight out of the mains socket.
-
Page 8: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport material, as well as protective film, if any, from the interior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution and dry thoroughly. -
Page 9: Operating And Display Elements
3 Appliance description Operating and display elements Function buttons Settings Fast cooling Permanent interior illumination Temperature setting Navigation buttons Navigation arrow pointing up/left; adjust value Navigation arrow pointing down/right; adjust value Confirm entry BACK: Cancel or discard entry, ON/OFF (hold depressed for 3 seconds) Display elements: Operating mode User setting SilentPlus Fast cooling... -
Page 10: Operation
4 Operation Operation Basic procedure ▪ Use the navigation arrows (up/left) and (down/right) to select a settable value and to navigate through the operating steps. ▪ The selected set temperature values are displayed for 5 seconds when the door is opened and then the actual temperature values are displayed. -
Page 11: Switching The Appliance Off
5 Using the appliance functions ▸ Touch the button and select the desired temperature for the lower cooling zone. ▸ Confirm with the button to accept the entry. – The temperature setting has been entered successfully. – The temperature will be reached in a few hours, depending on the setting. The effective temperature may at times be different from the selected set temperat- ure value if the door is open for an extended period of time or if warm bottles have been placed inside. - Page 12 5 Using the appliance functions Function Description Permanent in- Interior illumination when the appliance door is closed. terior illumination Activating ▸ Touch the button. ▸ Select the desired level of brightness (1–5) us- ing the buttons. ▸ Confirm with the button.
- Page 13 5 Using the appliance functions Function Description PartyCooling Operation with increased cooling capacity Activating ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button. ▸ Select the desired duration (12, 24 or 48 hours) using the buttons.
- Page 14 5 Using the appliance functions Function Description Display bright- Adjusting the level of brightness for the display ness Selection ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button. ▸ Select the desired level of brightness (1 / 2 / 3) using the buttons.
-
Page 15: Brief Description Of The Appliance Functions
5 Using the appliance functions Function Description Demo mode* This setting enables specialist retailers to put the appliance into the showroom mode for demonstration purposes. The demo mode enables functions to be demonstrated without the appli- ance being switched on. * Note: This setting is not recommended for private use. -
Page 16: Interior And Accessories Door Opener With Touchopen
6 Interior and accessories Sabbath mode When the Sabbath mode is activated, all visual and acoustic warnings as well as operat- ing and display elements are turned off for the selected duration (30, 54 or 78 hours). Opening the appliance door will not affect the illumination or the behaviour of the appli- ance. -
Page 17: Shelves And Presentation Shelves
6 Interior and accessories Shelves and presentation shelves The shelves are not height-adjustable. Shelves with bottles stored on them can be par- tially pulled out. The presentation shelves are an ideal way of showcasing select bottles of wine. Converting a shelf into a presentation shelf: ▸... -
Page 18: Tips And Tricks
7 Tips and tricks Tips and tricks General information on using the appliance ▪ When closing the appliance door make sure that it forms a proper seal all the way round. The self-closing hinges help keep it closed and sealed: the appliance door closes automatically if the opening angle is between 20–30°. -
Page 19: Care And Maintenance
8 Care and maintenance Care and maintenance Cleaning For hygienic storage, the interior should always be kept clean. Do not use any abrasive cleaning agents or scouring cloths. Clean wooden shelves just with a slightly damp cloth without any detergent. Risk of damage to the appliance. -
Page 20: Warning Signal And Alarm
10 Trouble-shooting Warning signal and alarm If the appliance door remains open for a time, the following warning is given: After 3 minutes The LED lights flash with the intensity of the brightness gradually in- creasing and decreasing. After 5 minutes The LED lights flash and an acoustic signal is emitted. - Page 21 10 Trouble-shooting Malfunction Possible cause Solution/Measures Appliance door not ▪ Sabbath mode is active. ▸ Open the appliance door manually opening with (e.g. with a standard suction cup). «TouchOpen». ▸ Hold the button depressed for 3 seconds. ▪ If the illumination turns on: The problem is remedied.
- Page 22 10 Trouble-shooting Malfunction Possible cause Solution/Measures Illumination is flash- ▪ Appliance door is left ▸ Close the appliance door. ing and an acoustic open for longer than 5 – If the alarm is still being emit- signal is emitted. minutes. ted: ▪...
- Page 23 10 Trouble-shooting Malfunction Possible cause Solution/Measures Error messages ▪ Temperature sensor is ▸ Contact Customer Services. F10–F15 faulty. – The appliance switches to the emergency mode. The appliance continues to cool, but it cannot detect the current temperature value and cannot guarantee that the temperature is controlled at the selected set value.
-
Page 24: Technical Data
▸ See identification plate Spare parts V-ZUG Ltd provides spare parts for 15 years after the making available on the market of the last appliance with this type designation. Deviations from this are subject to consider- ation of and compliance with the applicable ecodesign regulations on the availability of spare parts. -
Page 25: Disposal
12 Disposal Disposal 12.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 12.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸... -
Page 26: Index
Index Appliance Noise-reduced operation........ 12 Noises ..............19 Disposal............ 25 Appliance functions ......... 11 Appliance installation ......... 5 ON/OFF ............9, 28 Operating and display elements...... 9 Operation............10 Button tone on/off..........14 PartyCooling............13 Care..............19 Permanent interior illumination...... 12 Cleaning............. - Page 27 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 28 Switch off button tone Value and status display Temperature unit Upper/Lower cooling zone 1131071-01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
