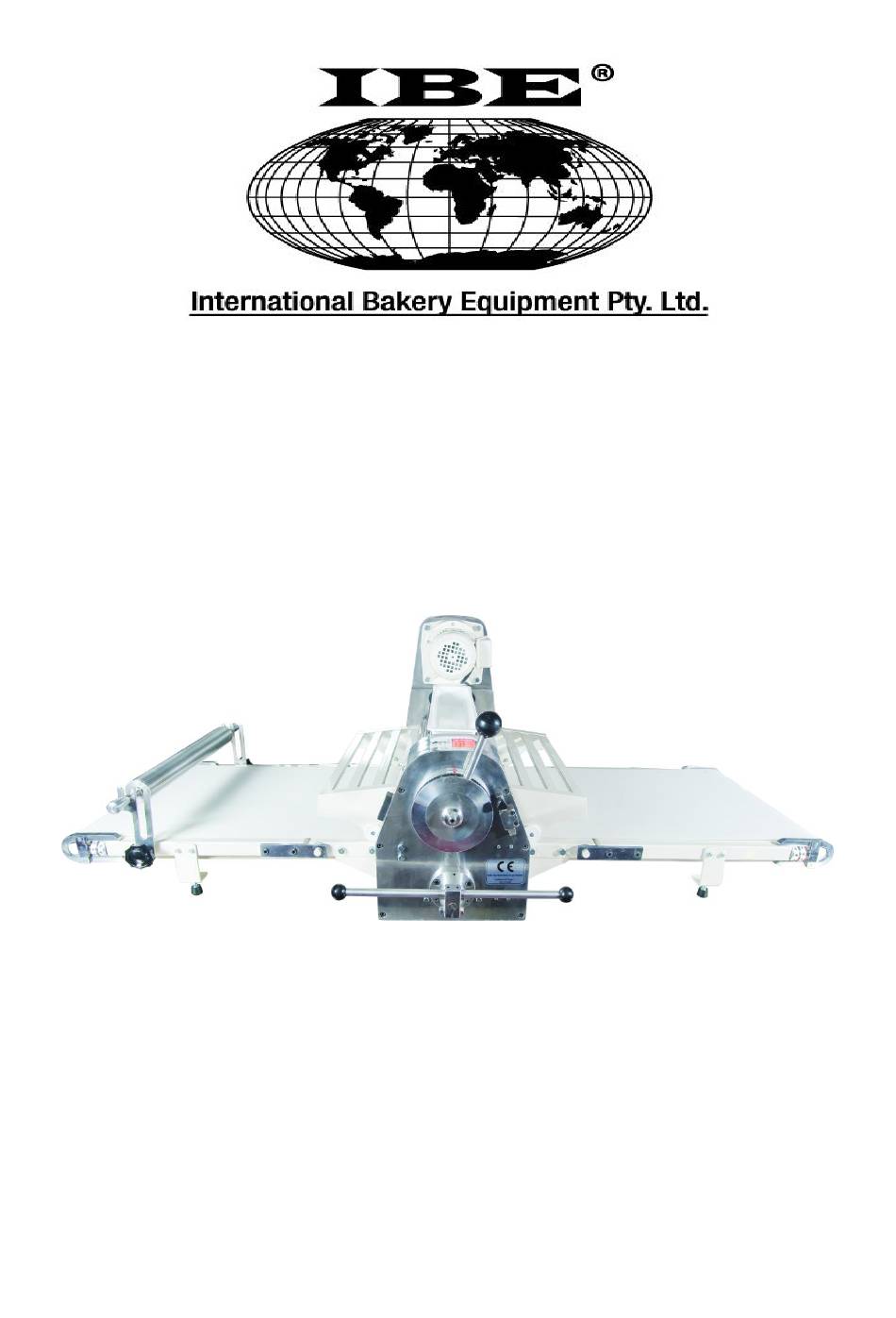

- Page 1 Instruction Manual for Pastry Sheeter 520T INSTRUCTION MANUAL BENCH MODEL PASTRY SHEETER www.allaboutbakery.com.au...
- Page 2 Instruction Manual for Pastry Sheeter 520T MODEL: 520T Contents 1. General Information: 1- Documentation supplied 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine...
-
Page 3: General Information
Instruction Manual for Pastry Sheeter 520T 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street CLONTARF QLD 4019 Australia Phone:... -
Page 4: Use Of This Manual
Instruction Manual for Pastry Sheeter 520T 1.3 Use of this Manual Please read carefully the information supplied in this manual before installing, operating or carrying out maintenance on this machine. This manual must be kept in good condition and stored where it can be easily found when required. -
Page 5: Warranty Terms And Conditions
Instruction Manual for Pastry Sheeter 520T 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However, all verbal claims must be confirmed in writing. I.B.E. Pty Ltd Reserves the right to require return of all claimed defective parts. -
Page 6: Specifications
Instruction Manual for Pastry Sheeter 520T 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) 76.5 Machine Specifications Dimensions Weight Motor Model H.P. (Net) 520T Power Supply Details: 3 Phase, 10amp 4-pin plug top (supplied) Note: The Manufacturer will not be Liable for electrical defects, breakdowns or malfunctioning of the machine for the non compliance with the power supply stated. - Page 7 Instruction Manual for Pastry Sheeter 520T 1.7 Machine Identification Details Type: Bench Model Dough Sheeter Model: 520T Position of Serial Number Identification Plate (Fig 1.1) Serial number Identificatio Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate.
- Page 8 Instruction Manual for Pastry Sheeter 520T 1.8 Main Machine Components Drive Motor Flour Tray Pick up pin Cradle Conveyor Conveyor Belt Belt Finished Fig1.2 Main Machine Components Height Drive Direction On / Off Control button Flour Tray Pick Up Pin 1.9 Safeguards...
-
Page 9: Transport And Installation
Instruction Manual for Pastry Sheeter 520T This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects on or under the belts. • Ensure training in the safe operation of this machine is carried out with all operators. -
Page 10: Installation
Instruction Manual for Pastry Sheeter 520T 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: • Storage of the machine • Installation of the machine •... -
Page 11: Machine Operation
Instruction Manual for Pastry Sheeter 520T • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport. -
Page 12: Intended Operation
Instruction Manual for Pastry Sheeter 520T 3.1 Intended Operation This machine has been designed and manufactured for the safe sheeting of dough’s (i.e puff pastry, Danish and croissant dough’s) with the use of a reversible motor to drive the pressure rollers and sheeter conveyor belts utilising a synchronized two speed in/out feed prevents the stretching and tearing of the dough. - Page 13 Instruction Manual for Pastry Sheeter 520T Fig 3.1 520T Control Components Location Description Operation Performed On / Off When the green switch is pressed the power is turned on. Switch When the red switch is pressed the power is turned off.
-
Page 14: Cleaning And Maintenance
Instruction Manual for Pastry Sheeter 520T • Place dough product to be sheeted on the conveyor belt and lightly dust with flour. • Adjust the roller gap between the upper and lower rollers using the setting handle, (b) to the desired thickness according to the starting thickness of the dough piece to be sheeted. -
Page 15: Maintenance
Instruction Manual for Pastry Sheeter 520T 4.1 Cleaning • Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out. • Keeping the machine cleaned helps to maintain the efficient hassle free operation of the machine. -
Page 16: Spare Parts List
Instruction Manual for Pastry Sheeter 520T It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation. If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you. -
Page 17: Exploded Parts Drawing
Instruction Manual for Pastry Sheeter 520T Description Description Hexagon screw Bearing Washer Gear Aluminium stand Wheel Roller adjusting Handle Conveyor plate holder Plastic knob Supporting pole stand Gear fixing stand Wheel Gear Stop spring Reversible handle Rolling gap adjusting shaft... - Page 18 Instruction Manual for Pastry Sheeter 520T www.allaboutbakery.com.au...
- Page 19 Instruction Manual for Pastry Sheeter 520T www.allaboutbakery.com.au...
-
Page 20: Electrical Wiring Diagrams
Instruction Manual for Pastry Sheeter 520T 4.5 Electrical Wiring Diagrams www.allaboutbakery.com.au... - Page 21 Instruction Manual for Pastry Sheeter 520T Description CS-1 On / Off Switch LS-1 Micro Switch for safety guard LS-2 Micro Switch for safety guard LS-3 Micro Switch for left turning LS-4 Micro Switch for right turning Magnetic contactor for left Magnetic contactor for right www.allaboutbakery.com.au...
