Summary of Contents for IBE PS500

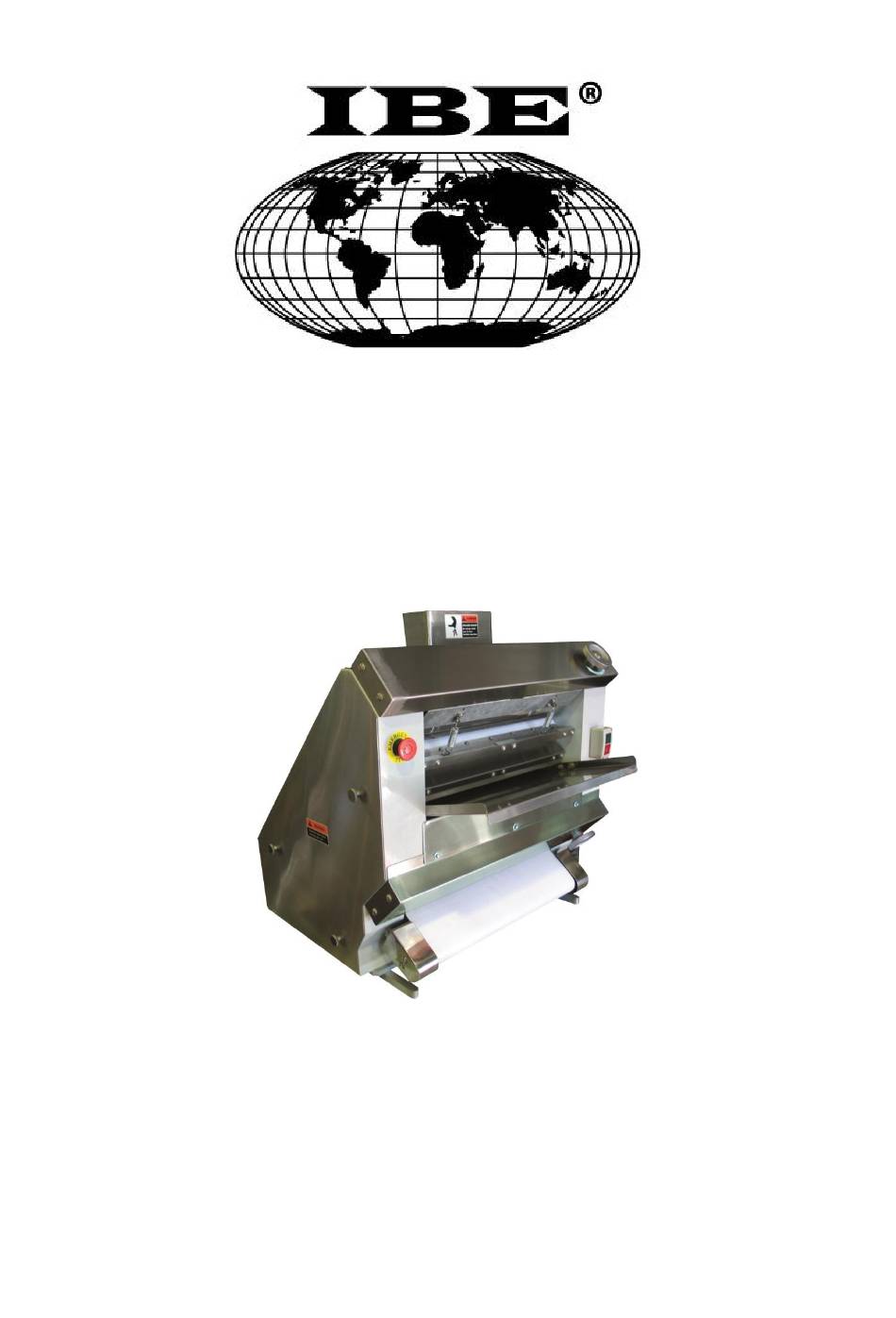

- Page 1 Instruction Manual for Table-top Pizza Sheeter PS500 INSTRUCTION MANUAL TABLE-TOP PIZZA SHEETER www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Table-top Pizza Sheeter PS500 MODEL: PS500 Contents 1. General Information: 1- Documentation supplied 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details... -
Page 3: General Information
Instruction Manual for Table-top Pizza Sheeter PS500 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street Clontarf QLD 4019 Australia... -
Page 4: 4- Intellectual Property Rights
Instruction Manual for Table-top Pizza Sheeter PS500 1.4 Intellectual Property Rights This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for... -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Table-top Pizza Sheeter PS500 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However, all verbal claims must be confirmed in writing. I.B.E. Pty Ltd Reserves the right to require return of all claimed defective parts. -
Page 6: 6- Machine Specifications
Instruction Manual for Table-top Pizza Sheeter PS500 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) Machine Specifications Dimensions Weight Motor Model H.P. (Net) PS500 Power Supply Details: Three Phase, 10amp 4-pin plug top (supplied) Note: The Manufacturer will not be Liable for electrical defects, breakdowns or malfunctioning of the machine for the non compliance with the power supply stated. -
Page 7: 7- Machine Identification Details
Instruction Manual for Table-top Pizza Sheeter PS500 1.7 Machine Identification Details Type: Table-Top Pizza Sheeter Model: PS500 Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate. -
Page 8: 8- Main Components Of The Machine
Instruction Manual for Table-top Pizza Sheeter PS500 1.8 Main Machine Components In Feed Chute Adjusting wheel for upper roller Emergency stop button ON / Off Buttons Intermediate tray Reset switch Out Feed Conveyor Adjusting wheel for lower roller Fig1.2 Main Machine Components... - Page 9 Instruction Manual for Table-top Pizza Sheeter PS500 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects in the in-feed chute on or under the belts.
-
Page 10: Transport And Installation
Instruction Manual for Table-top Pizza Sheeter PS500 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: • Storage of the machine •... -
Page 11: 3- Testing & Safeguards
Instruction Manual for Table-top Pizza Sheeter PS500 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport. -
Page 12: Machine Operation
Instruction Manual for Table-top Pizza Sheeter PS500 3. Machine Operation: 3.1 Intended Operation This machine has been designed and manufactured for the moulding and pressing of pizza dough into pastry disks evenly to a maximum diameter of 45cm with the use of a two-step process to achieve a consistent finished product. -
Page 13: 2- Control Components
Instruction Manual for Table-top Pizza Sheeter PS500 3.2 Control Components Fig 3.1 PS500 Control Components Location Description Operation Performed On / Off When the green switch is pressed the power is turned Switch When the red switch is pressed the power is turned off. -
Page 14: 3- Sheeter Operation
These operating procedures are to be used as a guide, as dough consistency is different from business to business. These steps should be used to set up the PS500 to your specific product. • Adjust upper & lower roller pitch and dust the intermediate tray with flour. -
Page 15: Cleaning & Maintenance
Instruction Manual for Table-top Pizza Sheeter PS500 4. Cleaning &Maintanance: 4.1 Cleaning • Always turn power off at the wall and unplug machine prior to cleaning or maintenance. • This machine should be cleaned at the end of every day, to prevent a build up of dough crumb and flour dust. - Page 16 Instruction Manual for Table-top Pizza Sheeter PS500 4.2 Maintenance It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation. If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you.
- Page 17 Instruction Manual for Table-top Pizza Sheeter PS500 4.3 Spare Parts List Description Description Right machine Sprocket 15T, wall base fasten wheel Right cover Roller 1 Left cover Roller 2 Left machine Roller 3 wall base Motor cover Roller 4 Motor stopper...
- Page 18 Instruction Manual for Table-top Pizza Sheeter PS500 Spare Parts List Continued Description Description Gear adjust rack Motor starter accessory 2 Compression Motor spring 1 Limit switch Grease nipple holder Bearing Conveyor Bearing Scraper 1 Bearing Scraper 2 Bearing Scraper 3...
- Page 19 Instruction Manual for Table-top Pizza Sheeter PS500 www.allaboutbakery.com.au...
- Page 20 Instruction Manual for Table-top Pizza Sheeter PS500 www.allaboutbakery.com.au...
- Page 21 Instruction Manual for Table-top Pizza Sheeter PS500 www.allaboutbakery.com.au...
- Page 22 Instruction Manual for Table-top Pizza Sheeter PS500 www.allaboutbakery.com.au...
- Page 23 Instruction Manual for Table-top Pizza Sheeter PS500 www.allaboutbakery.com.au...
- Page 24 Instruction Manual for Table-top Pizza Sheeter PS500 4.5 Electrical Wiring Diagram www.allaboutbakery.com.au...
