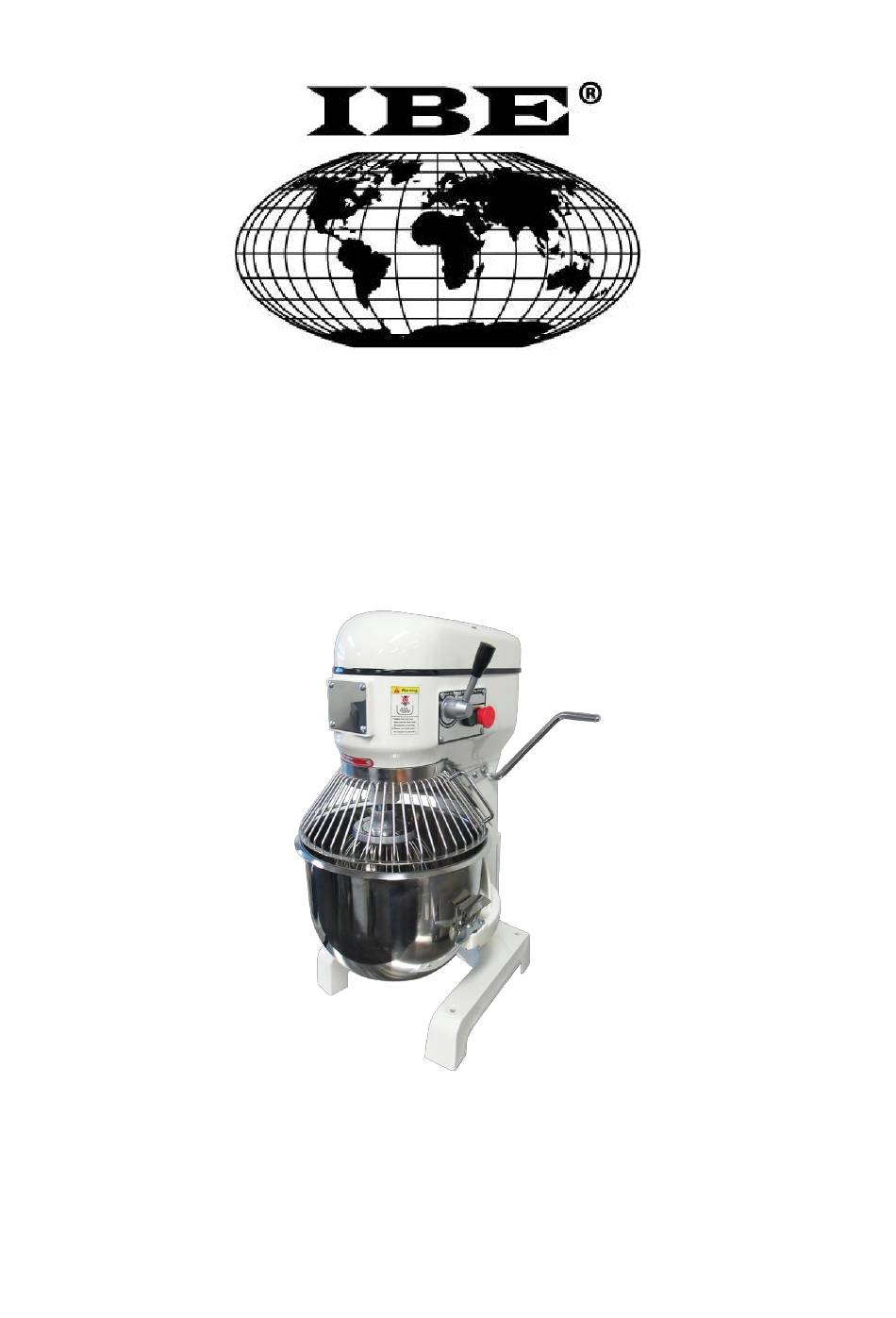

- Page 1 Instruction Manual for 20lt Planetary Mixer TF20B INSTRUCTION MANUAL 20lt Planetary Mixer www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for 20lt Planetary Mixer TF20B MODEL: TF20B Contents 1. General Information: 1- Documentation supplied 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details... -
Page 3: General Information
Instruction Manual for 20lt Planetary Mixer TF20B 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street Clontarf Queensland Australia 4019... -
Page 4: 3- Use Of This Manual
Instruction Manual for 20lt Planetary Mixer TF20B 1.3 Use of this Manual Please read carefully the information supplied in this manual before installing, operating or carrying out maintenance on this machine. This manual must be kept in good condition and stored where it can be easily found when required. -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for 20lt Planetary Mixer TF20B 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter or email. However, all verbal claims must be confirmed in writing. I.B.E. Pty Ltd reserves the right to require return of all claimed defective parts, cost of return freight is not included. -
Page 6: 6- Machine Specifications
Instruction Manual for 20lt Planetary Mixer TF20B 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) Machine Specifications Dimensions Weight Motor Model H.P. (Net) TF20B Power Supply Details: Single Phase, 10amp 3-pin plug top (supplied) Note: The Manufacturer will not be Liable for electrical defects, breakdowns or malfunctioning of the machine for the non-compliance with the power supply stated. -
Page 7: 7- Machine Identification Details
Instruction Manual for 20lt Planetary Mixer TF20B 1.7 Machine Identification Details Type: Planetary Mixer Model: TF20B Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 www.allaboutbakery.com.au... -
Page 8: 8- Main Components Of The Machine
Instruction Manual for 20lt Planetary Mixer TF20B Note: When requesting spare parts please state the serial number found on the serial number identification plate. 1.8 Main Machine Components • Body of the Machine (Fig 1.2) • Stainless Steel Bowl (Fig 1.3) •... - Page 9 Instruction Manual for 20lt Planetary Mixer TF20B Fig1 Fig 1.5 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects in the bowl during the mixing cycle.
- Page 10 Instruction Manual for 20lt Planetary Mixer TF20B Emergency Stop Button Fig 1.6 Note: If the emergency stop button is depressed, do not try to pull it out as this may result in damage to the button, to reset the button turn it clockwise and it will reset out on its own.
- Page 11 Instruction Manual for 20lt Planetary Mixer TF20B Fig 1.7 Safety guard in closed position www.allaboutbakery.com.au...
-
Page 12: Transport And Installation
Instruction Manual for 20lt Planetary Mixer TF20B Limit switched bowl Lift. The bowl lift cradle of this machine has been fitted with a limit switch which will stop the machines operation if the bowl is lowered (Fig1.8) Limited Switched Bowl Lift Fig 1.8 Bowl lift cradle in the raised position. - Page 13 Instruction Manual for 20lt Planetary Mixer TF20B • Do not climb on or place body under machine crate when it is being lifted from the ground or transport veichcle. • When lifting the machine crate ensure forks are spread to the maximum width of the crate and the crate is against the cradle of the forklift (Fig2.1).
-
Page 14: 3- Testing & Safeguards
Instruction Manual for 20lt Planetary Mixer TF20B • A qualified person should correct electrical connection if required. • Train all operators in the safe operation of this machine. 2.3 Testing the safeguards Before starting the machine, the safety devices should be checked according to the following procedure: •... -
Page 15: 2- Control Components
Instruction Manual for 20lt Planetary Mixer TF20B Note: The intended use of this mixer outside of these guidelines may void warranty. 3.2 Control Panel Components Emergency Start Button Stop Button Gear Speed Selector Fig 3.1 TF20B Control Panel Location Description... -
Page 16: Cleaning & Maintenance
Instruction Manual for 20lt Planetary Mixer TF20B 3.3 Operation • Place the ingredients in the bowl with the appropriate attachment. • Place the bowl in the cradle being sure to locate the bowl lug into the position on the cradle and lock the bowl with the lock wings. - Page 17 Instruction Manual for 20lt Planetary Mixer TF20B • Wipe over the entire machine with a damp cloth with a neutral detergent. Harsh chemicals will damage the machine. • Stainless steel bowls and attachments can be washed in the sink with other utensils.
- Page 18 Instruction Manual for 20lt Planetary Mixer TF20B 4.3 Spare Parts List Parts No. Parts Name Parts No. Parts Name Upper Lid Belt Shaft 12T Time Belt Ball Bearing Upper Housing Gear for 3 Level Speed Power Switch 28-1 Gear for High Speed...
- Page 19 Instruction Manual for 20lt Planetary Mixer TF20B 4.4 Exploded Parts Drawing www.allaboutbakery.com.au...
- Page 20 Instruction Manual for 20lt Planetary Mixer TF20B 4.5 Electrical Wiring Diagram Safety Guard Micro Switch Stop Start Contactor www.allaboutbakery.com.au...
