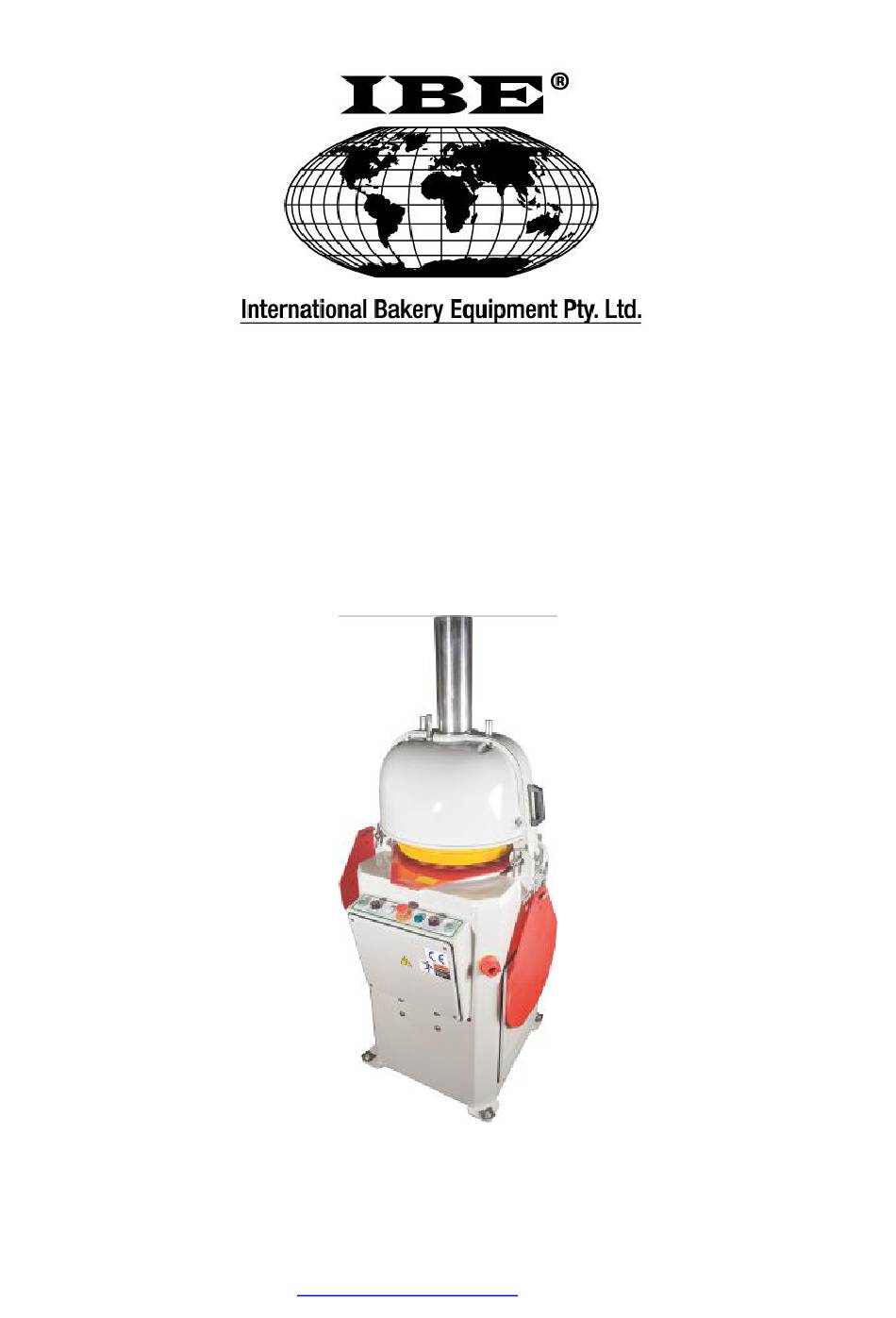

- Page 1 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR INSTRUCTION MANUAL www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR FULLY-AUTOMATIC BUN DIVIDER ROUNDER MODEL: FABDR Contents 1. General Information: 1- Documentation supplied 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications... -
Page 3: General Information
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 5- Electrical diagram 6-Hydraulic control diagram 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street, CLONTARF QLD 4019... -
Page 4: 3- Use Of This Manual
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 1.3 Use of this Manual Please read carefully the information supplied in this manual before installing, operating or carrying out maintenance on this machine. This manual must be kept in good condition and stored where it can be easily found when required. -
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However all verbal claims must be confirmed in writing. I.B.E. Pty Ltd Reserves the right to require return of all claimed defective parts. -
Page 6: 6- Machine Specifications
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR • Normal wear parts, such as, Conveyor belts, ‘v’ belts, ‘o’ rings and scraper and slicer blades. The Warranty on these parts is, they will be in satisfactory operating condition at time of delivery and initial start-up. -
Page 7: 7- Machine Identification Details
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 1.7 Machine Identification Details Type: Semi-Automatic Bun Divider Rounder Model:FA BDR Position of Serial Number Identification Plate(plate not shown) (Fig 1.1) Serial number Identification plate Fig 1.1 www.allaboutbakery.com.au... -
Page 8: 8- Main Components Of The Machine
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR Note: When requesting spare parts please state the serial number found on the serial number identification plate. 1.8 Main Machine Components www.allaboutbakery.com.au... - Page 9 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR Pressure setting Rounding plate Plate storage hook Control Panel Emergency stop switch Dividing Plates Main Power Switch Fig1.2 Main Machine Components 1.9 Safeguards www.allaboutbakery.com.au...
-
Page 10: Transport And Installation
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects in under the head of the machine. •... - Page 11 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: • Storage of the machine •...
- Page 12 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport.
-
Page 13: Machine Operation
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 3. Machine Operation: 3.1 Intended Operation This machine has been designed and manufactured for the safe dividing and rounding of dough’s automatically with the use of a hydraulic system. With a dough range of 900g to 3600g divided into bread rolls then utilising an even balanced pressure plate and the dividing blades to ensure an even pressure and accurate dividing of the dough into 30 pieces of equal weight. -
Page 14: 2- Control Components
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 3.2 Control Components (see diagram) Fig 3.1 FABDR Control Components www.allaboutbakery.com.au... - Page 15 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR Location Description Operation Performed Weight adjustment Weight adjustment for the size of the dough piece screw Control panel Control components of the machine On buttons Start the dividing /rounding process by pressing these two buttons at the same time.
-
Page 16: 3- Dividing Operation
These operating procedures are to be used as a guide, as every bakeries dough consistency is different. These steps should be used to set up the FABDR to your specific product and by keeping records of the settings it will assist in the day to day operation of this machine, be aware though you may still need to fine tune the settings that you record as your dough can change i.e. -
Page 17: Cleaning & Maintenance
Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 4. Cleaning &Maintanance: 4.1 Cleaning • Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out. • Keeping the machine cleaned helps to maintain the efficient hassle free operation of the machine. - Page 18 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 4.2 Maintenance It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation. If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you.
- Page 19 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 4.3 Spare Parts List Description Description Support plate Transmission belt wheel Support spring block Motor belt wheel Support stand Nut for revolving stand Arch fixed stand Moving sheet Extension spring Pendulum stand Flour frame Axel of leaver stand Back hood...
- Page 20 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR Spare Parts List Continued Description Description Hydraulic cylinder/up Oil box cap Hydraulic cylinder Motor BL-1 Fixed plate belt Stop plate Bearing Fixed rod/up Bearing button body Support plate bearing Oil box www.allaboutbakery.com.au...
- Page 21 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 4.4 Exploded Parts Drawing www.allaboutbakery.com.au...
- Page 22 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR www.allaboutbakery.com.au...
- Page 23 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR www.allaboutbakery.com.au...
- Page 24 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 4.5 Electrical Wiring Diagrams www.allaboutbakery.com.au...
- Page 25 Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR 4.6 Hydraulic Control System www.allaboutbakery.com.au...
