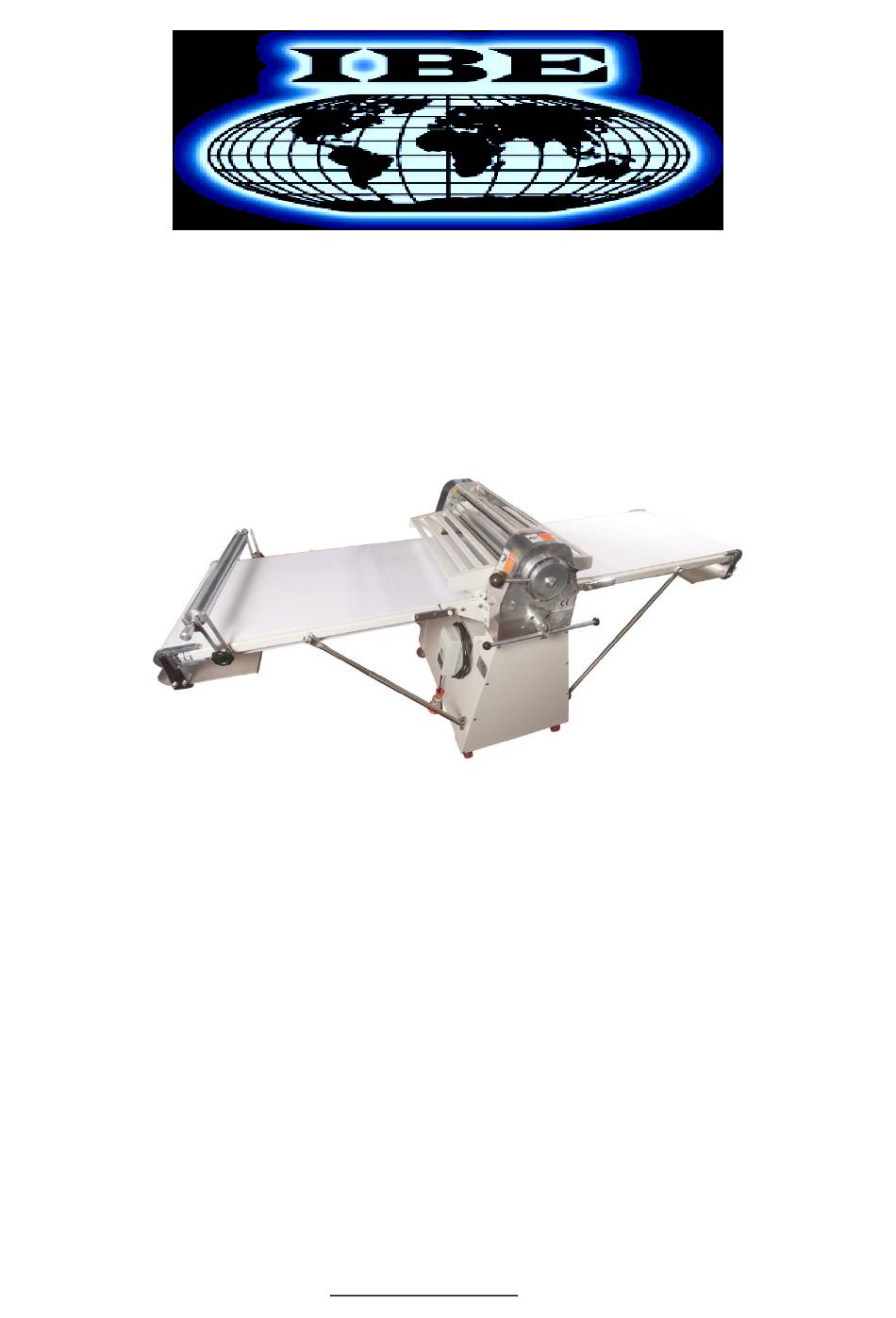

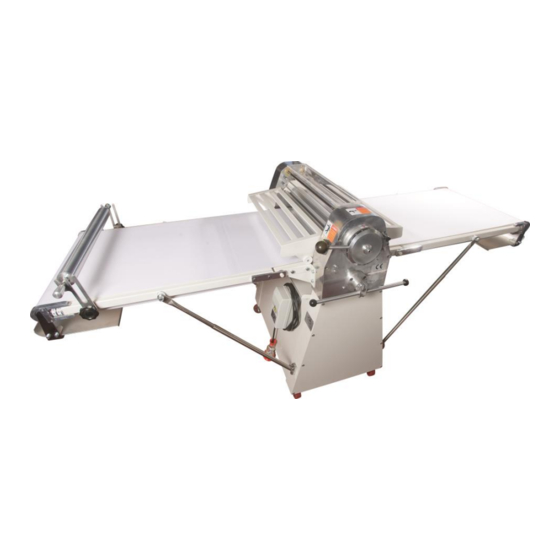

- Page 1 Instruction Manual for Pastry Sheeter 650F INSTRUCTION MANUAL FLOOR MODEL PASTRY SHEETER MODEL: 650F www.ibe-bakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Pastry Sheeter 650F Contents 1. General Information: 1- Documentation supplied 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine 9- Safeguards 2. -
Page 3: General Information
Instruction Manual for Pastry Sheeter 650F 1. General Information: 1.1 Documentation supplied • Instruction manual • Spare parts list • Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd (I.B.E.) Address: 20 Brewer Street, CLONTARF QLD 4019 Australia Phone:... - Page 4 Instruction Manual for Pastry Sheeter 650F This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for...
-
Page 5: 5- Warranty Terms And Conditions
Instruction Manual for Pastry Sheeter 650F 1.5 Warranty Terms and Conditions • Warranty becomes effective from date of delivery. • Warranty claims may be made by telephone, letter, email or fax. However all verbal claims must be confirmed in writing. I.B.E. Pty Ltd Reserves the right to require return of all claimed defective parts. -
Page 6: 6- Machine Specifications
Instruction Manual for Pastry Sheeter 650F 1.6 Specifications Crate Dimensions: Length (cm) Width (cm) Height (cm) Weight (Kg) 77.5 Machine Specifications Dimensions Weight Motor Model H.P. (Net) 650F Power Supply Details: 3 Phase, 10amp 4-pin plug top (supplied) Note: The Manufacturer will not be Liable for electrical defects, breakdowns or malfunctioning of the machine for the non compliance with the power supply stated. -
Page 7: 7- Machine Identification Details
Instruction Manual for Pastry Sheeter 650F 1.7 Machine Identification Details Type: Floor Model Dough Sheeter Model: 650F Position of Serial Number Identification Plate (Fig 1.1) Serial number Identification plate Fig 1.1 Note: When requesting spare parts please state the serial number found on the serial number identification plate. -
Page 8: 8- Main Components Of The Machine
Instruction Manual for Pastry Sheeter 650F 1.8 Main Machine Components Flour Tray Pick up pin Conveyor Conveyor Cradle Belt Belt Catch Tray Catch Tray Drive Finished Fig1.2 Main Machine Components Direction Height Guide Control Flour Tray Pick Up Pin www.ibe-bakery.com.au... - Page 9 Instruction Manual for Pastry Sheeter 650F 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; • Do not place foreign objects on or under the belts. •...
-
Page 10: Transport And Installation
Instruction Manual for Pastry Sheeter 650F 2. Transport and Installation: 2.1 Transport The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: • Storage of the machine •... -
Page 11: 3- Testing & Safeguards
Instruction Manual for Pastry Sheeter 650F 2.2 Installation • Ensure transport crate and all protective packaging is removed. • Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. • When the machine has been unpacked, check the condition of the machine. Any visible damage indicates that the machine has been dropped or hit by something during transport. -
Page 12: Machine Operation
Instruction Manual for Pastry Sheeter 650F 3. Machine Operation: 3.1 Intended Operation This machine has been designed and manufactured for the safe sheeting of dough’s (i.e puff pastry, Danish and croissant dough’s) with the use of a reversible motor to drive the pressure rollers and sheeter conveyor belts utilising a synchronized two speed in/out feed prevents the stretching and tearing of the dough. -
Page 13: 2- Control Components
Instruction Manual for Pastry Sheeter 650F 3.2 Control Components Fig 3.1 650F Control Components Location Description Operation Performed On / Off When the green switch is pressed the power is turned on. Switch When the red switch is pressed the power is turned off. -
Page 14: 3- Sheeter Operation
Instruction Manual for Pastry Sheeter 650F 3.3 Sheeter Operation • Place dough product to be sheeted on the conveyor belt and lightly dust with flour. • Adjust the roller gap between the upper and lower rollers using the setting handle, (b) to the desired thickness according to the starting thickness of the dough piece to be sheeted. -
Page 15: Cleaning & Maintenance
Instruction Manual for Pastry Sheeter 650F 4. Cleaning &Maintanance: 4.1 Cleaning • Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out. • Keeping the machine cleaned helps to maintain the efficient hassle free operation of the machine. - Page 16 Instruction Manual for Pastry Sheeter 650F 4.2 Maintenance It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation. If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you.
- Page 17 Instruction Manual for Pastry Sheeter 650F 4.3 Spare Parts List Description Description Hexagon screw Bearing Washer Gear Aluminium stand Wheel Roller adjusting Handle Conveyor plate holder Plastic knob Supporting pole stand Gear fixing stand Wheel Gear Stop spring Reversible handle...
- Page 18 Instruction Manual for Pastry Sheeter 650F 4.4 Exploded Parts Drawing www.ibe-bakery.com.au...
- Page 19 Instruction Manual for Pastry Sheeter 650F www.ibe-bakery.com.au...
- Page 20 Instruction Manual for Pastry Sheeter 650F 4.5 Electrical Wiring Diagrams www.ibe-bakery.com.au...
- Page 21 Instruction Manual for Pastry Sheeter 650F Description CS-1 On / Off Switch LS-1 Micro Switch for safety guard LS-2 Micro Switch for safety guard LS-3 Micro Switch for left turning LS-4 Micro Switch for right turning Magnetic contactor for left Magnetic contactor for right www.ibe-bakery.com.au...
