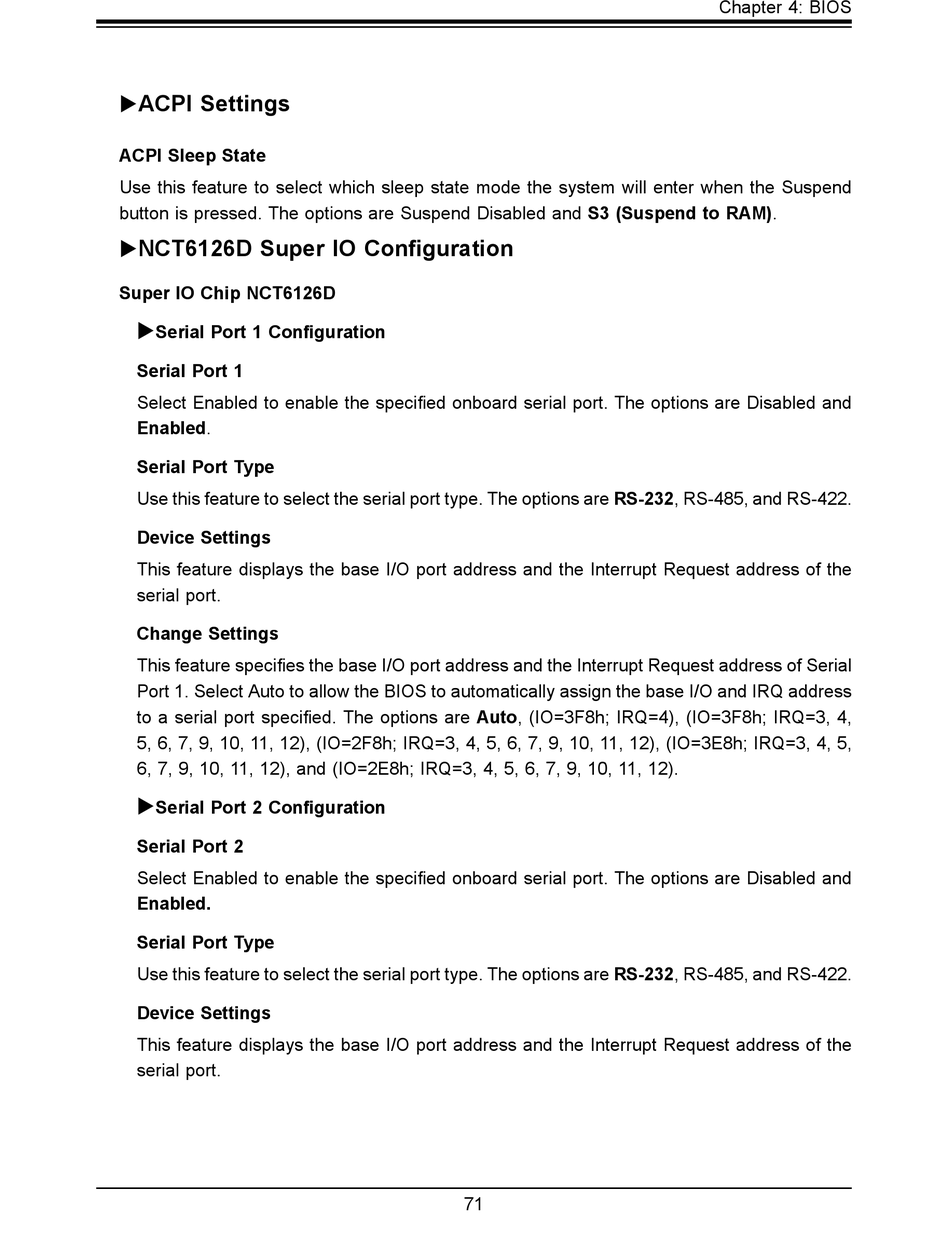

ACPI Settings

ACPI Sleep State
Use this feature to select which sleep state mode the system will enter when the Suspend
button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).
NCT6126D Super IO Configuration

Super IO Chip NCT6126D

Serial Port 1 Configuration
Serial Port 1
Select Enabled to enable the specified onboard serial port. The options are Disabled and
Enabled.
Serial Port Type
Use this feature to select the serial port type. The options are RS-232, RS-485, and RS-422.
Device Settings
This feature displays the base I/O port address and the Interrupt Request address of the
serial port.
Change Settings
This feature specifies the base I/O port address and the Interrupt Request address of Serial
Port 1. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address
to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4,
5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=3E8h; IRQ=3, 4, 5,
6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Serial Port 2 Configuration
Serial Port 2
Select Enabled to enable the specified onboard serial port. The options are Disabled and
Enabled.
Serial Port Type
Use this feature to select the serial port type. The options are RS-232, RS-485, and RS-422.
Device Settings
This feature displays the base I/O port address and the Interrupt Request address of the
serial port.
