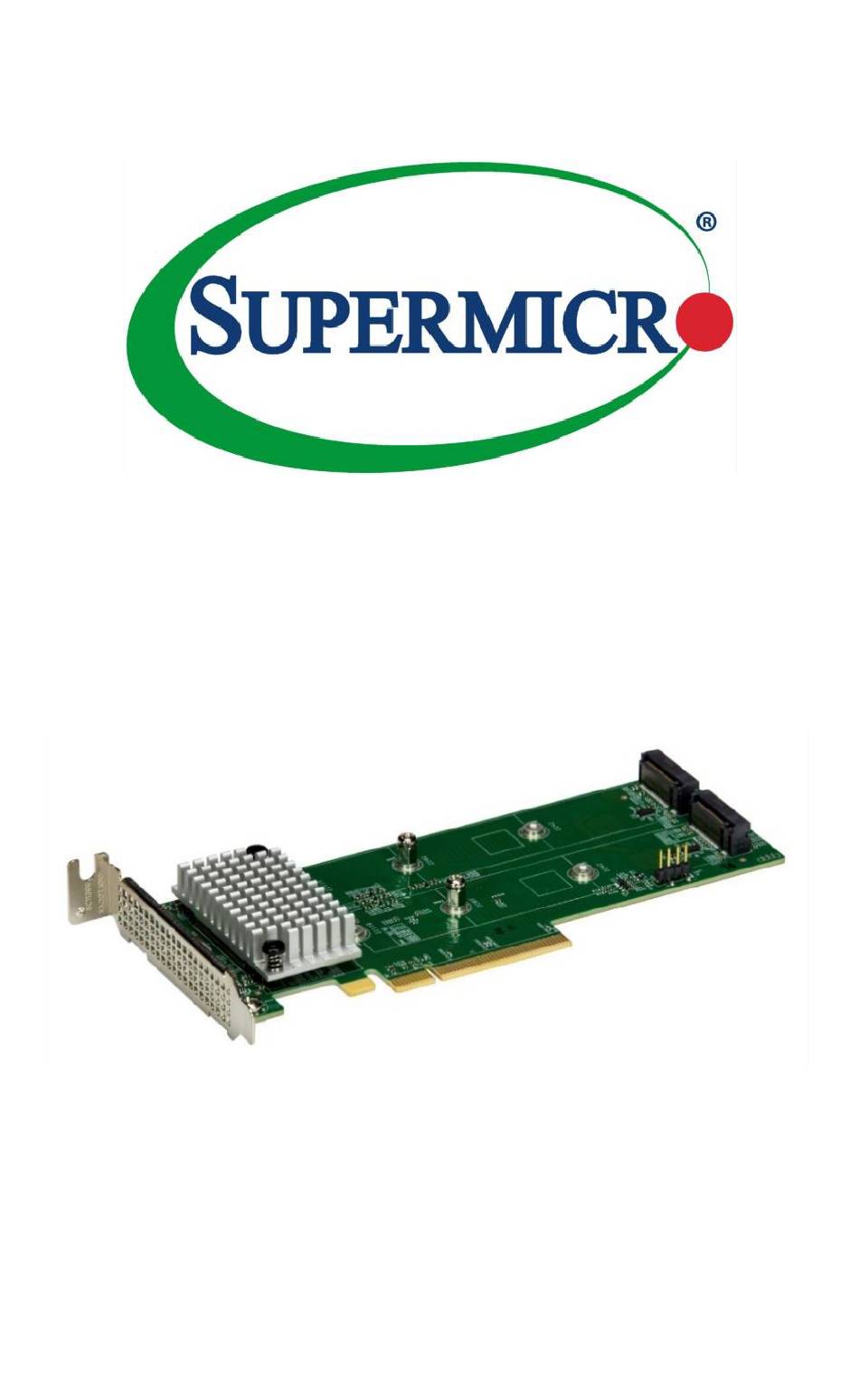

2H8M2 controller card. About this Controller Card The AOC-SLG4-2H8M2 is a PCIe Gen 4.0 x8 M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs with RAID 0 and RAID 1. Leveraging the cutting-edge power of PCI Express 4.0 technology, the M.2 solid state technology is an optimized, high-performance, scalable storage solution.
Warning: Important information is given to ensure proper system installation or to prevent damage to the components or injury to yourself. Note: Additional information is given for proper system setup. Supermicro AOC-SLG4-2H8M2 User’s Guide...
1-1 Overview Congratulations on purchasing your expansion card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards of quality and performance. For product support and updates, please refer to our website at https://www.supermicro.com.
2-1 Controller Card Layout and Components Figure 2-1. AOC-SLG4-2H8M2 The AOC-SLG4-2H8M2 is a low-profile PCIe Gen 4.0 x8 M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs with RAID 0 and RAID 1.
2-2 Major Components Figure 2-2. AOC-SLG4-2H8M2 Front Layout The following major components are on the AOC-SLG4-2H8M2: M.2 Connector 1 M.2 Connector 2 UART Header SBL Jumper Activity LEDs Overtemp LED Heartbeat LED Drive Fault LED System Fault LED Supermicro AOC-SLG4-2H8M2 User’s Guide...
2-3 Connectors and LEDs M.2 Sockets There are two M.2 sockets on the controller card. Figure 2-3. AOC-SLG4-2H8M2 NVMe Sockets CN1: M.2 Socket 1 CN2: M.2 Socket 2 Connection Location Function M.2 Socket (support 22110, 2280, 2242) M.2 Socket (support 22110, 2280, 2242)
Page 14
Headers and Jumpers There are two headers/jumpers on the AOC-SLG4-2H8M2. See the table below for information: Header/Jumper Descriptions Header/Jumper Purpose J2: UART UART Jumper, for engineering debug J3: SBL Serial Boot Loader Jumper, for engineering test Figure 2-4. Headers and Jumpers Positions...
Page 15
Two Activity LEDs, designated LED5 and LED6 One Overtemp LED, designated LED2 One Heartbeat LED, designated LED4 One Drive Fault LED, designated LED3 One System ERROR LED, designated LED1 Figure 2-5. AOC-SLG4-2H8M2 LED Positions LED Status LED Position Color Function...
2-4 Standoffs The AOC-SLG4-2H8M2 is designed with movable standoffs which support three different M.2 SSD lengths. Place the standoffs as indicated below: Standoff Descriptions M.2 Length Standoff Positions 2242 22mm x 42mm SRW1 and SRW4 2280 22mm x 80mm SRW2 and SRW5...
Note: To avoid damaging your components and to ensure proper installation, be sure to always connect the power cord last, and always remove it before adding, removing, or changing any hardware components. Supermicro AOC-SLG4-2H8M2 User’s Guide...
3-2 Installing Controller Cards The AOC-SLG4-2H8M2 supports two M.2 SSDs of 42mm, 80mm, or 110mm in length. Visit the Supermicro website for a current list of supported M.2 SSDs. Installing M.2 and Heat Sink Install two M.2 heat sink dedicated Studs (black) on SRW3 and SRW6.
Page 19
Figure 3-2. Securing the M.2 heat sink to the Controller Card Note 1: Your add-on card may not look exactly like the one pictured. Note 2: Keep unused parts in the parts package for future use. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Refer to the instructions that came with your M.2 SSD and follow the manufacturer's recommended steps for installing the NVMe driver. Download the latest drivers from the Supermicro project board at https://www.supermicro.com/wdl/driver. 3-4 Uninstalling the Drivers To Uninstall the Drivers in Windows: Follow the instructions provided by your M.2 SSD manufacturer.
<SAS 3808> Configuration Utility. If you do not wish to configure RAID settings, skip this section and go directly to OS installation. 4-1 RAID Minimum Drive Requirements The AOC-SLG4-2H8M2 add-on card supports up to two M.2 SSDs with RAID 0 and RAID 1. RAID...
Follow the steps below to use the BROADCOM <SAS 3808> Configuration Utility. Reset the system. Press <DEL> to enter the BIOS Setup Utility. AOC-SLG4-2H8M2 only supports UEFI mode and a very limited legacy mode. If the BROADCOM <SAS 3808> Configuration Utility option is not visible, select PCIe/PCI/PnP Configuration and then a CPU slot.
Page 23
CPU1 Slot 1 PCI-E X16 OPROM Selected When the below screen appears, select EFI mode, then press <F4> to save and exit. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 24
Press <ESC> to reach the Advanced tab, then select BROADCOM <SAS 3808> Configuration Utility and press <Enter>. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 25
Enter Main Menu page. Select Configuration Management from the Main Menu submenu. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 26
Select Create Virtual Drive and press <Enter>. On the Create Virtual Drive menu, navigate to Select RAID Level and press <Enter>. Use the arrow keys to select a RAID level and press <Enter>. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 27
Navigate to Select Drives, as shown below, and press <Enter>. On the Select Drives menu, select the unconfigured drives and choose Enabled. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 28
Select Apply Changes and press <Enter>. On the Create Virtual Drive menu, navigate to Save Configuration and press <Enter>. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 29
Select the Yes option and then confirm Enabled. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 30
The below screen appears once Virtual Drive creation is successful. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 31
After completing the steps to use the BROADCOM <SAS 3808> Configuration Utility, there are a few optional actions or screenshots that that you can observe, act on, or simply ignore. These options include the following. Select Virtual Drive Management. Check virtual drive status. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Navigate to the Boot tab. Use the arrow keys to select Boot mode select and press <Enter>. The options are LEGACY, UEFI, and DUAL. Set Boot mode select to UEFI. For the changes to take effect, press <F4> to save the settings and exit the BIOS Setup Utility. Supermicro AOC-SLG4-2H8M2 User’s Guide...
5-2 Secure Boot/Secure Boot Mode/CSM Support Features 1. Press <DEL> during system boot to enter the BIOS Setup Utility. Navigate to the Security tab as shown below. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 36
Custom to change the image execution policy and to manage secure boot keys. CSM Support Select Enabled for legacy Compatibility Support Module (CSM) support, which will provide compatibility support for traditional legacy BIOS used for system boot. The options are Disabled and Enabled Supermicro AOC-SLG4-2H8M2 User’s Guide...
5-3 Secure Boot Settings To have secure boot support, follow the steps below. Set Secure Boot Mode to Standard. Press Yes to install factory default keys as needed. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 38
Note: The Key Management menu will become unavailable when Secure Boot Mode is set to Standard. For the changes to take effect, press <F4> to save the settings and exit the BIOS Setup Utility. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 39
Press <DEL> during system boot to enter the BIOS Setup Utility. Navigate to the Security tab and enter the Secure Boot menu. Navigate to the CSM Support option and set it to Disabled. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 40
For the changes to take effect, press <F4> to save the settings and exit the BIOS Setup Utility. Press <DEL> during system boot to enter the BIOS Setup Utility. Navigate to the Security tab and enter the Secure Boot menu. Set Secure Boot to Enabled. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 41
Navigate to the Security tab and enter the Secure Boot menu. The following screen will appear. Note: Once Secure Boot is enabled, CSM Support will become disabled, and the legacy environment is no longer valid. The authorized UEFI support includes UEFI OS, AOC UEFI FW, and UEFI PXE server. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 42
Now that Secure Boot is enabled, navigate to the Advanced tab, and select BROADCOM <SAS 3808> Configuration Utility. The following screen will appear. Supermicro AOC-SLG4-2H8M2 User’s Guide...
Page 43
