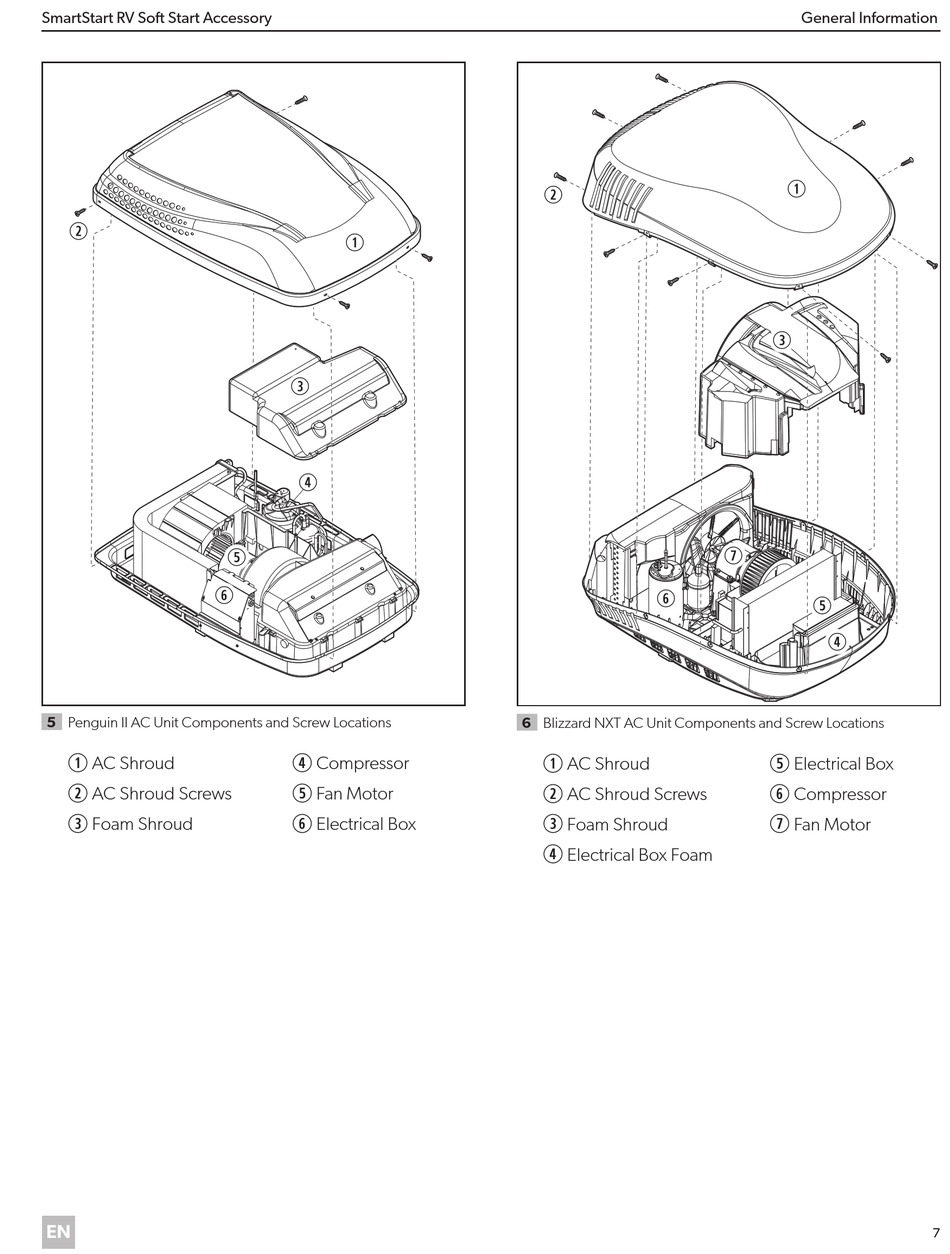

5 Penguin II AC Unit Components and Screw Locations
AC Shroud
q
AC Shroud Screws
w
Foam Shroud
e
EN
q q
e e
r r
t t
Compressor
r
Fan Motor
t
Electrical Box
y
w w
y y
6 Blizzard NXT AC Unit Components and Screw Locations
AC Shroud
q
AC Shroud Screws
w
Foam Shroud
e
Electrical Box Foam
r
General Information
q q
e e
u u
t t
r r
Electrical Box
t
Compressor
y
Fan Motor
u
