Summary of Contents for Prolon NC2000
- Page 1 QUICK START GUIDE BLUETOOTH, NETWORK CONTROLLER, DIGITAL THERMOSTAT AND TREE-COM www.proloncontrols.com | info@proloncontrols.com 17 510 rue Charles, Suite 100, Mirabel, QC, J7J 1X9 REV 6.0 PL-QCK-MIX-EN...
-
Page 2: Table Of Contents
Prolon. All specifications are nominal and TREE-COM ..................20 (PL-TREE-COM) may change as design improvements are introduced. Prolon shall not be liable for damages resulting from misapplication or misuse of its products. All trademarks are the property of their Product Overview .................... 20 respective owners. -
Page 3: Bluetooth (Pl-485-Bt)
The PL-485-BT requires drivers on the computer for it to function. The following is required: drivers are included along with the Prolon Focus Application. If your computer still cannot locate the drivers, please direct it to manually • Prolon Focus Application (free - see below for details) search in the Prolon installation folder, in the ‘Drivers’... -
Page 4: Battery Precautions
Bluetooth (PL-485-BT) Regulatory and Safety Notices cal since it can be used to quickly connect to Prolon controllers that are equipped with a similar RJ45 jack using a standard CAT5 cable Model Name: PL-485-BT (included). This approach saves time since there is no need to cut and strip wires. - Page 5 Bluetooth (PL-485-BT) • Consult the dealer or an experienced radio/TV technician for help. Déclaration d’exposition à la radiation: Cet équipement respecte les limites d’exposition aux rayonnements IC définies pour un environnement non contrôlé. Cet équipement doit To comply with FCC/IC RF exposure limits for general population / être installé...
-

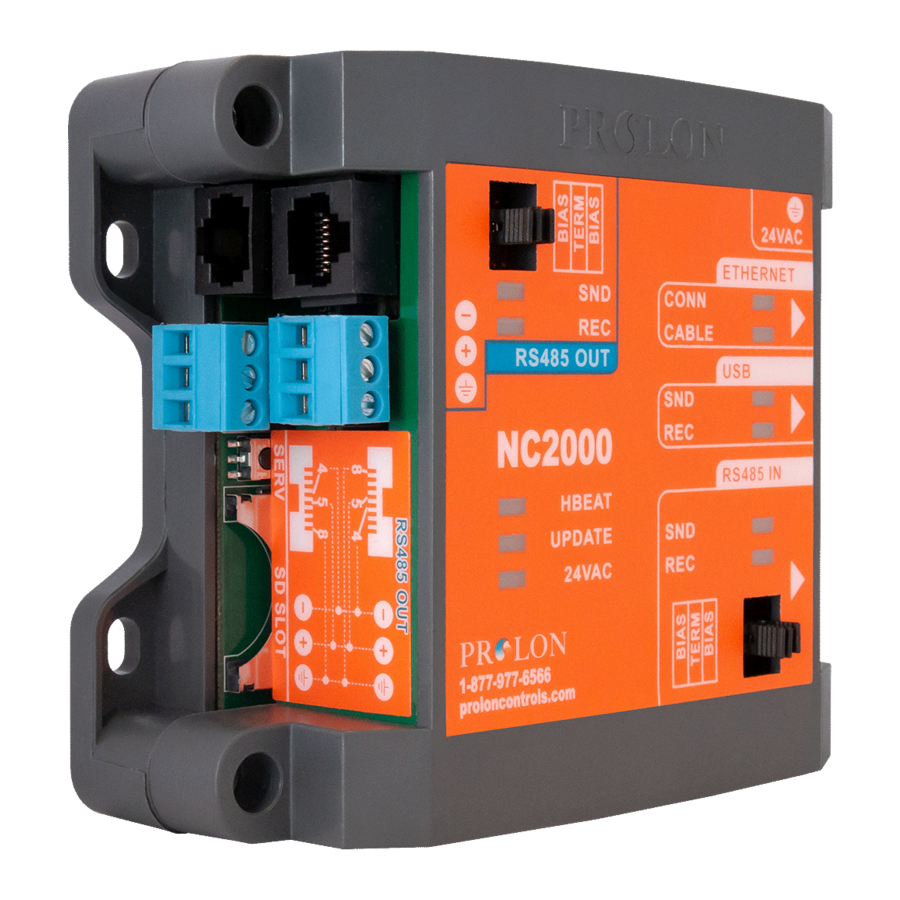

Page 6: Network Controller (Pl-Nc2000)
Network Controller (PL-NC2000) RS-485 OUT RS-485 OUT Supply 24 VAC Supply 24 VAC (to controllers) (to controllers) Communication Settings Reset Button Communication Settings Reset Button Ethernet connection Ethernet connection USB connection to PC USB connection to PC RS-485 IN from PL-485-BT... -
Page 7: How To Connect A Computer To Prolon Controllers
PL-NC2000 (Network Controller) PL-NC2000 (Network Controller) Use this method to connect to a PL-NC2000 with a USB cable. NOTE: Use this method to connect to a PL-NC2000 over an IP Connection. NOTE: The computer and the PL-NC2000 must be on the same subnet Use a Type-A to Type-A USB Cable. -
Page 8: Pl-485-Bt Connection
PL-NC2000 (Network Controller) PL-M2000-XXX (Unit Controller) Use this method to connect to a PL-NC2000 using the PL-485-BT converter. NOTE: USB Cable (Type A to Type B) and CAT5e cable are Use this method to connect to a PL-M2000-XXX using the PL-485-BT provided with PL-485-BT converter. -
Page 9: Digital Thermostat (Pl-T1100)
Digital Thermostat (PL-T1100) Installation 1. Open casing to remove back cover by pushing on the tab located underneath the thermostat. (See Figure 1) 2. Pull wire(s) throught central hole of back cover. 3. Screw in the back cover to the wall. 4. -
Page 10: Inputs / Outputs
Digital Thermostat (PL-T1100) Inputs / Outputs Changing the setpoint External 24 VAC DO + Home Screen Setpoint Screen DO - Heat SP External load Scroll or tap (any direction) Digital Output (triac dry contact) Cool SP View current zone Optional temperature thermistor Tap anywhere... -
Page 11: Tree-Com (Pl-Tree-Com)
Modbus protocol. Its main purpose is to provide a Setting the subnet means to wirelessly extend the standard RS485 wired daisy-chains used by existing Prolon HVAC control products for new buildings and The subnet for the device can be set using the onboard dipswitches. for retrofits. -
Page 12: Leds
ROOT using dipswitch #8. When the LED is ON, this device is set Changes or modifications not expressly approved by Prolon Inc. could as the ROOT for its subnet. If the LED is off, it is instead a LEAF. - Page 13 TREE-COM (PL-TREE-COM) harmful interference in a residential installation. This equipment licence-exempt RSS(s). Operation is subject to the following two gene-rates uses and can radiate radio frequency energy and, if not conditions: installed and used in accordance with the instructions, may cause (1) This device may not cause interference.
-
Page 14: Technical Specifications
Compliance PLEASE NOTE, for the PL-485-BT see page 7. PLEASE NOTE, for the PL-TREE-COM see page 23. Network Controller (PL-NC2000) • cULus Listed; UL 916 Energy Management Equipment, File E364757, Vol.1 • CAN/CSA-C22.2 No. 2015-12, Signal Equipment • FCC Compliant to CFR47, Part 15, Subpart B, Class B •...
