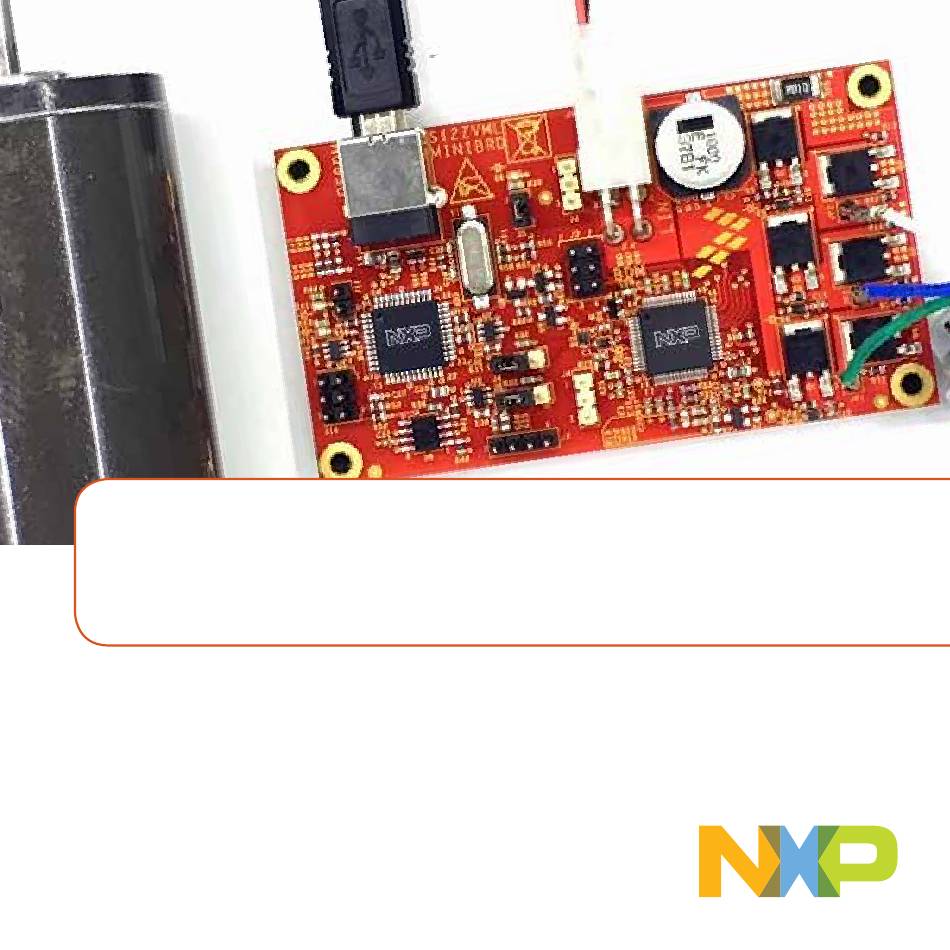

- Page 1 Quick Start Guide S12ZVML-MINIKIT 3-phase PMSM Development Kit with NXP S12ZVML128 MCU FREEDOM DEVELOPMENT PLATFORM...
- Page 2 Quick Start Guide 3-PHASE BLDC DEVELOPMENT KIT WITH NXP S12ZVML128 MCU 40W PM Motor Part Number: 45ZWN24-4 S12ZVML-MINIBRD...
- Page 3 www.nxp.com GET TO KNOW THE S12ZVML-MINIBRD Load Terminals 3-phase MOSFET Bridge with Decoupling Capacitor and Load Current Sense Resistor FPO - need better image MC9S12ZVML128 MCU With Load Current Sense Circuit Digital Input/ Output Analog / Digital Input User LED Serial Communication Interface...
- Page 4 Quick Start Guide GET TO KNOW THE S12ZVML-MINIBRD FPO - need better image Reverse Battery Protection Boost Circuit Figure 1: Back side of S12ZVML-MINIBRD...
- Page 5 www.nxp.com S12ZVML-MINIBRD FEATURES Hardware Software • S12ZVML-MINIBRD— • Automotive Motor Control MC9S12ZVML128 with LIN connectivity Algorithm—Sensorless control of support, BDM and OSBDM the BLDC motor based on Six-step downloading and debugging commutation control technique allowing torque/speed control with low • Low Cost PM Motor—3-phase PM CPU load motor,24VDC,4000RPM,40W,45Z WN24-40...
-
Page 6: Connect The Power Supply
Quick Start Guide STEP-BY-STEP INSTRUCTIONS Download BLDC Motor Download Control Software Package Software Visit nxp.com/S12ZVMLMINIBRD. Download installation software Navigate the “Jump Start Your Design” section and download the latest version and documentation under of documentation and software package. “Jump Start Your Design” at nxp.com/AutoMCDevKits. - Page 7 www.nxp.com STEP-BY-STEP INSTRUCTIONS CONTINUED Connect S12ZVMLMINIBRD to the PC FreeMASTER using the USB cable. Allow the PC to Setup automatically configure the USB drivers if • Start the FreeMASTER application needed. • Open FreeMASTER project Re-program the MCU using MC_DevKits\S12ZVMLMINIBRD\ CodeWrrior IDE sw\S12ZVMLMINIBRD_BLDC_ SW_CW11\FreeMASTER_control\...
-
Page 8: Application Control
Quick Start Guide APPLICATION CONTROL 1. Click Motor 1 in the Motor Control Application Tuning tool(MCAT) tool tab menu to display the motor control page. 2. In case of pending faults, click the fault button Clear FAULT on theFreeMASTER MCATControl Page. 3. - Page 9 www.nxp.com S12ZVML-MINIBRD JUMPER OPTIONS JUMPER OPTION SETTING DESCRIPTION ECLK EVDD1/ECLK EVDD1 PS2/ USB OSBDM RxD1 J7 SCI PORT PS3/ USB OSBDM J7 SCI PORT TxD1 Short Enable Bootloader enable Open Disable...
-
Page 10: Warranty
