3. Panel Description

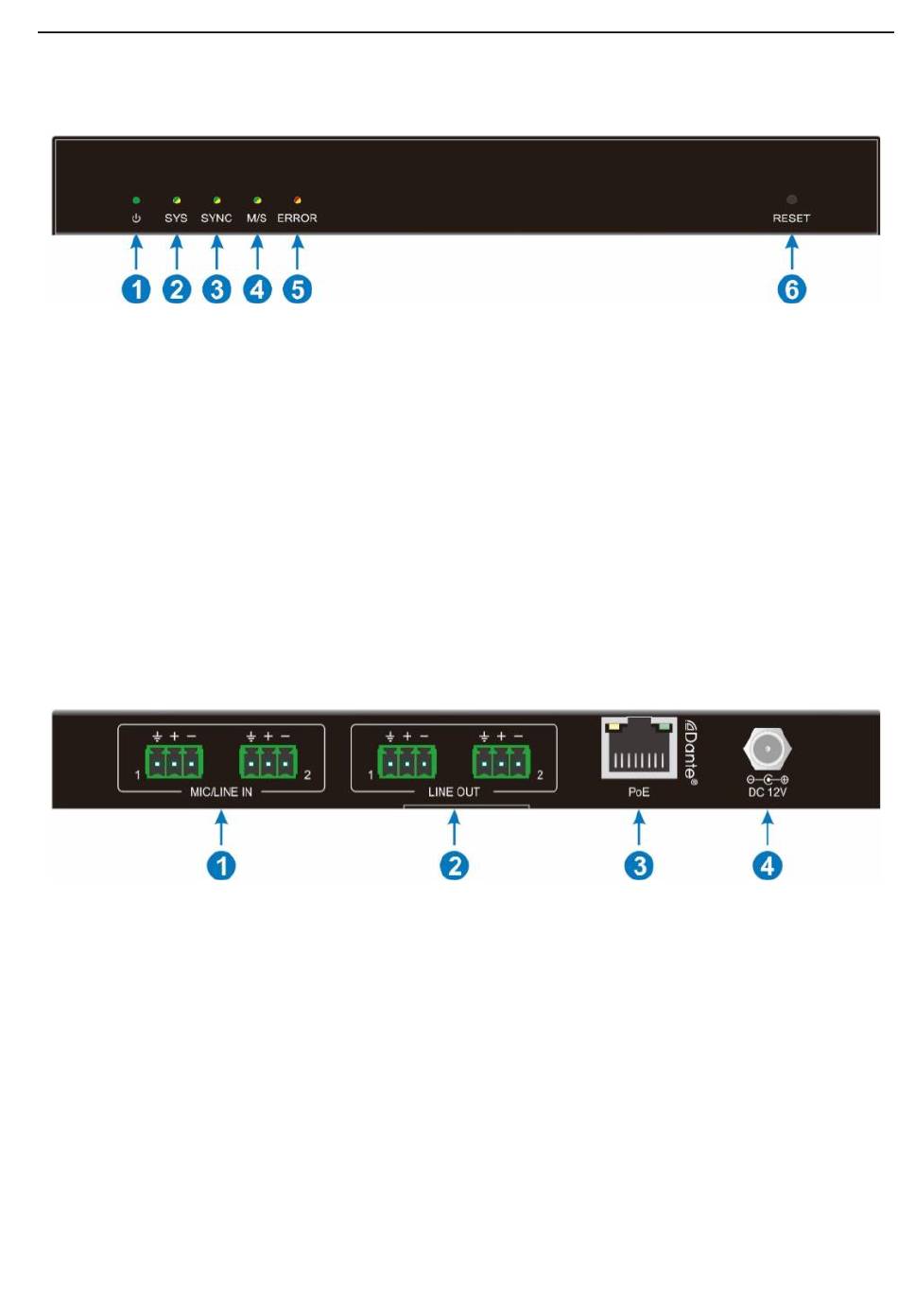

3.1 Front Panel

① POWER LED: Illuminates green when power is applied.
② SYS LED: Illuminates yellow when system starts, and green when system is ready.
③ SYNC LED: Illuminates green when the clocks are synchronized between master
and slave devices, and yellow when the clocks are out of sync.
④ M/S LED: Illuminates yellow when the unit works as master device, and green
when it is as slave master.
⑤ ERROR LED: Illuminates yellow when known errors occur, and red when unknown
errors occur.

3.2 Rear Panel

① MIC/LINE IN: 2 x Balanced audio input.
② LINE OUT: 2 x Balanced audio output.
③ Dante: Dante® Ethernet interface connector.
④ DC 12V: DC connector for DC12V1A power adapter connection.
