10 | Hardware Installation and Maintenance Guide for SG6000 Appliances
1

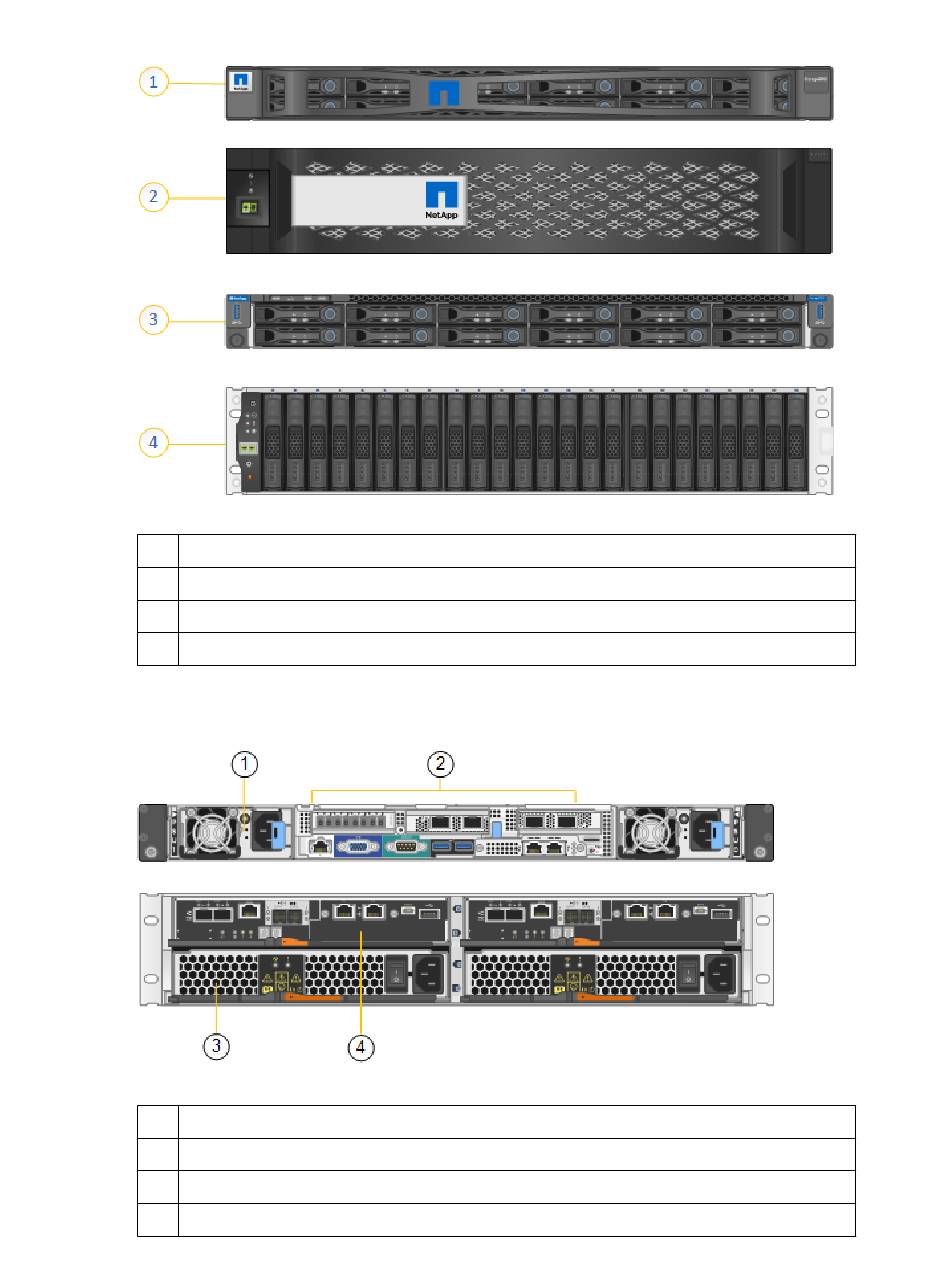

SG6000-CN compute controller with front bezel
2
EF570 flash array with front bezel
3
SG6000-CN compute controller with front bezel removed
4
EF570 flash array with front bezel removed
This figure shows the back of the SGF6024, including the compute and storage controllers, fans, and
power supplies.
1
Power supply (1 of 2) for SG6000-CN compute controller
2
Connectors for SG6000-CN compute controller
3
Power supply (1 of 2) for EF570 flash array
4
E-Series EF570 storage controller (1 of 2) and connectors
