Atdec AWM-W35 Installation Manual

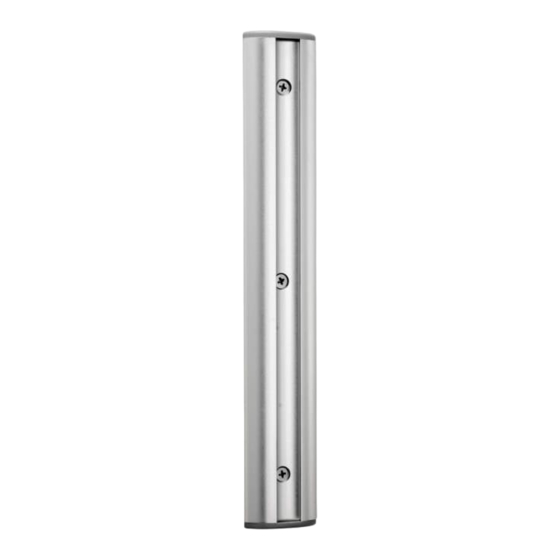

Wall Channel

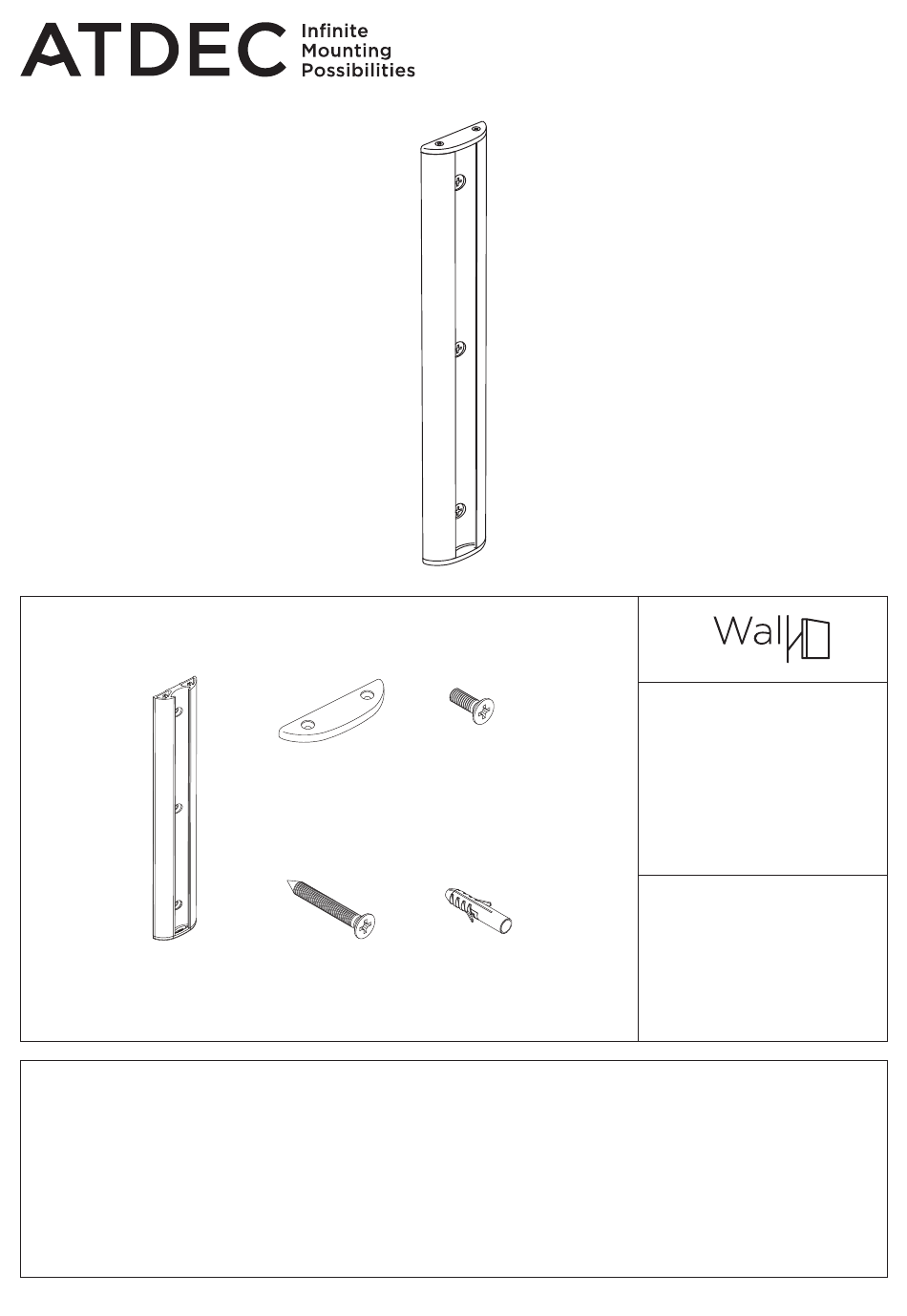

COMPONENT CHECKLIST

A
Wall channel
(x1)

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is not suitable for outdoor use.
! Do no use this product for mobile application.
! Wall Bracket only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it's safe to do so.
! This product is only compatible with AWM Series products, including: AWM-A13, AWM-A46, AWM-A71 and AWM-ADC.
! This product is not compatible with the AWM Heavy Duty Heads, including: AWM-LTH and AWM-LR.
B
Top Cap
Top Cap Screws
(x1) (x2)
D
M6 x 50mm Nylon
Countersunk Anchor (x3)
Screw (x3)
Installation Guide
C
E
AWM-W35

REQUIRED TOOLS

• Power drill
• Suitable drill bit
• Driver bit for
selected wall
fasteners
• Stud finder
• Spirit level

WEIGHT RANGE

0 - 12kg
(0 - 26.5lb)
Monitor weight should be within
the weight range of all modular
elements that make up the complete
monitor mounting solution.
AWM-W35 Page 1 of 2
