Wall Channel
COMPONENT CHECKLIST
A

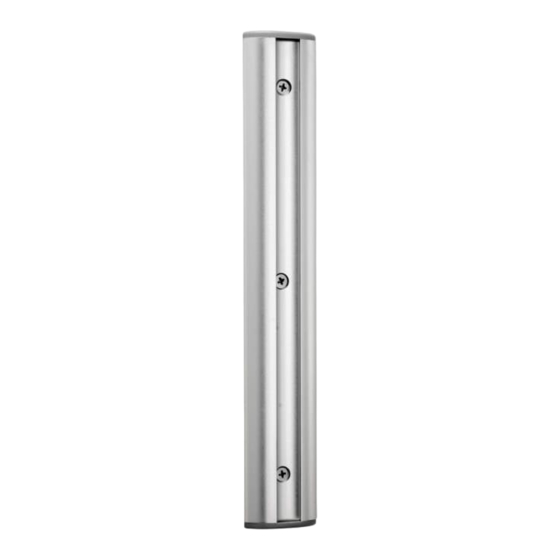

Wall channel
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with Atdec modular (AWM) products.
! The manufacturer accepts no responsibility for incorrect installation.
B
Top Cap
Top Cap
Screws
(x1)
(x2)
D
M6 x 50mm
Nylon
Countersunk
Anchor (x3)
Screw (x3)
C
E
Installation Guide
AWM-W35
REQUIRED TOOLS
• Power Drill
• 4mm (
/
") Drill Bit
5
32
• 8mm (
/
") Drill Bit
5
16
• Phillips Head Screwdriver
AWM-W35 Page 1 of 2
