Schematic Diagram - Linear Technology QuikEval DC1718A Manual

DEMO MANUAL DC1718A

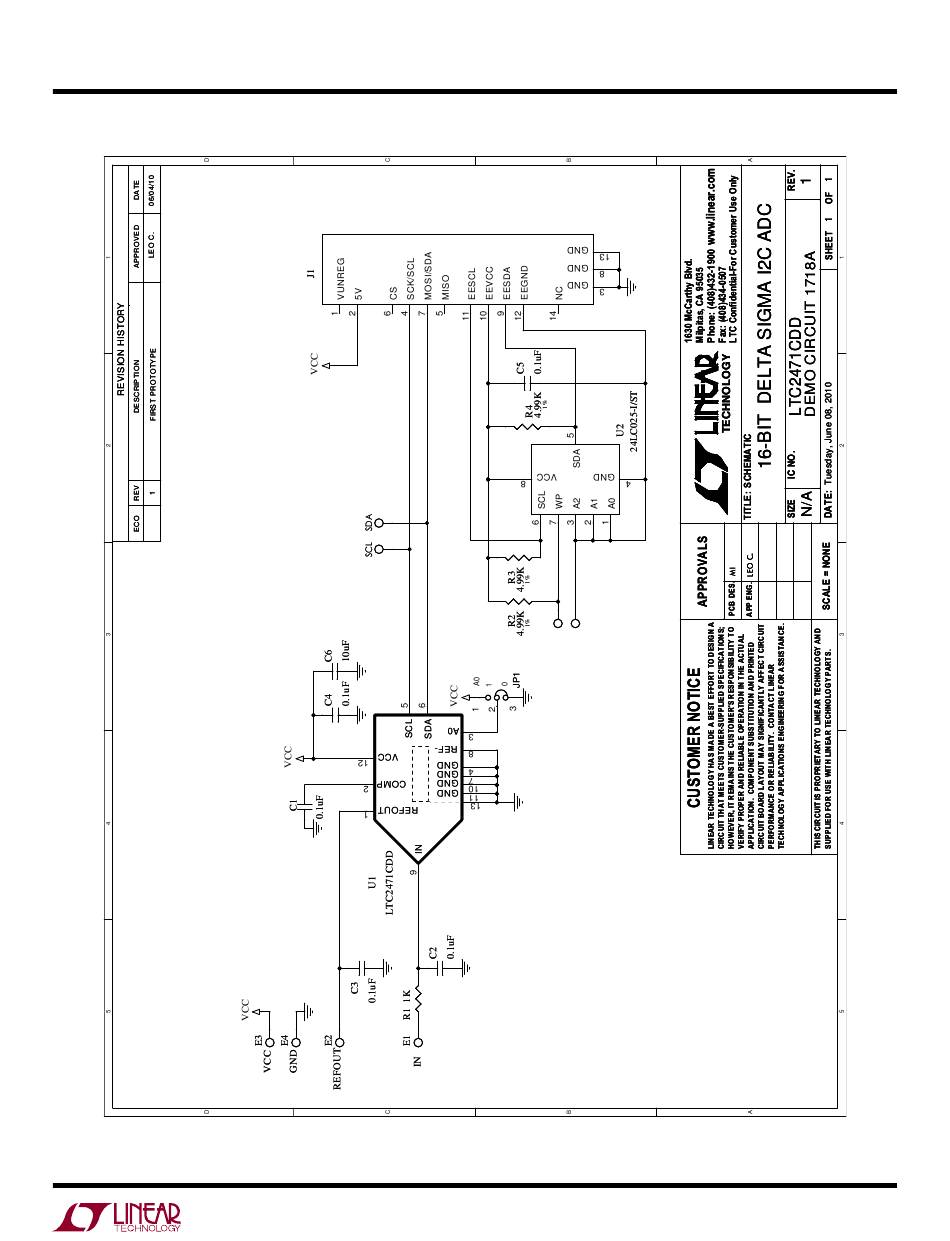

schematic Diagram

dc1718afb
